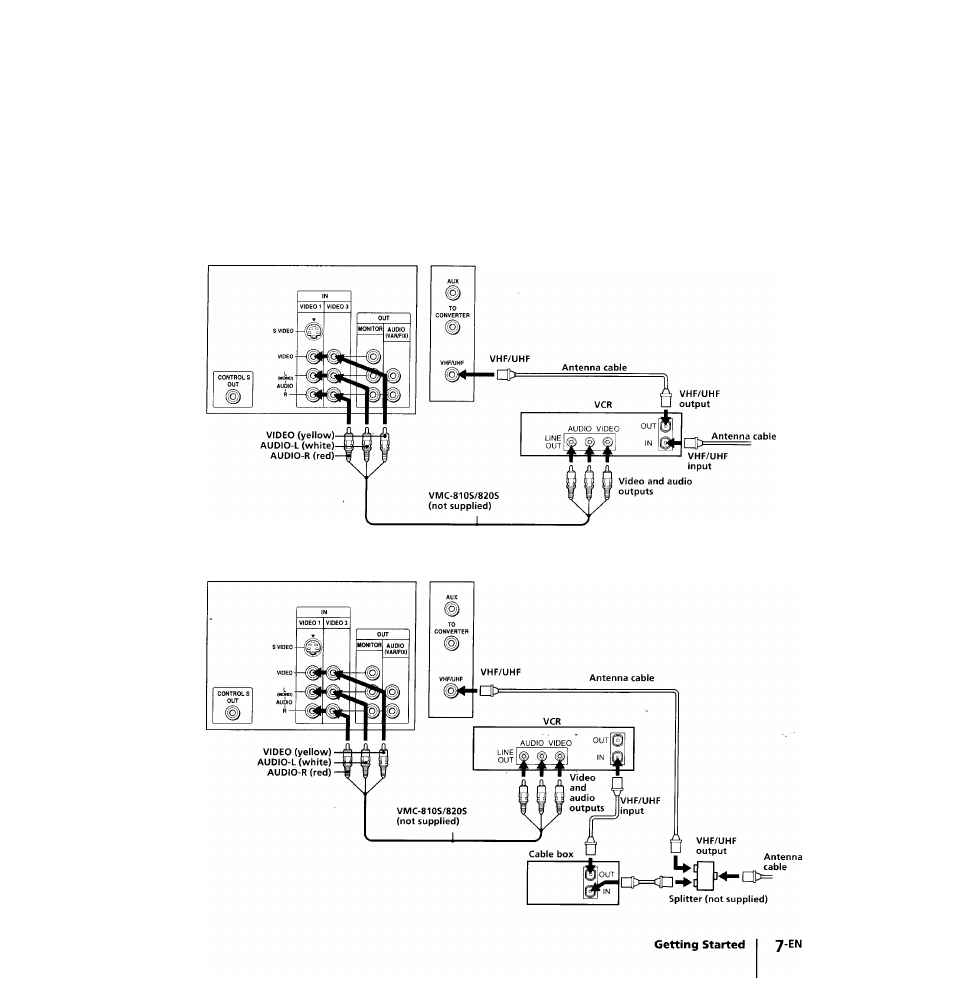

Connecting an antenna/cable TV system with a VCR
For details on connection, see your VCR instruction
manual.
Before making the connection, disconnect the AC power
cords of the equipment to be connected.
To a conventional VCR
Notes
• To connect a monaural VCR, connect the audio output of the VCR
to AUDIO-L (MONO) of VIDEO 1 / 2/3 IN on the projection TV.
Without a cable box
(Rear of projection TV)
After making these connections, you will be able to do
the following:
• View the playback of video tapes
• Record one TV program while viewing another
program
• Watch two TV programs at once using PIP
With a cable box
(Rear of projection TV)
