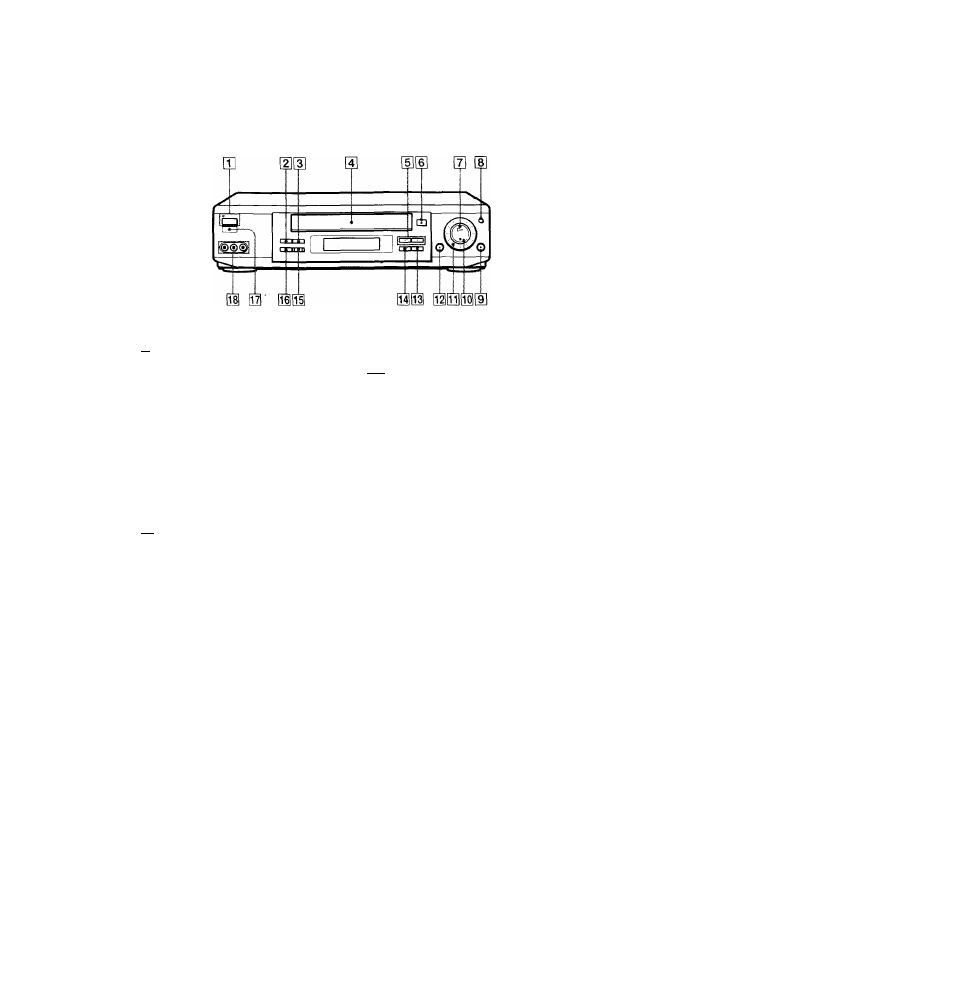

Index to parts and controls

Refer to the pages indicated in parentheses { ) for details.

Front panel

m POWER switch / indicator (60)

[

] SP (Standard Play)/EP (Extra Play)

button (55, 60)

[3]

TV/VIDEO button (56)

U] Tape compartment

[5]

CHANNEL/TRACKING+/-

buttons (55, 79)

[U ± EJECT button (53)

H] O PLAY button (52, 65)

[8l JOG button (66)

[9] # REC (record) button (55, 82)

51 ■ STOP button (82)

ITi] Shuttle ring (56, 66)

m I I PAUSE button (82)

FF (fast forward) button (53, 65)

REW (rewind) button (53, 65)

51 EASY SET UP button (11,14,17, 20,

24, 27)

51 INPUT SELECT button (55, 57)

] Remote sensor (5)

LINE-2 IN VIDEO / AUDIO L / R

jacks (81)
