Step
3: Hookups (continued)
Hookup 3
Pages 16 to 18 |
Antenna hookup
Make the following connections if you're using an antenna (if you don't
have cable TV).
□ Use this hookup if you're using:
• VHF/UHF antenna (you get channels 2-13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UFIF antennas

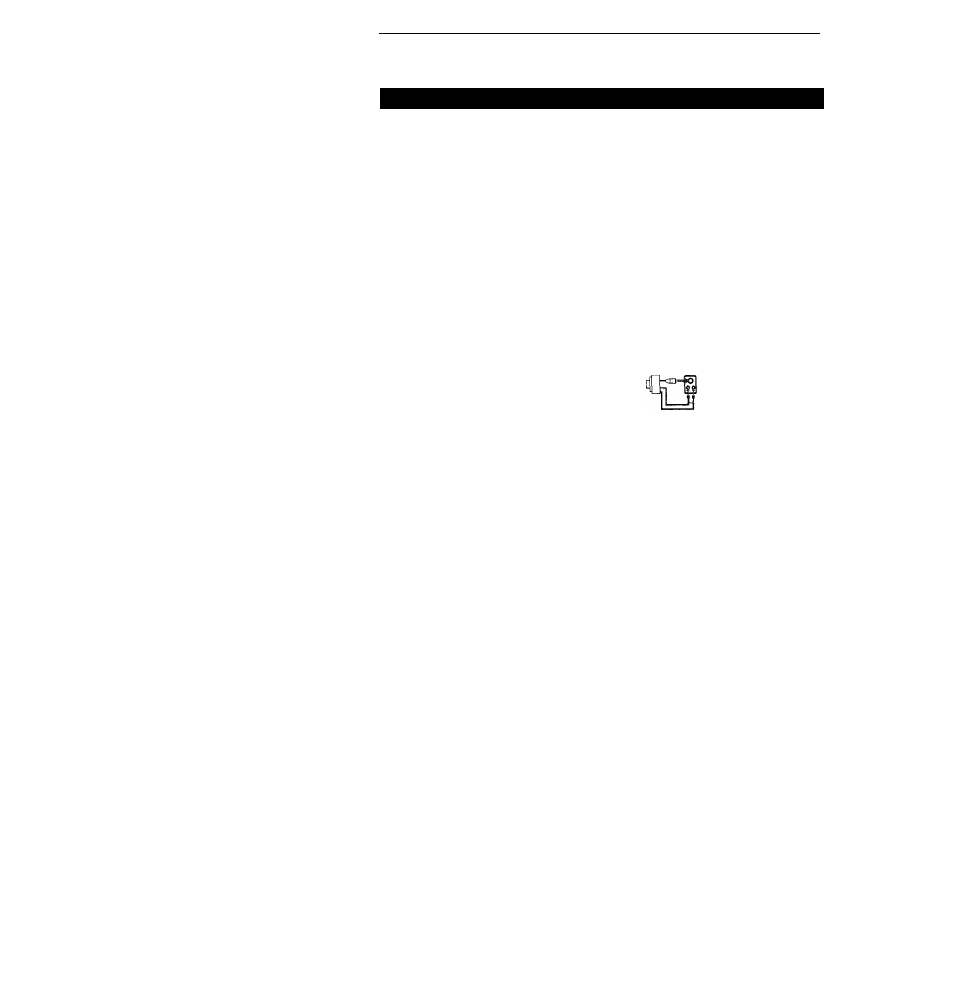

Rear of TV
VHF/UHF
—««g A Match the type of
connector on your
TV: A, B, or C.
VCR
VHF
UHF
VHF
UHF
10 Use this hookup if you're using a VHF-only antenna (you get
Rear of TV
VHF/UHF
channels 2-13 only)
VCR
ti
- -
Match the type of
■
—A connector on your
TV: A, B, or C.
VHF
■
B For connector types
UHF
VHF
B and C, no UHF
connection is
required.
—g'
UHF
If you cannot connect your antenna cable to the VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external
antenna connector (not supplied) so you can connect the cable to the VHF/UFIF IN
connector. If you have separate cables for VHF and UHF antennas, you should use a
U/V band mixer (not supplied). For details, see page 84.
