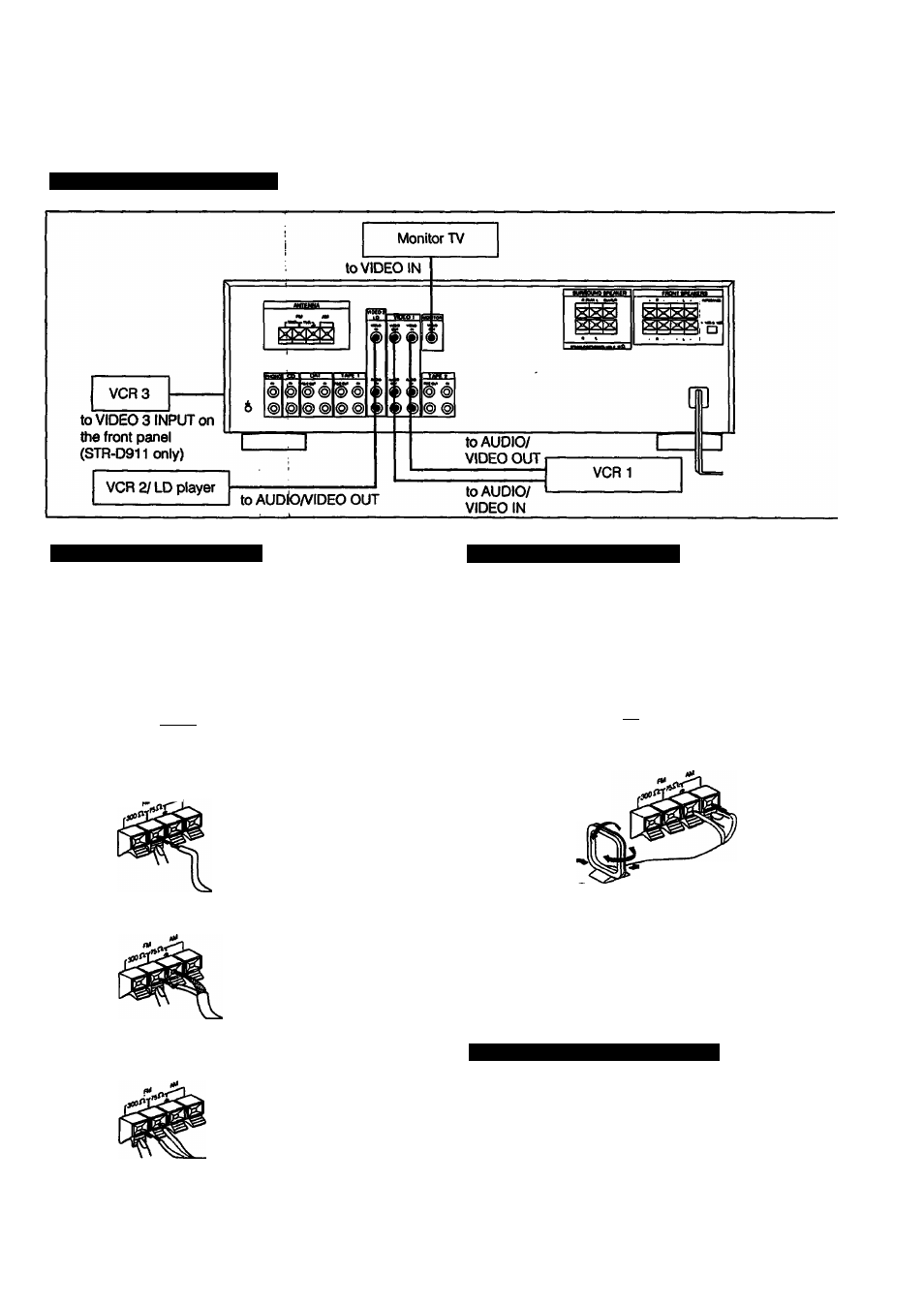

Connecting Video Equipment
Connecting an FM Antenna
Connecting an AM Antenna
Though the wire antenna is supplied with this unit, the
higher quality sound will be obtained with the 75-ohm
coaxial cable.
000
»« »
lololooloaol
o e o o
loowol
4
For normal use
KL.
Supplied wire
r antenna
For higher quality sound
75-ohm coaxial cable
(optional)
300-ohm twin-lead
(optional)
The AM broadcast is enough received with the supplied AW.
loop antenna. However, the connection of insulated wire is
also available for areas with difficult AM reception.
0»
Piolo oteolol
oo 00
9C
4
Supplied AM
loop antenna
'Adjust the
-«> direction.
For areas with difficuit AM reception
In areas with troubled reception, connect a 6 to 15-meter
(20 to 50-feet) insulated wire to the AM antenna terminal.
Extend this out of doors if possible, keeping the greater
portion horizontal.
(There is no need to disconnect the supplied antenna.)
Connecting the Antenna Ground
To prevent hum, connect the ground wire to ANTENNA
ground terminal (
t
J
t
).
When an outdoor antenna is installed, be sure to connect
the ground wire for lightning protection.
