Sony STR-DE345 - Manual

STR-DE345
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT: POWER
REQUIREMENTS:
POWER
CONSUMPTION: Dolby Digital
Receiver
17" x 5 3/4" x 12"
Approx 16 lbs
120V
60H
250
Watts
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .

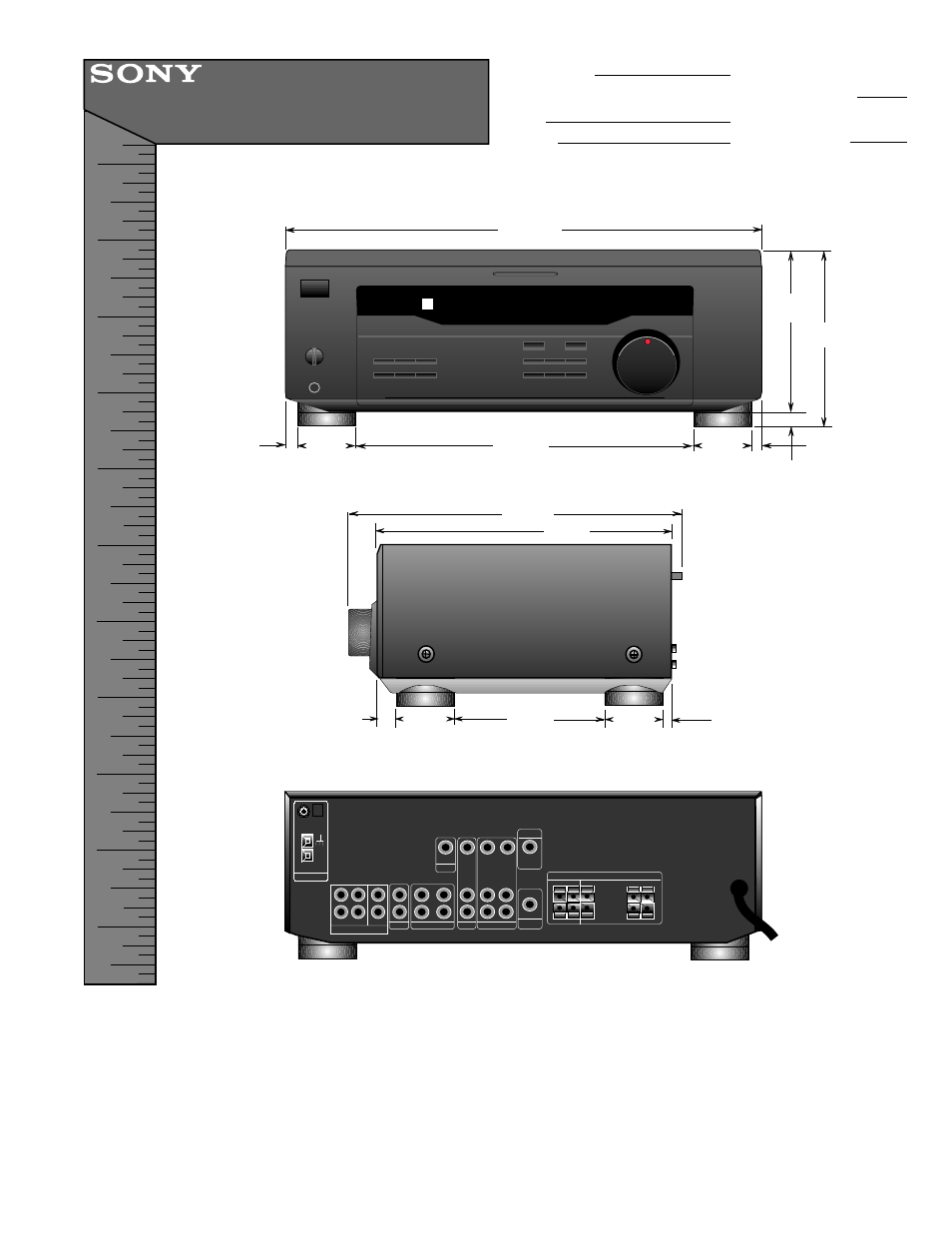

FRONT VIEW
SIDE VIEW
5 3/4"
5/8" 12 1/4 " 1 3/4 "
1/2"
5 1/4"
5/8"
17"
R FM102.7MHz A3
1 3/4 "
RM-U303 REMOTE CONTROL
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com
ANTENNA
COAXIAL
VIDEO
AM.
FM
SUB
WOOFER
CD MD/TAPE
5.1 INPUTS
SUB
WOOFER FRONT REAR
CNT
TV/SAT
MONITOR
VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
AUDIO OUT
1 3/4 " 1" 5/8" 5" 1 7/8 "
12 "
10 1/2"
BACK VIEW
FRONT REAR CENTER
8 -16 ohms SPEAKERS
5.1CH
VIDEO IN
