Identifying the Operational Parts

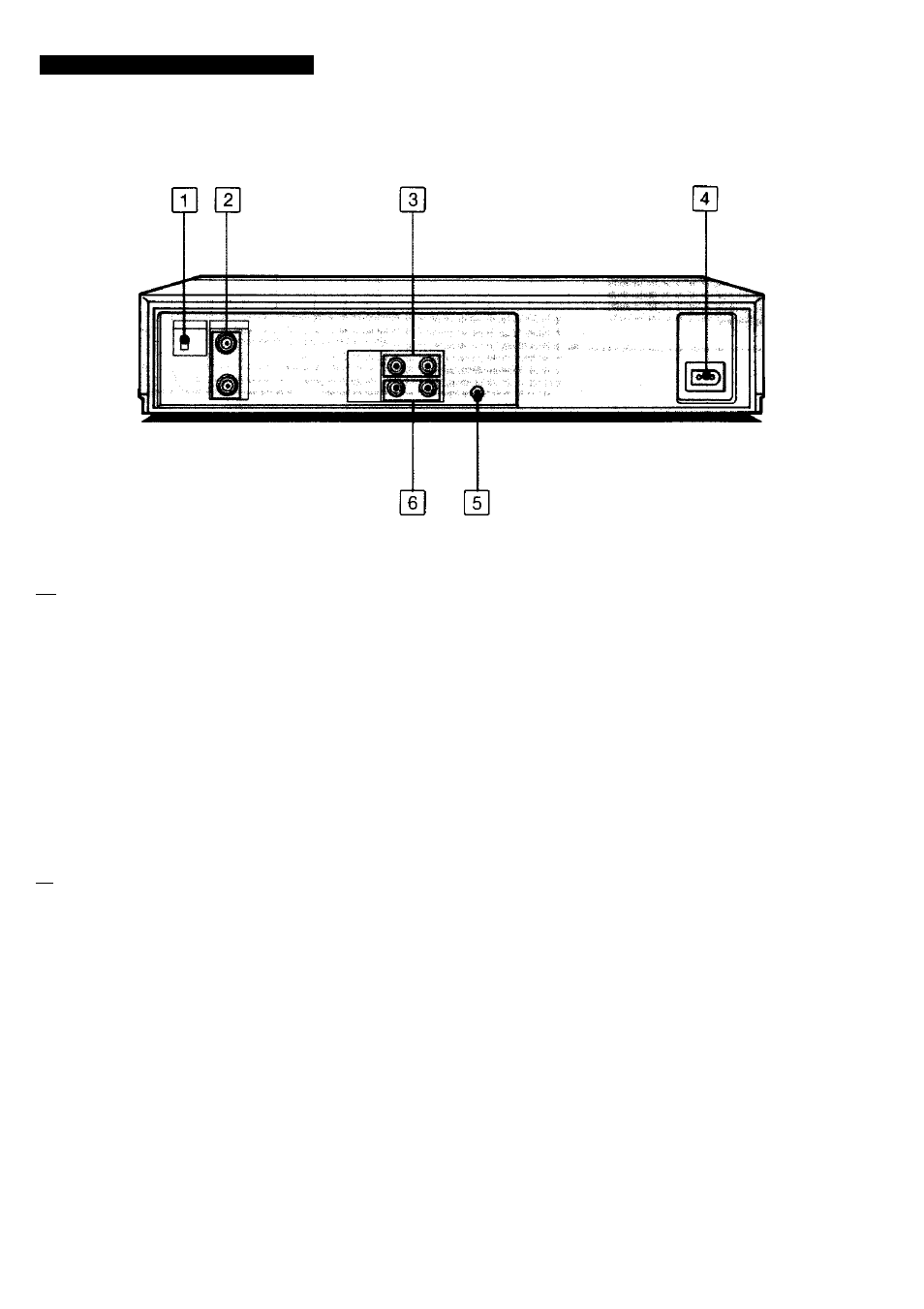

Rear Panel

pT|

RF UNIT selector (page 19)

Use to select the channel for VCR playback, 3 CH or

4 CH, whichever is not active in your area.

VHF/UHF IN/OUT connectors (F-type) (page 13)

Connect to the VHF/UHF connectors on your TV
referring to the “Connections” section.

LINE IN 1 VIDEO and AUDIO jacks (phono type)
Connect to the video/audio output jacks of another

VCR.

AC IN jack
Connect the supplied AC power cord. Then connect

the AC power cord to the wall outlet.

[s] CONTROL S IN jack (mini type) (page 56)

Connect to the CONTROL S output jack of another

Sony product for systematic operations such as
synchronized editing.

LINE OUT VIDEO and AUDIO jacks (phono type)

(page 17, 55)
Connect to the video/audio input jacks of another

VCR.
