Connections
In order to watch the playback picture on the TV screen
and to receive TV programs on this VCR, the VCR and
the TV receiver must be connected properiy. The
connection between the two units varies depending upon
the type of TV receiver and antenna that you have. We
wiil show you some typicai ways to make connections
with the suppiied accessories. Before operating the unit,
go through this section and make the correct
connections.
Before You fogin...
• Turn off the power to the VCR and the TV.
• Do not connect the AC power cords untii ali of the
connections are completed.
• Make connections firmly. Loose connections may cause
picture distortion.
• If your TV does not match the three examples
below...
Consult your nearest Sony dealer or qualified
technician.
First Check Your TV
If your TV does not have video and audio input jacks
Check the antenna terminals on your TV
If your TV has video and
audio input jacks
75-ohm VHF/UHF antenna terminal
VHF/UHF

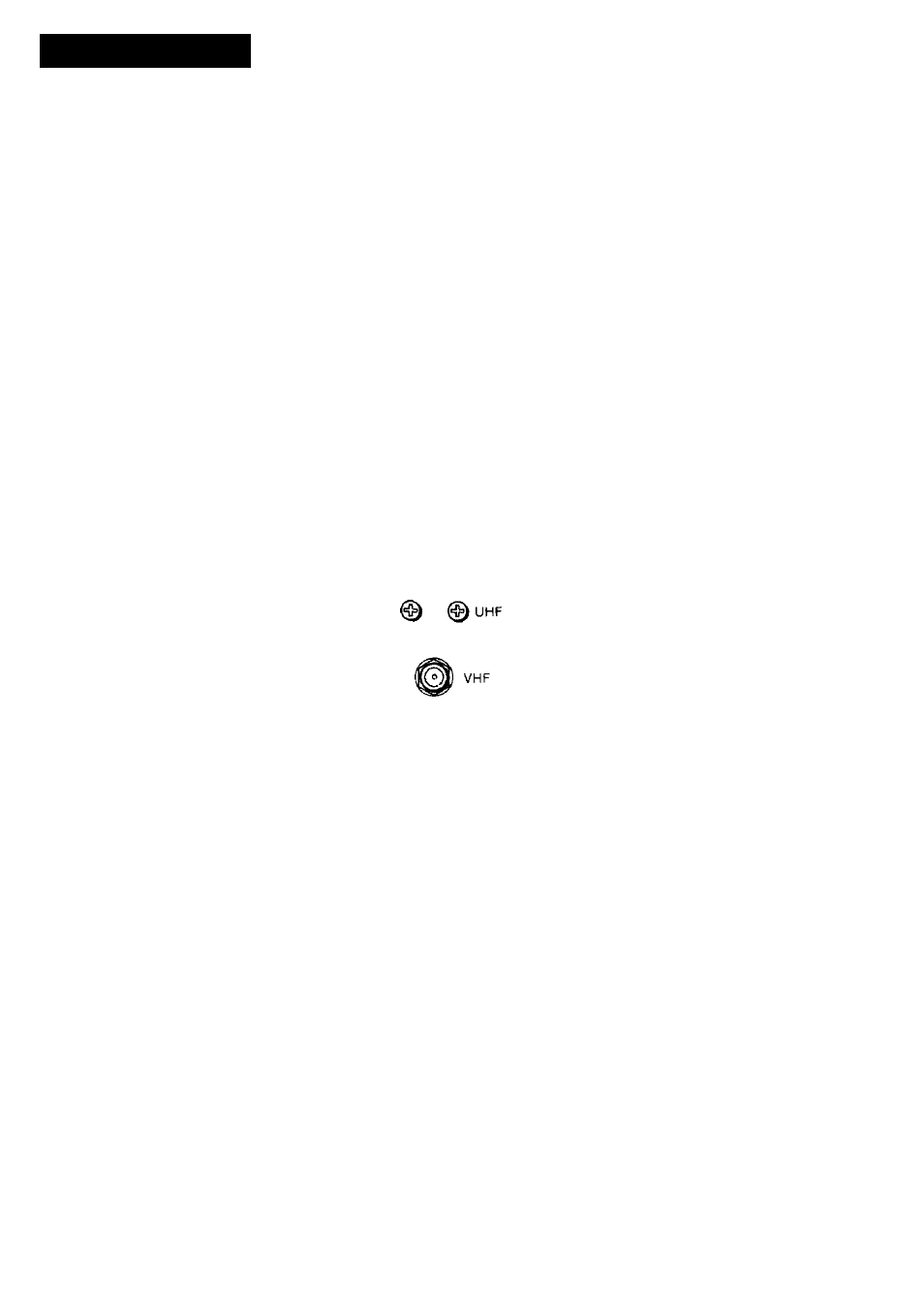

VHF and UHF separate antenna
terminals
Yellow ^ VIDEO
Black ^ AUDIO
Go through “Connection Examples 1 to 5” to find the appropriate
connections.
Then read “Setting the RF Unit” to view the playback picture of the VCR
on the TV.
You can enjoy a better quality
picture by connecting the
VCR and TV via these jacks.
Go to "Connection Example
6
.”
Caution
Connections between the recorder VHF/UHF OUT connector and the antenna
terminals of a TV receiver should be made only as shown in the instructions.
Failure to do so may result in operation that violates the regulations of the Federal
Communications Commission regarding the use and operation of rf devices.
Never connect the output of the recorder to an antenna or make simultaneous
(parallel) antenna and recorder connections at the antenna terminals of your
reciever.
