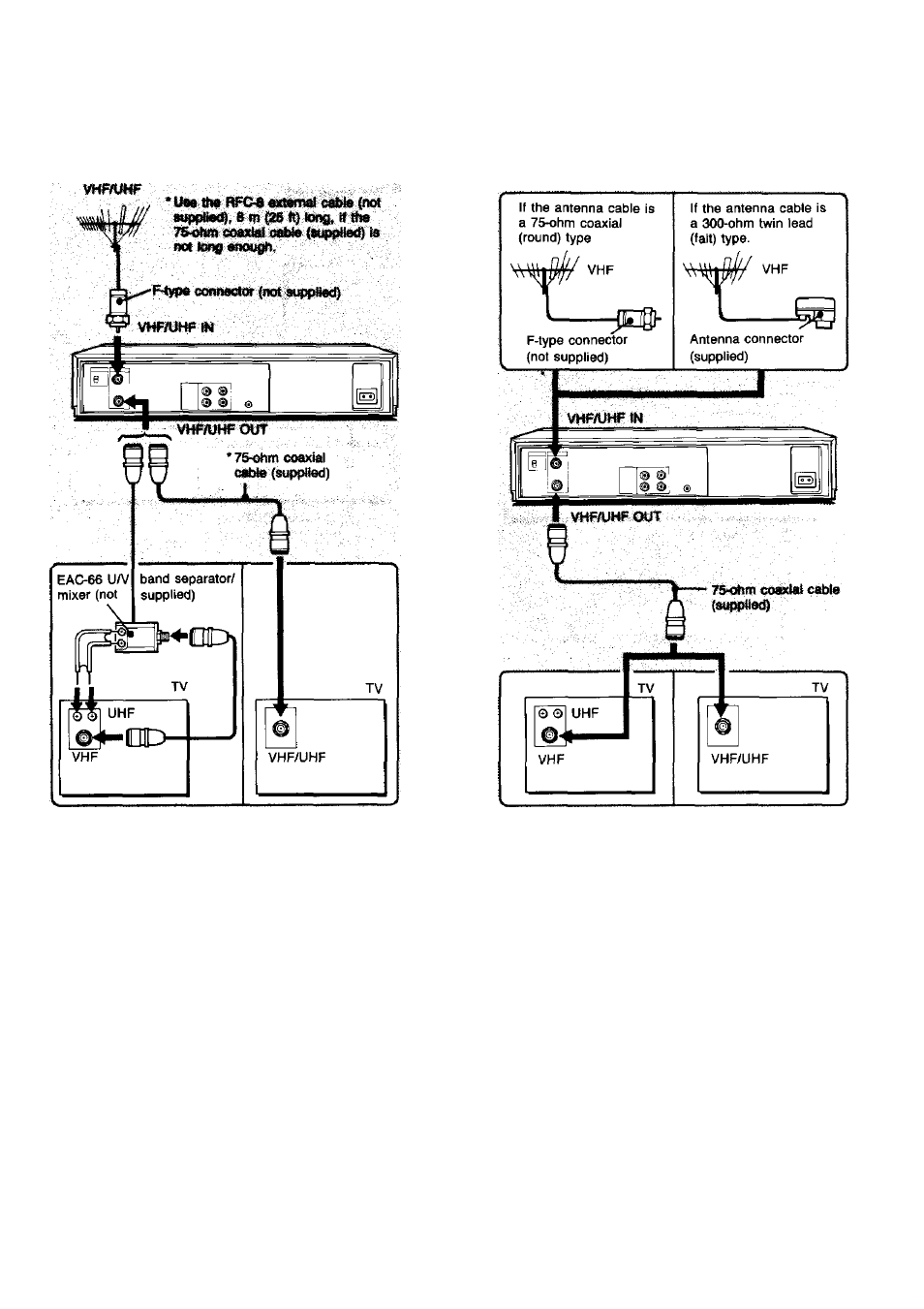

Cean^ton Exnnpie
1
— To Connect a
ComUnaHon VHF/UHF Antenna
ConiM^ton Example 2 To OMvwct a VHF
Antenna Only
1
2
Disconnect the TV antenna cable from the TV
receiver and connect it to the VCR.
Connect the VCR and the TV.
If the TV has a single terminal for the VHF/UHF
antenna:
Use the 75-ohm coaxial cable (supplied).
If the TV has separate antenna terminals for
VHF/UHF:
Use the EAC-66 U/V band separator/mixer (not
supplied).
How to attach the U/V band separator/mixer and the
F-type connector
See pages 18 and 19.
H Disconnect the TV antenna cable from the TV and
' connect it to the VCR.
If the antenna cable is a 75-ohm coaxial (round)
type.
Use the F-type connector (not supplied).
If the antenna cable is a 300-ohm twin lead (flat)
type:
Use the antenna connector (supplied).
O Connect the VHF/UHF OUT on the VCR and the
^ VHF IN terminal on the TV with the 75-ohm
coaxial cable (supplied).
How to attach the antenna connector and the F~type
connector
See pages 18 and 19.
13
