Frequency allocation of the hi-fi system
w
1.5MHZ I 7MHZ Л2МНг 5 4MH2 MHZ
Hi-Fi Stereo System
On the 8mm video standard track the sound is
recorded/played back in hi-fi monaural. On this
camcorder, an additional hi-fi stereo sound can
be recorded on the standard track.
The hi-fi stereo sound is recorded as L-r-R on
the 1.5 MHz carrier and L-R on the 1,7 MHz
carrier in FM as illustrated. (A-1) This method
was adopted to maintain compatibility with the
conventional hi-fi monaural sound.
When playing back the tape recorded in this
hi-fi stereo system, a matrix circuit is used to
produce the L and R stereo sounds separately.
When a conventional hl-fl monaural model is
used to play back a tape recorded by this
camcorder in hi-fi stereo, the playback sound
will be in a L-i-R monaural sound. This is
because the monaural models will play back
only the sound recorded in the 1.5 MHz carrier.
The hi-fi stereo system of this camcorder
enables you to enjoy a live stereo sound
atmosphere.
Compatfbiitty with the conventional 8 mm video
format
When you playback a tape recorded in stereo
hi-fi on a conventional 8 mm video equipment,
the sound will be in monaural.
(B-3)

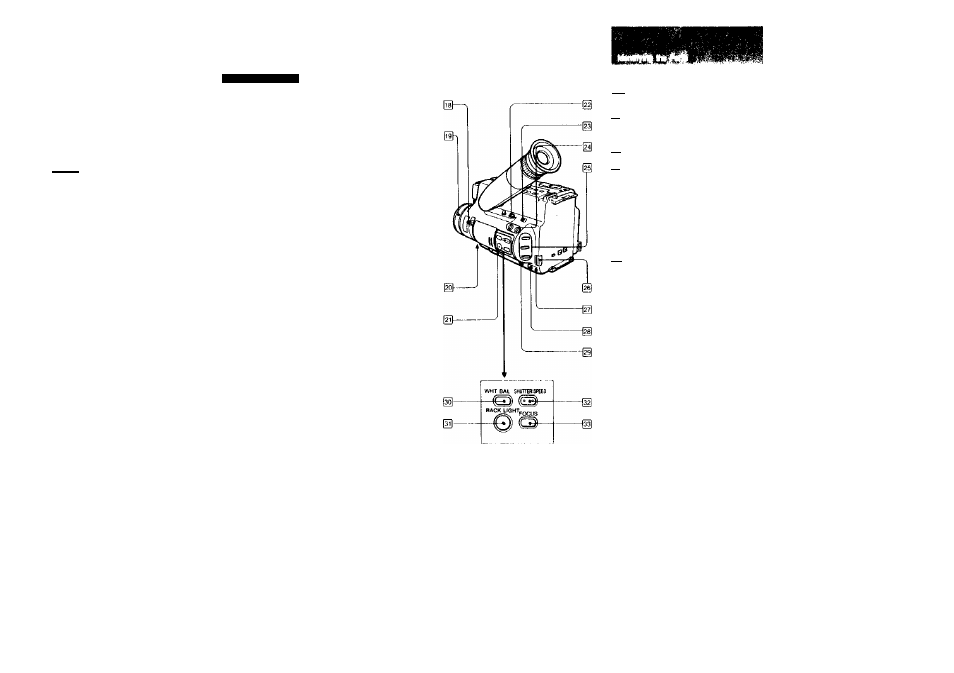

f i s j Zoom lever ф, ф
Macro set button ф
|l9| Focus ring ф
FADER button ф
fzi} Lithium battery compartment ф
Щ REC startfstop button Ф
Use when recording in the low position.
H EDTT switch Ф
Normally set to the left position. When
editing tapes, set to EDIT.
|2^ DATE and TIME buttons
Press to display or turn off the date or
time.
|25] Superimpose buttons ф
MEMORY button
COLOR/MODE button
SUPERIMPOSE button
ВАТТ (Battery efect) knob ф
PHONES (Headphones) jack (stereo
mini-jack)
[2^ C REMOTE control jack (stereo mini-
mini-jack)
Connect a wired remote control unit, an
editing controller, or other equipment here.
(H Hl-R SOUND swHch ф
Set to the appropriate position when
playing back the tape.
WHT BAL (whtte balance) button ф
BACK LIGHT button ф
(32| SHUTTER SPEED button ф
Used to select the shutter speed.
FOCUS button
Used for manual focusing.
About C (LANC)
C stands for Local Application Control Bus
System. The C connector is used (or controlling the
tape transport ol video equipment ar^d the
peripherals connected to it. This connector has the
same function as the connectors indicated as
CONTROL L or REMOTE.
