1. Remove stock foot-peg, foot-peg hardware, & foot-
peg hanger from frame.
2. Install provided Trail Tech foot-peg hanger, using the
oEM fasteners.
Note: Use thread locking compound and
manufacturer torque specification during
installation.
3. Re-install foot peg & foot-peg hardware.
4. Remove the stock side panel fastener and insert the
provided spring hanger tab (Fig. 1B)
5. Re-install the side panel fastener.
Note: Tighten down hand tight to start. Do not
tighten down to manufacturer torque specification
until spring is hung. Failure to do so may cause
your spring to bind or break during use!
6. Hook spring into spring hanger mounting tab as
shown in (Fig. 2).
7. Using safety glasses & a spring puller stretch the
spring and latch it onto the stand arm mounting point
(Fig. 2).
8. Tighten sub-frame fastener to manufacturer torque
specification.
010-ElV-135
tRail tEcH kickstands
Tech Support: 360-687-4530
[email protected]
5104-00/5104-10 & 5105-00/5105-10 kickstand installation
2009-2015 CRF450R, 2010-2015 CRF250R
5104-Pk contEnts:
5104-PK Parts Kit
Honda installation:
Honda CRF250R 2010-2013
Honda CRF250R 2014-2015
Honda CRF450R 2009-2015

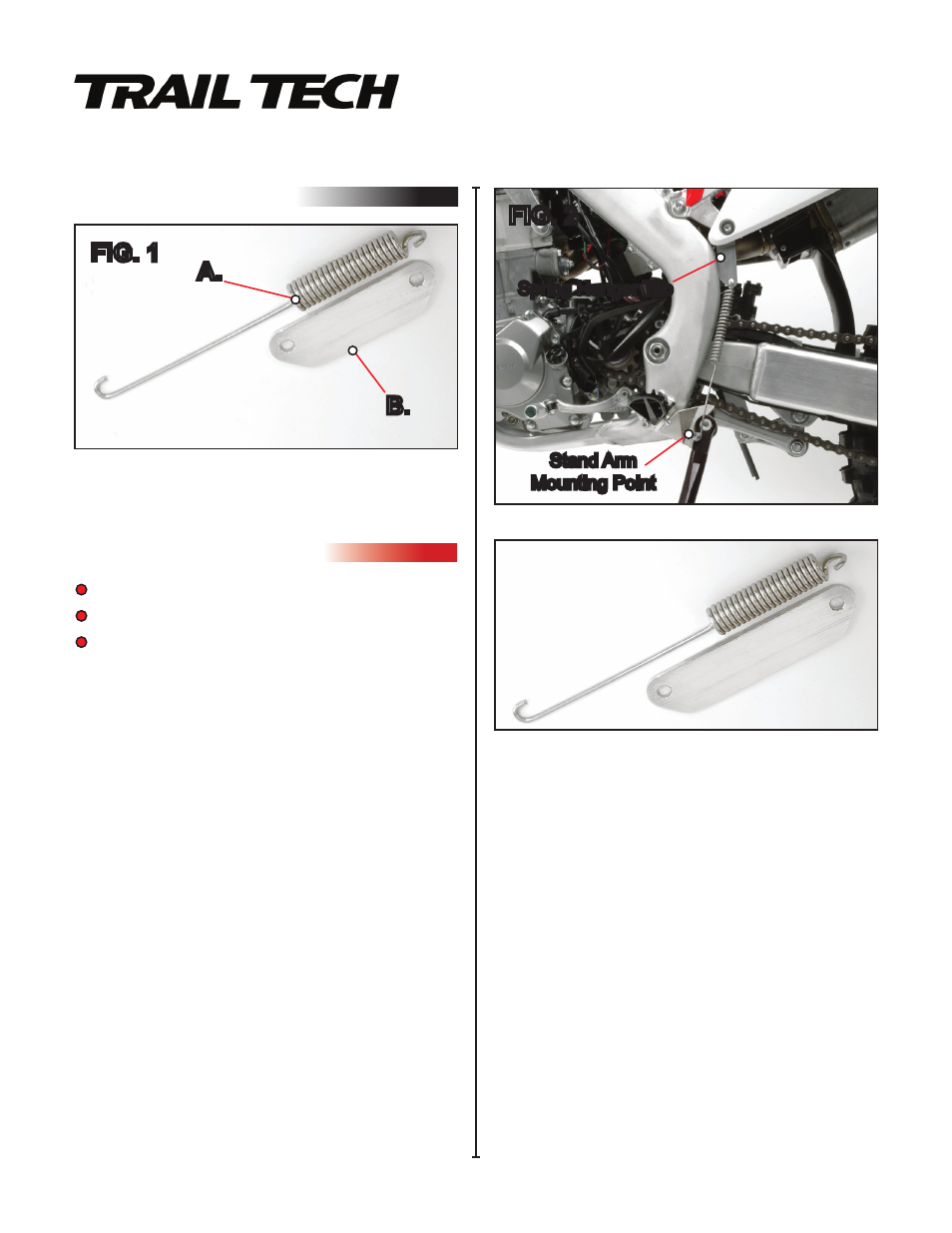

Kickstand Installed
a. 5905-04 CR/CRF Kickstand Spring.
B. Spring Hanger Tab.
B.
a.
FiG. 1
FiG. 2
Spring Hanger Tab
Stand arm
Mounting Point
LIMITEd WaRRanTY
Trail Tech inc. warranTS Trail Tech KicKSTanD proDucTS To be free
from DefecTS in maTerial anD worKmanShip unDer normal uSe anD if
properly inSTalleD for a perioD of Six monThS from DaTe of purchaSe.
if founD To be DefecTive aS menTioneD above, iT will be replaceD or
repaireD. ThiS Shall conSTiTuTe The Sole remeDy of The purchaSer
anD The Sole liabiliTy of Trail Tech inc. To The exTenT permiTTeD by
law, The foregoing iS excluSive anD in lieu of all oTher warranTieS or
repreSenTaTionS wheTher expreSSeD or implieD, incluDeD any limiTeD
warranTy of merchanTabiliTy or fiTneSS. in no evenT Shall Trail Tech
inc. be liable for Special or conSequenTial DamageS.
iMPoRtant: WEaR EYE
PRotEction WHEn HanGinG
sPRinGs!
note: after every ride it is important to check your kickstand
thoroughly for the following:
• Loose or damaged bolts
• Bent or damaged kickstand leg or bracket
• Damaged spring
damaged or broken parts can result in serious injury! If any part of
your stand has become damaged do not ride the machine! Contact a
factory trained technician or Trail Tech directly for service or repairs.
5105-PK Parts Kit
For use with 2014-2015 Honda CRF250R
