AC
AFTER INSTALLING A TRAIL TECH STATOR AND REGULATOR, ADD LIGHTS TO AC CIRCUIT.
- SEE NEXT PAGE FOR DC INSTALLS -
AC SYSTEMS

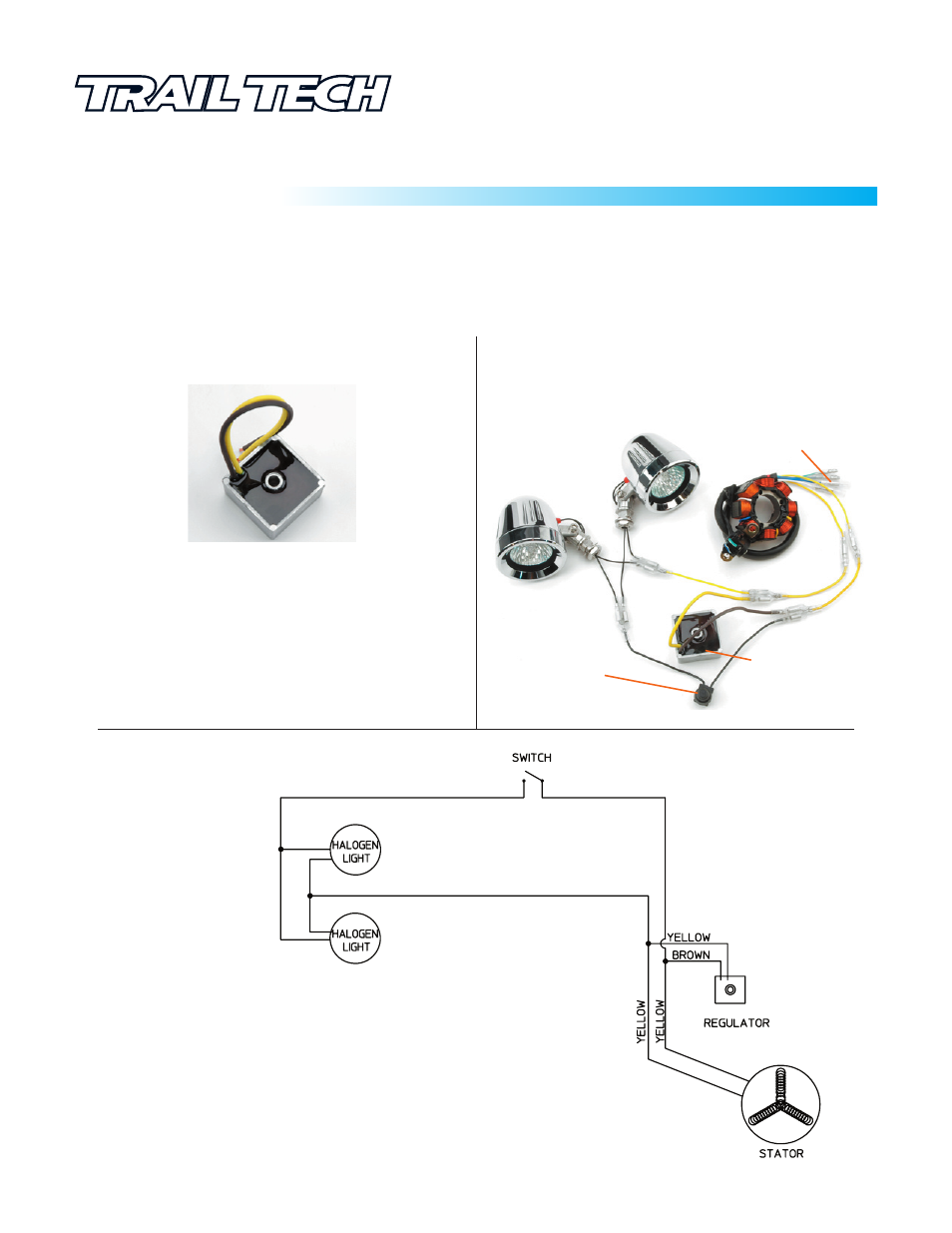

STEP AC1 - REGULATOR:
The model-specific
stator wires plug into
the stock wire harness.
12 Volt AC Regulator
wired in parallel.
On/Off switch wired
in parallel. Two
switches may be
used to control the
lights separately.
AC lights
wired in
parallel.
If installing an AC system, the circuit should be set up as below.
AC Regulator
Yellow Regulator Wire:
Black Regulator Wire:
Regulator Ground:
Power lead. Should intersect circuit
between the stator and lights.
Ground lead. Intersects circuit between
switch and stator.
The regulator creates a frame-ground when
bolted to the motorcycle frame.
AC SYSTEMS
STEP AC2 - WIRING:
AC circuits can use a regulator (regulator/rectifier not required.)
010-ELV-46
8300 | 8360
Tech Support: 360-687-4530
[email protected]
4-STK KTM ELECTRICAL SYSTEMS
AC INSTRUCTIONS:
AC CIRCUIT CONCEPT
DIAGRAM (GENERIC):
