Page 2

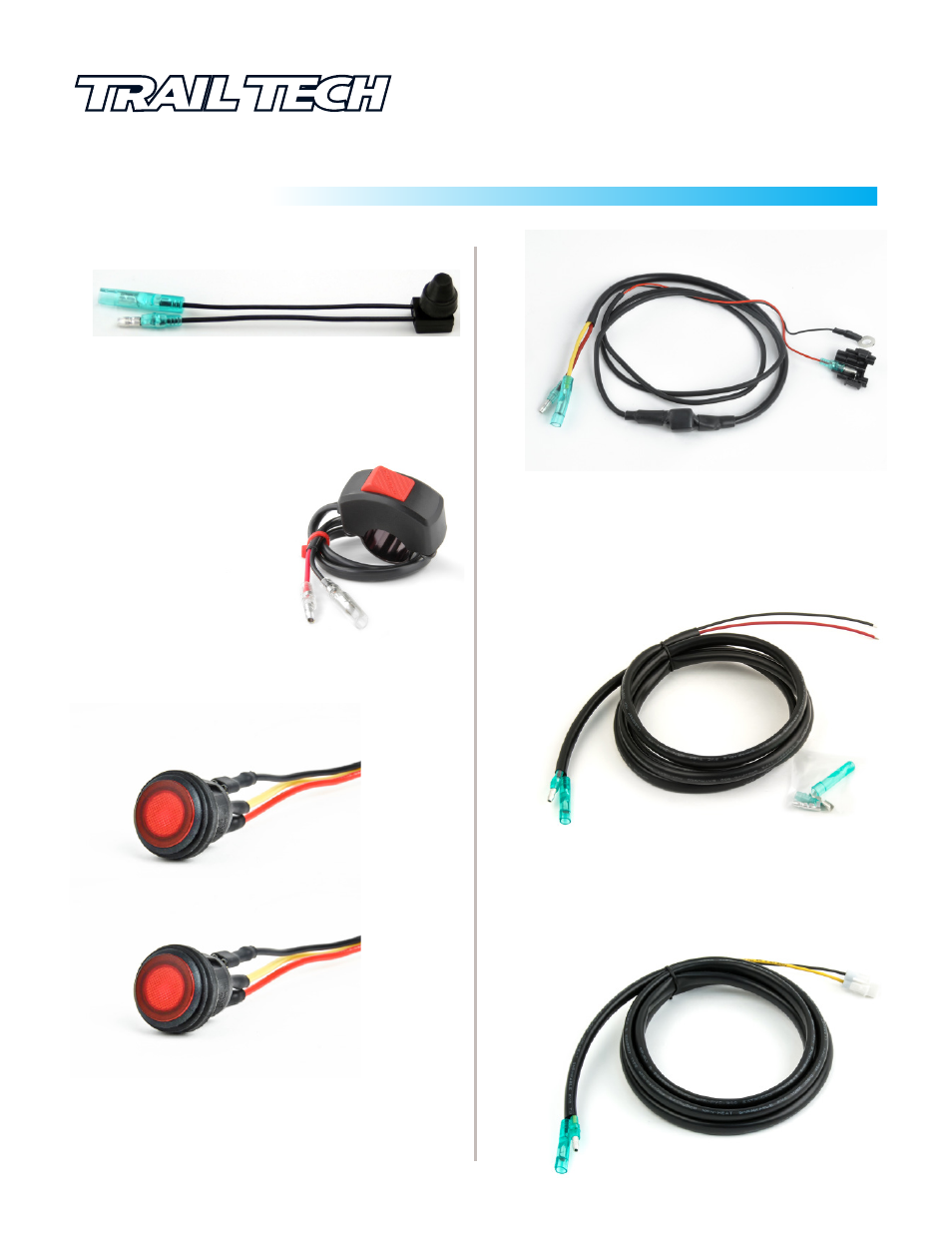

LIGHT WIRE HARNESS INSTALLATION
010-ELV-107
040-WH7
Tech Support: 360-687-4530
Handlebar Mounted Rocker Switch: 040-HBS-01
RELAY SWITCH:
040-LS-01
PUSH BUTTON SWITCH: 040-LS-B1
ON/OFF HANDLEBAR SWITCH:
CONNECT RED WIRE TO
HARNESS RED,
CONNECT BLACK WIRE TO
HARNESS YELLOW.
CONNECT FEMALE TERMINAL OF SWITCH INTO YELLOW
WIRE WITH MALE TERMINAL. CONNECT MALE TERMINAL
OF SWITCH INTO FEMALE TERMINAL OF RED WIRE.
SWITCH WIRING OPTIONS :
Lit Rocker Switch (600mm/23.5” lead):
040-LS-02
Lit Rocker Switch (1800mm/70” lead):
040-LS-03
Wire Ground (Pin 3/Black) directly to the negative terminal of
the battery or vehicle. Wire Power Out (Pin 2/Yellow) to the
yellow wire on harness. Wire Power in (Pin 1/Red) to the red
wire on harness.. (Drilling required)
Lit Rocker Switches
Wire Harness Extension with Bullet Connectors:
040-WH9
Used to add length to switch or lights.
(Except 70mm LED)
Wire Harness Extension with 3 Pin Connector:
040-WH14
(For 70mm LED only)
