7
INSTALLATION
CAUTION
● FUEL WARNING
With the nature of the product being with the fuel system, care is required to be sure that fuel is not
spilt or leaked during the installation. Be aware at all times the potential risk of fire and explosions.
■ Keep in mind your work environment before proceeding with the installation.
① A well-ventilated area.
② Be aware of potential fire risks (welders, grinders, electric motors etc.).
③ Confined areas that may collect fuel vapors.
■ Refrain from using anything that causes fire or sparks.
① Do not use any electrical equipment.
・ In general, do not use work lights.
・ When extracting fuel, do not use electrical pumps and plastic containers.
・ Do not use welders, heaters, grinders, drills & no smoking.
② Do not use anything that can cause sparks.
・Do not use anything like a hammer that could cause sparks.
■ Safety first.
① Have a fire extinguisher available at all times.
② To prevent static electricity.
・ Check that the floor is non slippery, spread a small amount of water on the floor
・ Ensure that the vehicle is earthed when changing fuel, especially around the fuel tank.
③ Use a cloth to contain the fuel. But do not mix the cloths that contain fuel with the ones which do not.
■ Best to perform the job when there is minimal fuel left remaining in the fuel tank.
■ Drain the remaining fuel from the piping and remove the drain hose.
■ Take care to not allow any unwanted grime or foreign material from
entering the fuel tank when performing the job.
(1) Please remove the gasoline in the fuel pipe.
① Remove the fuel pump's fuse.
② Start the engine.
③ After you have turned off the engine, check
the gasoline by cranking the engine 3-4 times.
④ Turn the ignition switch to the OFF position.
Then remove the negative terminal from the battery.

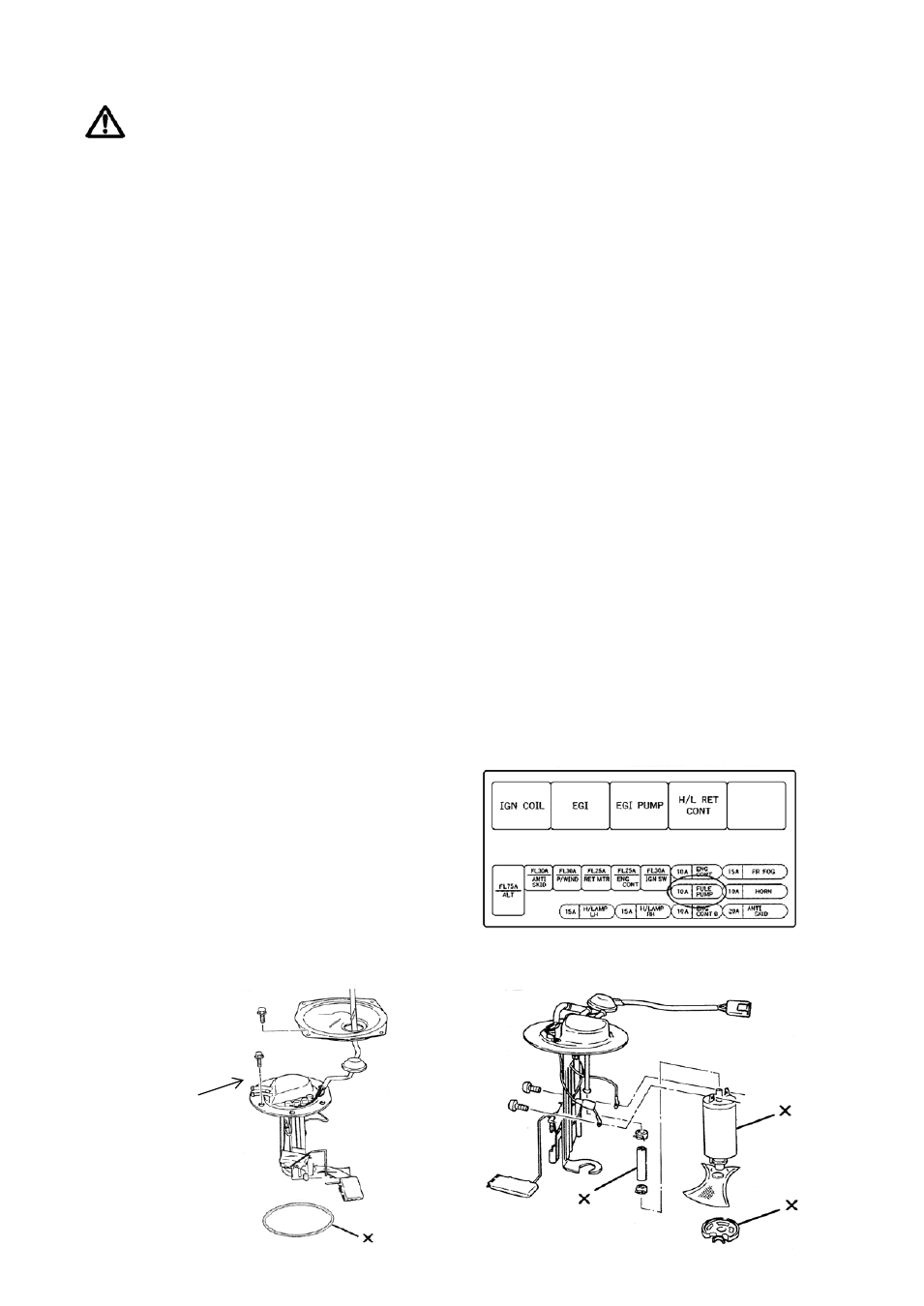

(2) Remove the bolt then remove the fuel gauge assembly.
Relay box in the engine bay (With the RPS13)
Replace the O-ring with a
new one when replacing the pump.
REMOVING STOCK
Make a mark to not
confuse the line engine
feed line with the
return line, before
disconnecting the hoses.
×Items marked with an
asterisks are not used
when installing the pump.
