Tomei Powered VACUUM TANK - Manual (Page 5)

5
INSTALLATION
1. Prepare for the install.
TOMEI
◎ Remove each of the PT 1/8 blind plugs attached to each Tomei individual throttle body
and install the male connector supplied in the kit.
OTHER BRANDS
◎ Drill holes in the PT 1/8 to the manifold of each cylinder throttle, after installing it.
Install the male connectors in all 4 throttles.
INSTALLATION REMOVAL
2. Mounting the Vacuum Tank
Fix the tank bracket to the vehicles body with the supplied nuts and bolts.
Fix the tank to the bracket with a zip tie.
3. Mounting the touch tube.
Match the distance of the male connector and the vacuum tank. Cut and install four touch tubes
that came supplied with the kit (Φ4mm). Take care not to bend or damage the hose.
CAUTION
■ Pay attention to the stock one way valve and make sure it's connected the right way to the brake booster.
REPAIR PARTS
In rare cases when you need to replace parts, the following itemized part numbers are listed below.
ITEM
OIL CONNECTOR
TOUCH TUBE
RUBBER HOSE 191167
PART NUMBER
191164
191166

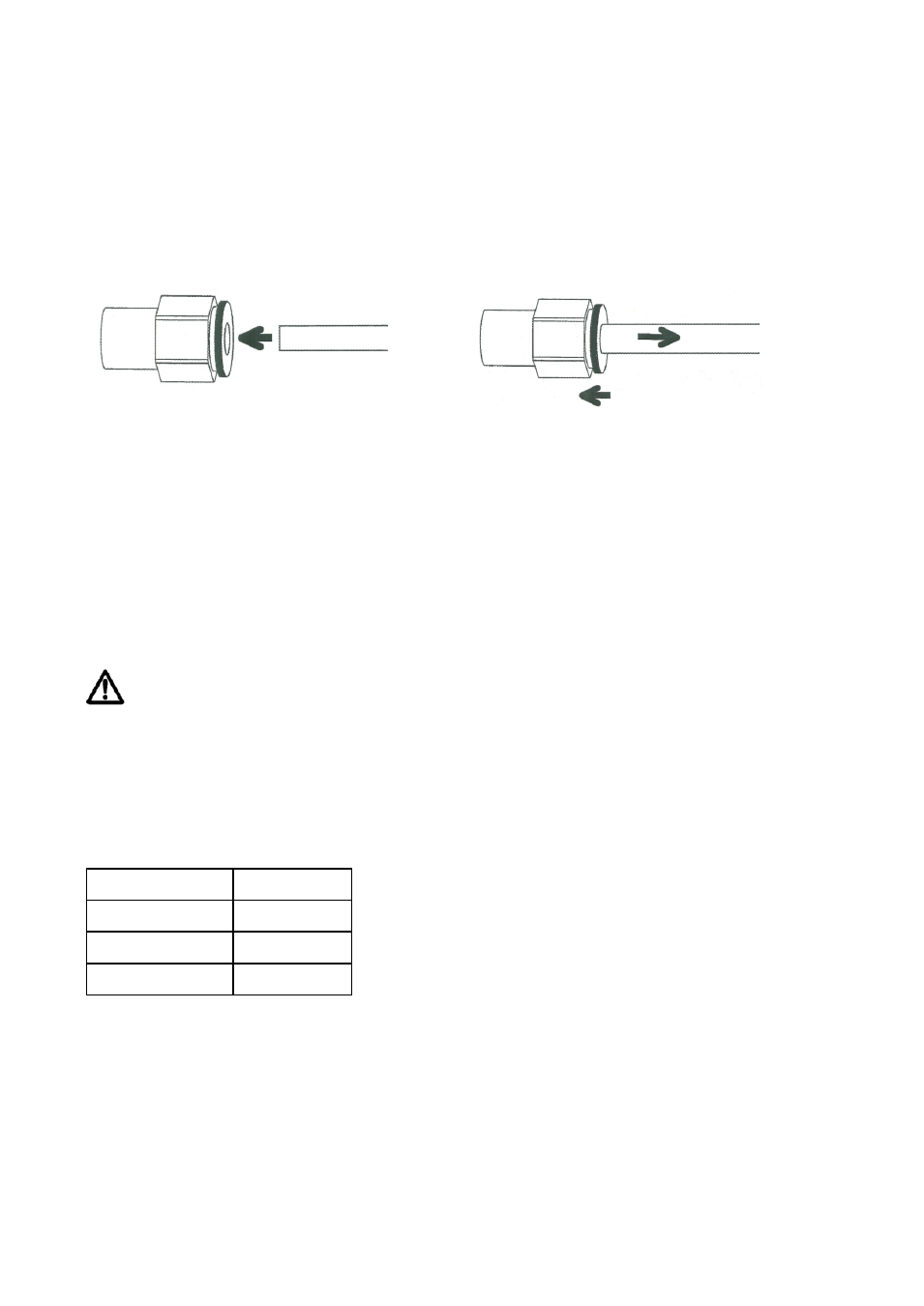

Fully insert it. Disconnect the hose while pressing on the black
part on the opposite side of the hose.
