CAUTION

■ This product is to be fitted by an experienced professional in a fully equipped workshop.
■ This product is to be fitted with the correct tools, protective & safety equipement. Failure to do so can lead to
  possible work hazards.
■ Tighten each bolt with the torque specified with a torque wrench. If the bolt(s) loosens, damage to the engine
may result. Additional problems may arise if the bolts are not tightened to the specified torque specs.

■ Check regularly that everything is tightened and secured properly.

SPECIFICATIONS

ENGINE

ITEM

MATERIAL

THICKNESS

NOTES

RB26DETT

THROTTLE GASKET

Metal

0.4mm

INTAKE MANIFOLD GASKET

Metal

0.38mm

EXHAUST MANIFOLD GASKET

Metal

1.3mm

3 Layers

4AG

EXHAUST MANIFOLD GASKET

Metal

0.8mm

A

INTAKE MANIFOLD GASKET

2.0mm

M SIZE PORT

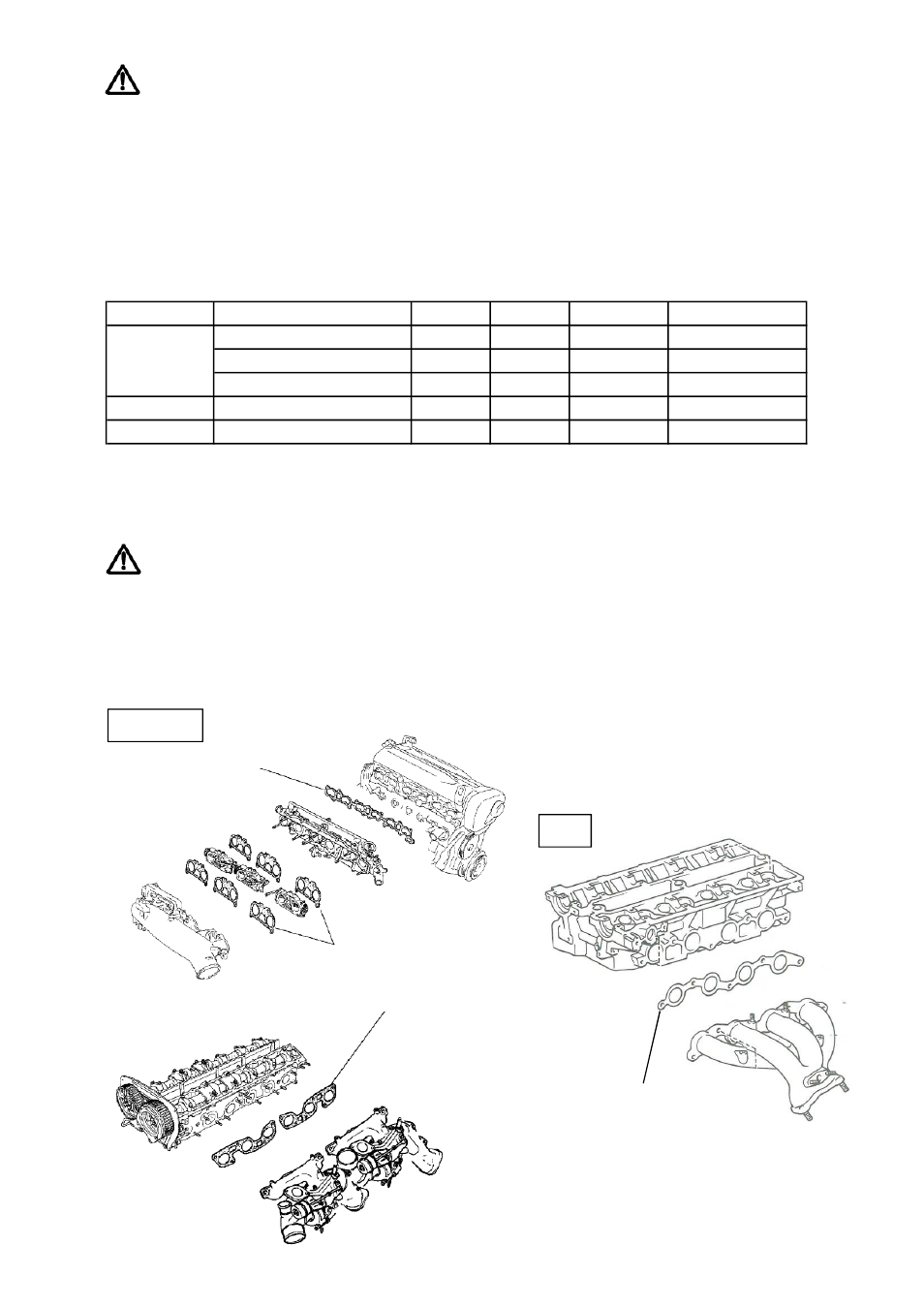

INSTALLATION POINTS & ILLUSTRATION

CAUTION

■ Clean the Gasket prior to installation.
■ Do not bend of deform the product.
■ Do not modify, process the Gasket sealing areas. If an attempt was made to enlarge the bore area

Bead

Bead

Grommet

TYPE

Bead

Bead

3

■ Do not modify, process the Gasket sealing areas. If an attempt was made to enlarge the bore area
of the Gasket, it will degrade the Gaskets sealing capability, or damage it entirely.
■ Install with the concave portion of the bead, facing the cylinder head side (main body

of the engine).

RB26DETT

INTAKE MANIFOLD GASKET

THROTTLE GASKET

EXHAUST MANIFOLD GASKET

4AG

EXHAUST MANIFOLD GASKET

3
