30” PEDESTAL FAN
© 2014, Pinnacle Products International, Inc. 18 HVF Air Circulator User’s Manual
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
Replacement Parts
1
2
3
4
5
6
7
8 9
1
10 11

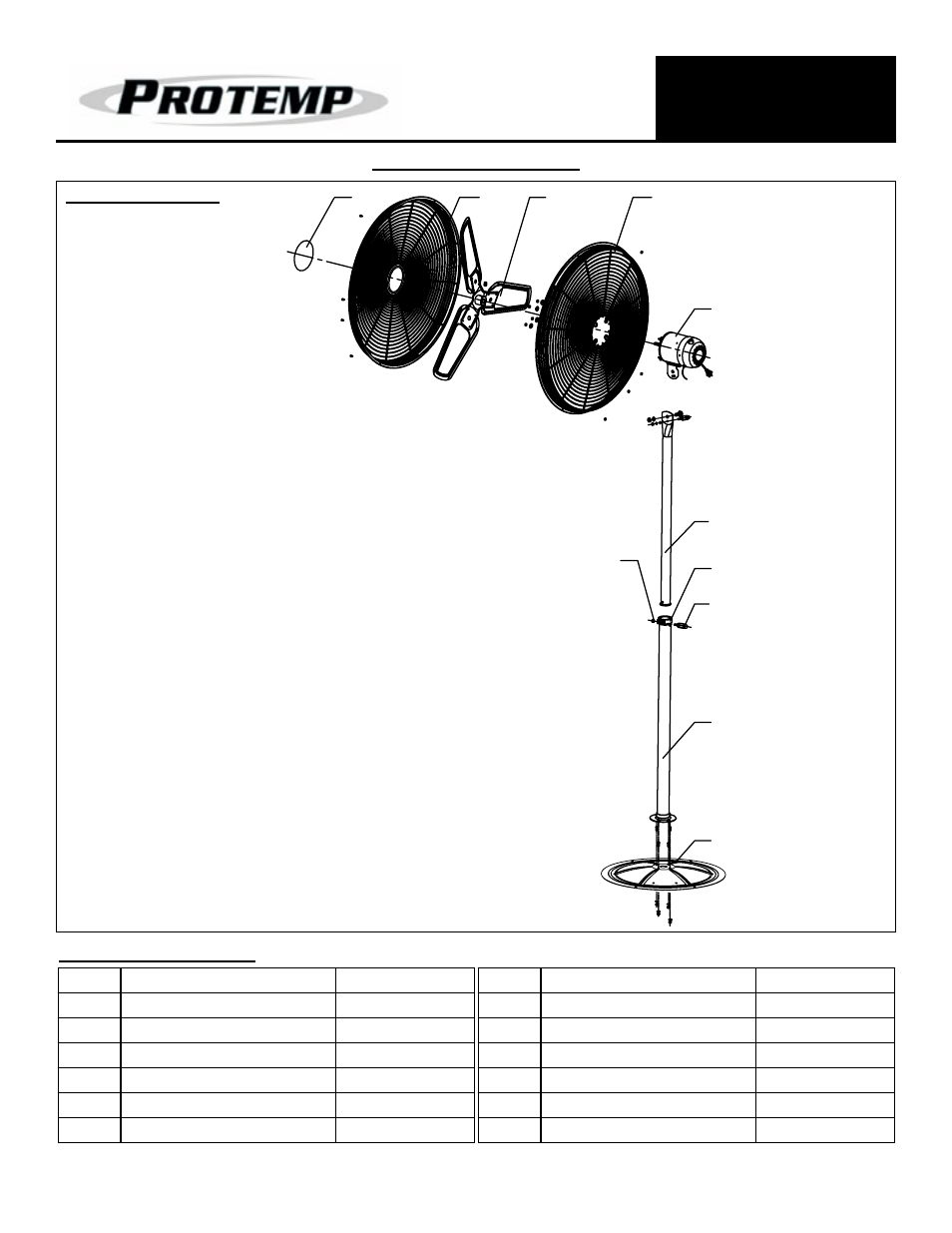

Figure 20: Exploded View of
PT-30P-DDF-L
Exploded View
Item # Description Part Number
1 Base 95-024-1000
2 Lower Support Pole 95-017-1000
3 Locking Knob Screw 95-015-1003
4 Locking Collar 95-017-1001
5 Locking Collar Nut 95-017-1002
6 Upper Support Pole 95-017-1003
Item # Description Part Number
7 Motor 95-030-1100
8 Rear Guard 95-032-1100
9 Fan Blade Assembly 95-003-1100
10 Front Guard 95-032-1101
11 Logo Plate 95-043-1000
12 Hardware Kit 95-100-1000
