© 2014, Pinnacle Products International, Inc. 11 HVF Air Circulator User’s Manual
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
24” BARREL FAN: PT-24-DDF-L
Installation and Assembly
1. Place the fan on level ground in a safe, desired
position then connect to an approved power source.
NOTE: This model CAN NOT be wall mounted.
Replacement Parts
Exploded View

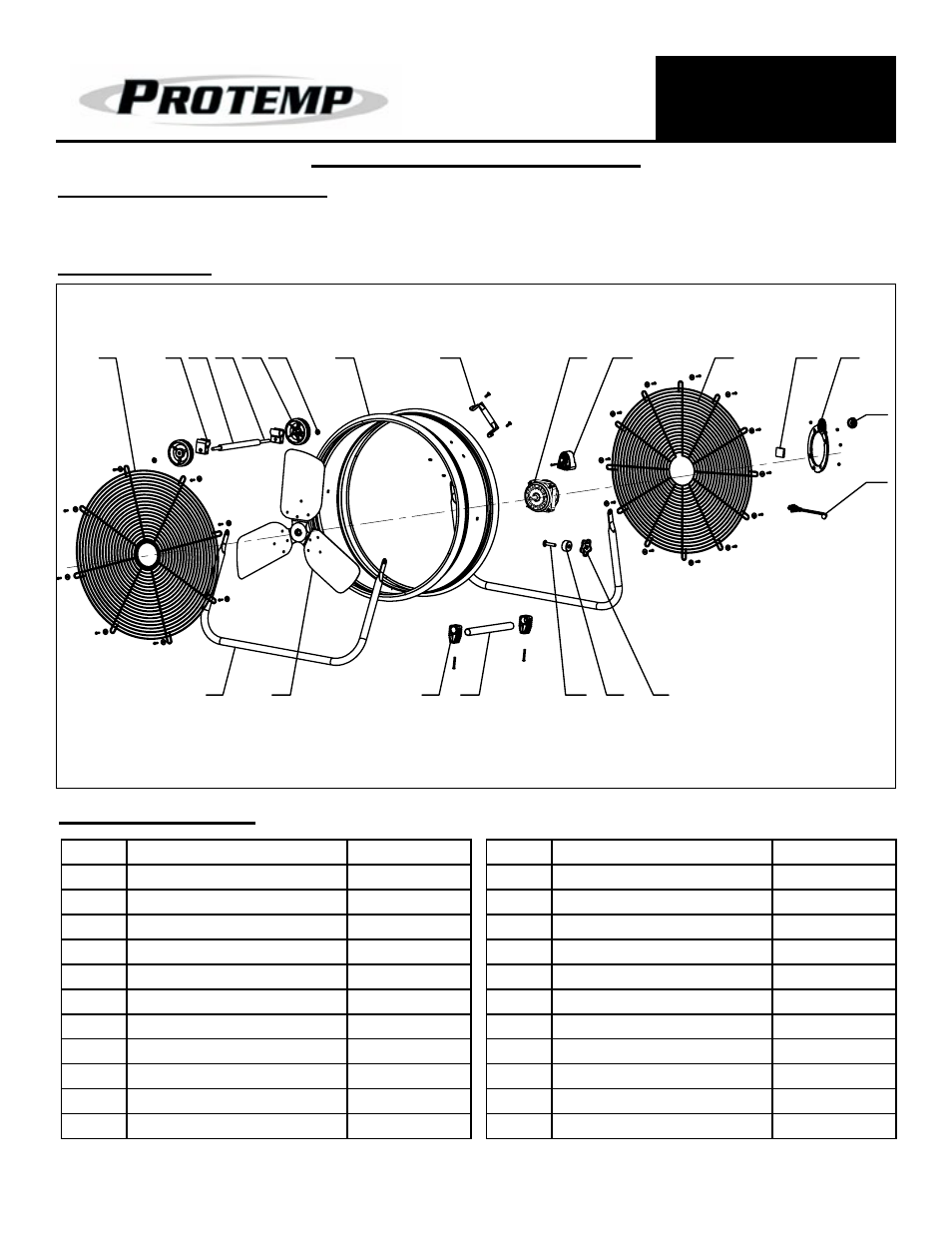

Figure 10: Exploded View of
PT-24-DDF-L
Item # Description Part Number
1 Power Cord 95-026-1000
2 Control Knob 95-027-1000
3 Motor Cover 95-035-1000
4 Power Switch 95-031-1100
5 Rear Guard 95-032-1000
6 Switch Cover 95-031-1000
7 Motor 95-030-1000
8 Handle 95-006-1000
9 Barrel 95-001-1000
10 Axle Cap 95-008-1000
11 Wheel 95-008-1001
Item # Description Part Number
12 Wheel Axle 95-008-1002
13 Axle Sleeve 95-008-1003
14 Wheel Carrier 95-008-1004
15 Front Guard 95-032-1001
16 Fan Frame 95-009-1000
17 Fan Blade Assembly 95-003-1000
18 Foot 95-023-1000
19 Frame Braket 95-009-1001
20 Adjustment Bolt 95-015-1000
21 Adjustment Boly Bushing 95-015-1001
22 Adjustment Knob
95-015-1002
