30” FLOOR FAN - OPTIONAL CEILING MOUNT CONTINUED
Ceiling Mount Installation
SAFETY CABLE INSTALLATION:
1. After the fan is securely mounted, feed the safety cable
between one of the swivel brackets as shown in Figure
15.
2. Pull safety cable through and secure cable with safety
cable U-bolt as shown in Figure 17.
3. Take other end of cable and wrap around beam
4. Secure cable loop as shown in step 2. Be sure there
is approximately 2 inches of slack in the safety cable
once both ends are secured.
5. Repeat on other side of fan so there are two safety
cables.
Tools Needed
- Phillips and flat head screw driver.
- 10 mm adjustable wrench

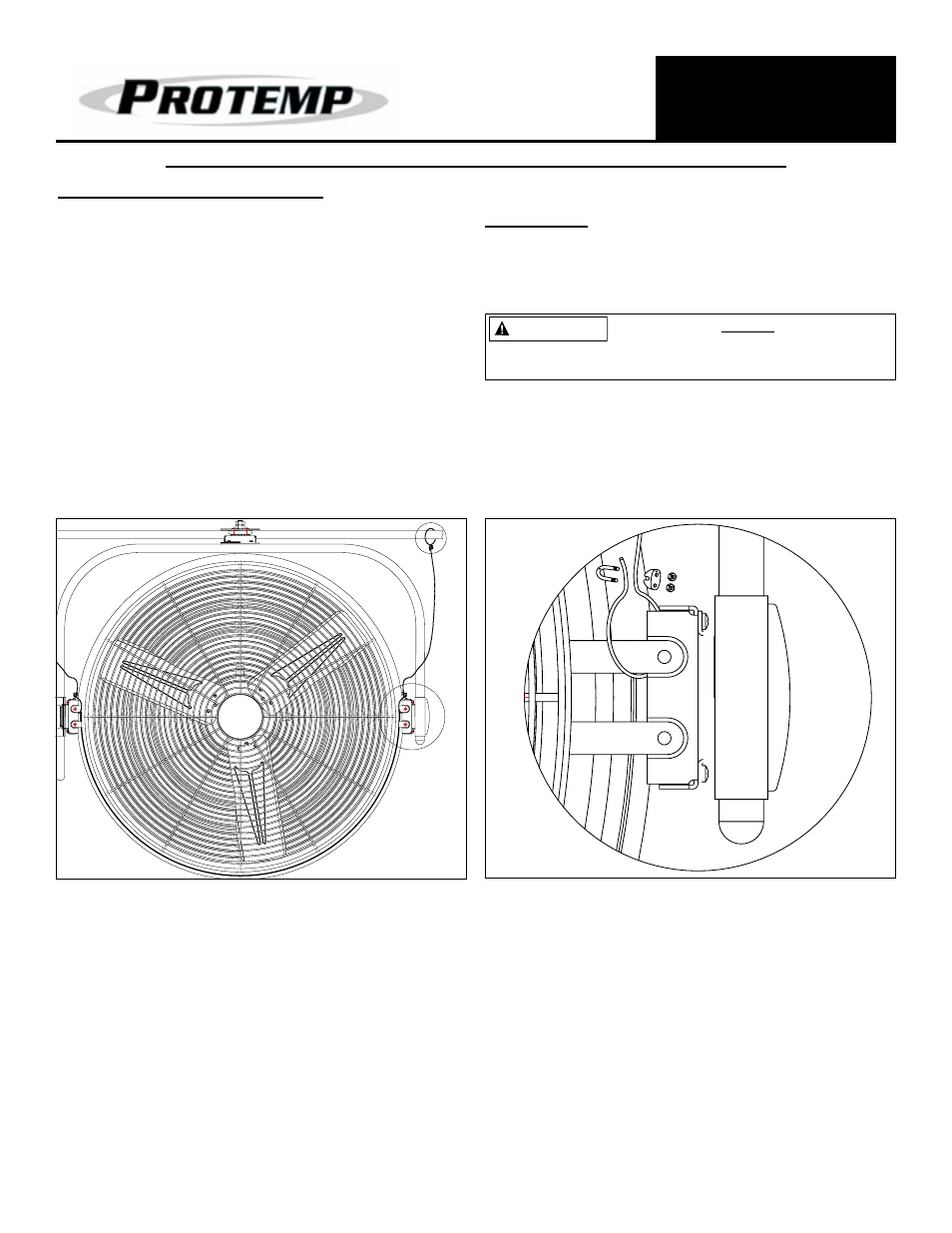

Figure 16: Safety Cable Installation Figure 17: Safety Cable Installation - Close Up
The installer MUST be
certain that the support bracket is
mounted to a minimum of a 2x4” stud, and that it
is able to support 105 pounds continuously.
WARNING
