30” FLOOR FAN - OPTIONAL CEILING MOUNT
Ceiling Mount Installation
MOUNTING BRACKET INSTALLATION:
1. Remove Wheel Frame (Item #15)
2. Attach Cart Frame to Ceiling beam using U-bolts
(Item #5).
3. Assemble and attach Ceiling Mount Assembly as
shown in Figure 15 below.
Tools Needed
- Phillips and flat head screw driver.
- 10 mm adjustable wrench.
Item# Description Part Number
1 Safety Cable Assy 95-060-0100
2 Nut for Ceiling Swivel Pin 95-060-0180
3 Nut 95-060-0125
4 Upper Ceiling Bracket 95-060-0110
5 U-Bolt 95-060-0120
Ceiling Kit Replacement Parts
Item# Description Part Number
6 Top Washer 95-060-0120
7 Lower Ceiling Bracket 95-060-0160
8 Tapping Screw 5-15mm 95-060-0195
9 Ceiling Swivel Pin 95-060-0170
1
3
5
6
7
8
9
2
4

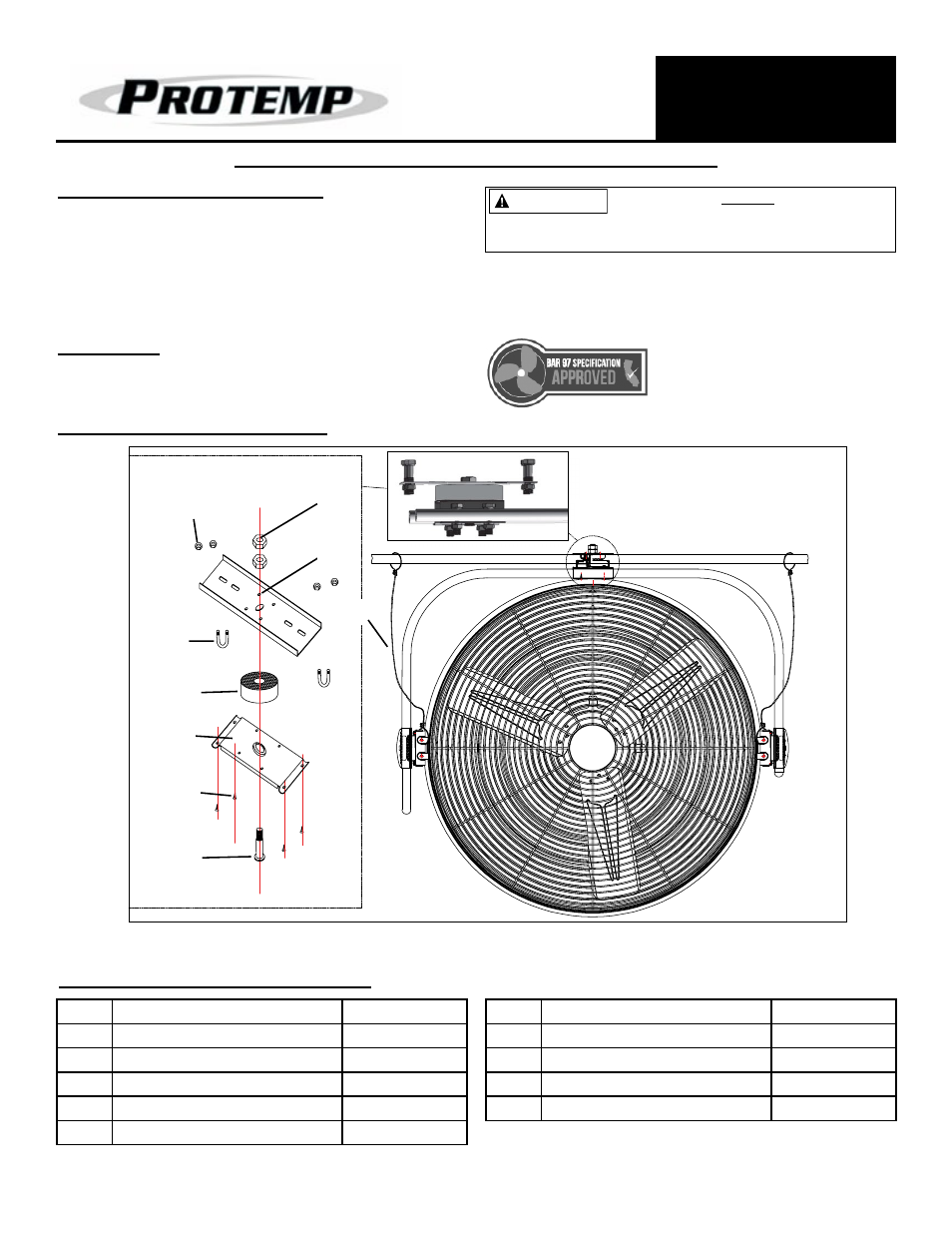

Figure 15: Exploded View of PT-30-DDF (ceiling mount kit)
Ceiling Kit Exploded View
The installer MUST be
certain that the support bracket is
mounted to a minimum of a 2x4” stud, and that it
is able to support 105 pounds continuously.
WARNING
This 30” Floor Fan (PT-30-DDF) is approved for use with
California’s BAR-97 Emissions Inspection System and meets
all BAR-97(EIS) required specifications and standards
