© 2014, Pinnacle Products International, Inc. 13 HVF Air Circulator User’s Manual
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
24” OMNI FAN - OPTIONAL WALL MOUNT
1. Attach Wall Mount (Item #17*) to wood stud as shown
below.
2. Slide Wall Bracket L (Item #25*) and Wall Bracket
R (Item #26*) on Large Base (Item #23*) onto Wall
Mount.
* On Page 12
Tools Needed
-Flat head Screw Driver.
Wall Mount Installation
The installer MUST be
certain that the support bracket is
mounted to a minimum of a 2x4” stud, and that it
is able to support 105 pounds continuously.
WARNING
2”x4”
STUD
Wall
Wall Mount (Item #17*)
Handle Arm (Item #20*)
Wall Mount
(Item #17*)
Large Base
(Item #23*)

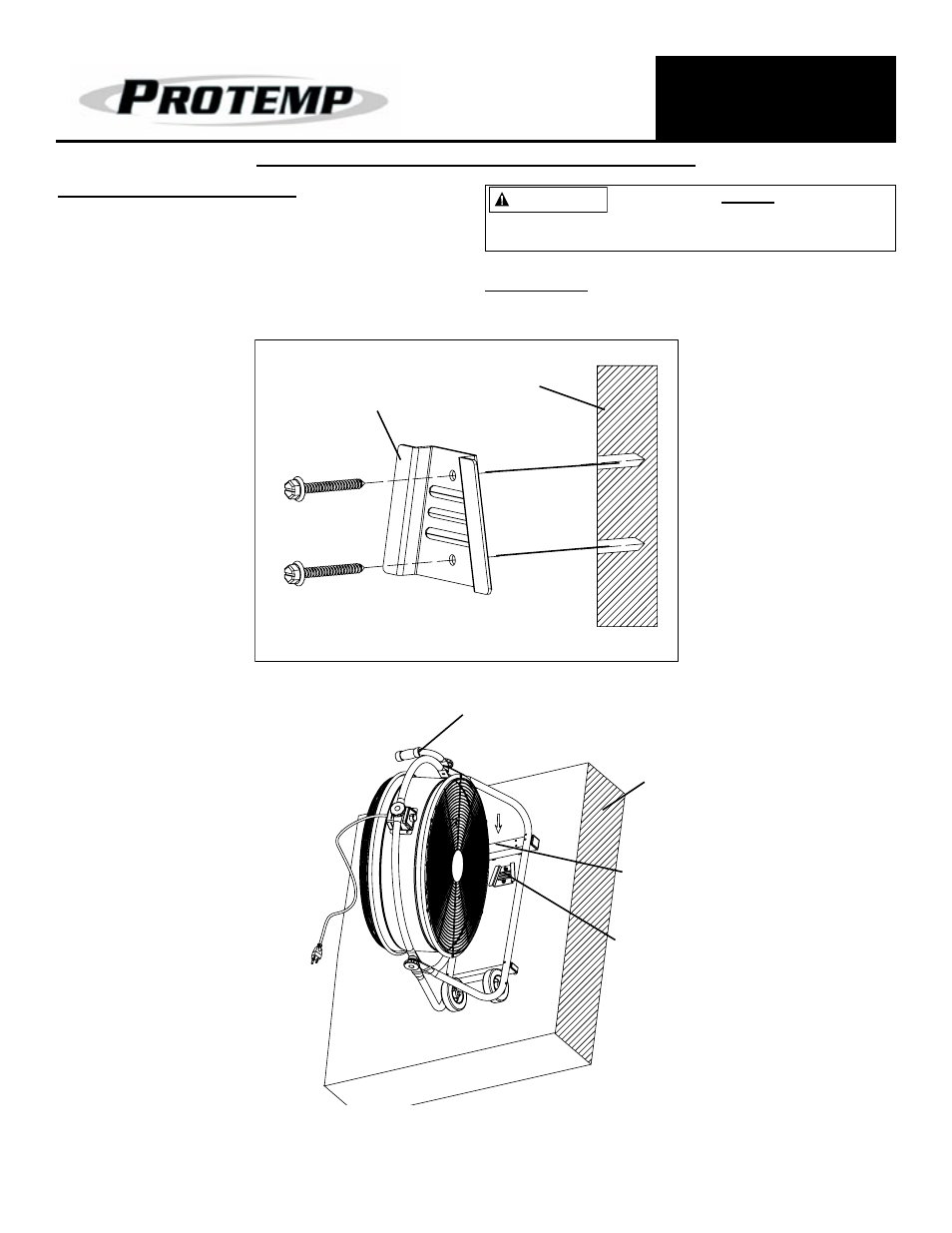

Figure 13: Wall Mount installation
Figure 12: Wall Mount installation Close Up
