ProTemp PT-30P-DDF-A - Manual (Page 10)

NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
© 2014, Pinnacle Products International, Inc. 10 HVF Air Circulator User’s Manual
20” SHOP FAN CONTINUED

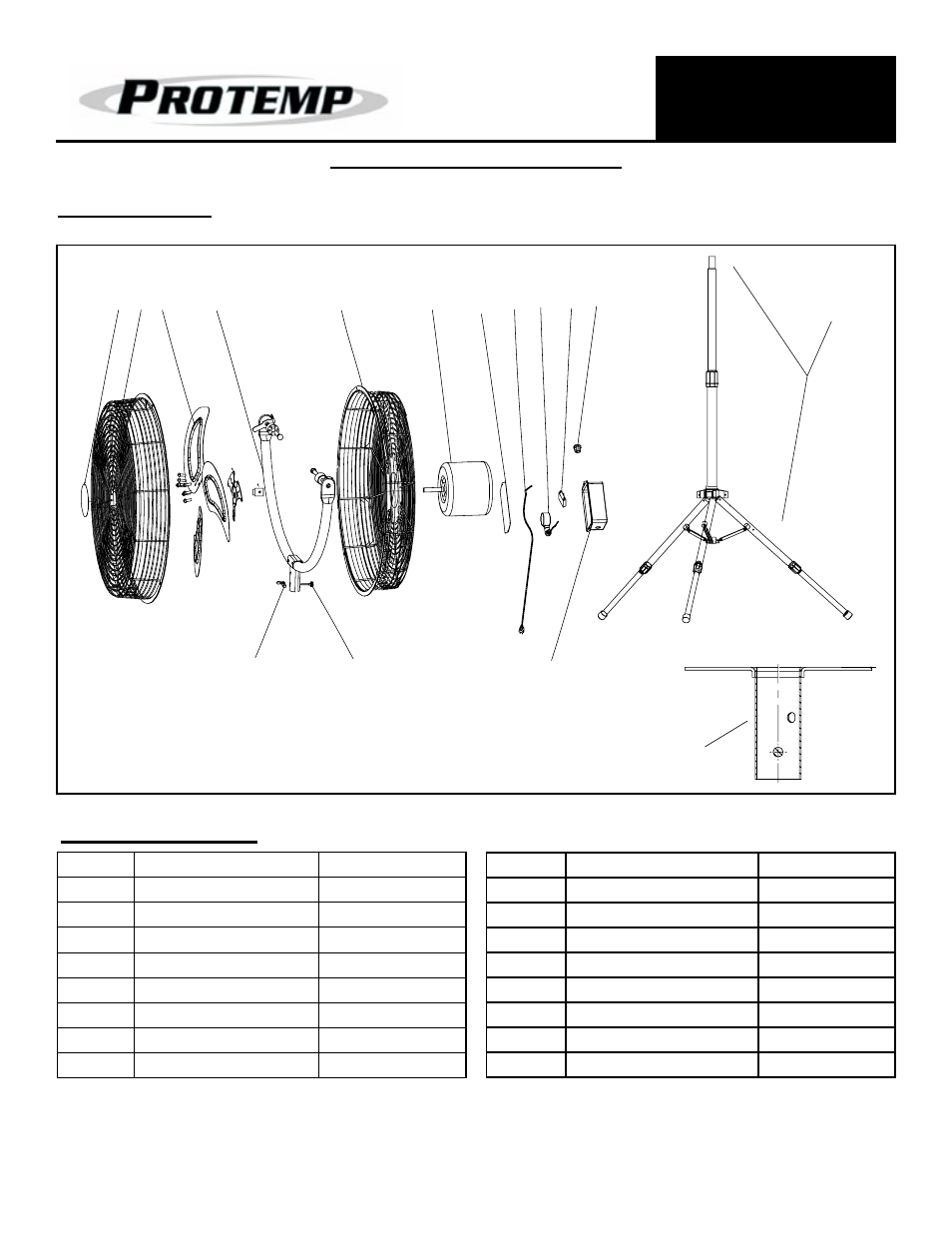

Exploded View
Replacement Parts
Item # Description Part Number
1 Logo Plate 95-043-0420
2 Front Guard 95-032-0185
3 Fan Blade Assembly 95-003-0616
4 Frame 95-001-0500
5 Rear Guard 95-032-0285
6 Motor 95-030-0525
7 Switch Holder 95-031-0335
8 Power Cord 95-026-0270
Item # Description Part Number
9 Power Switch 95-025-0600
10 Capacitor 95-004-0250
11 Bushing 95-026-0180
12 Switch Cover 95-031-0540
13 Tripod 95-040-0100
14 Wing Nut 95-075-0400
15 Base Knob 95-015-0220
16 Ceiling Mount Kit 95-078-0300
1 2 3
4 5 6 7 8 9 10 11
12 15 14
13
Figure 9: Exploded View of PT-20S-DDF
16
