Installing System Components

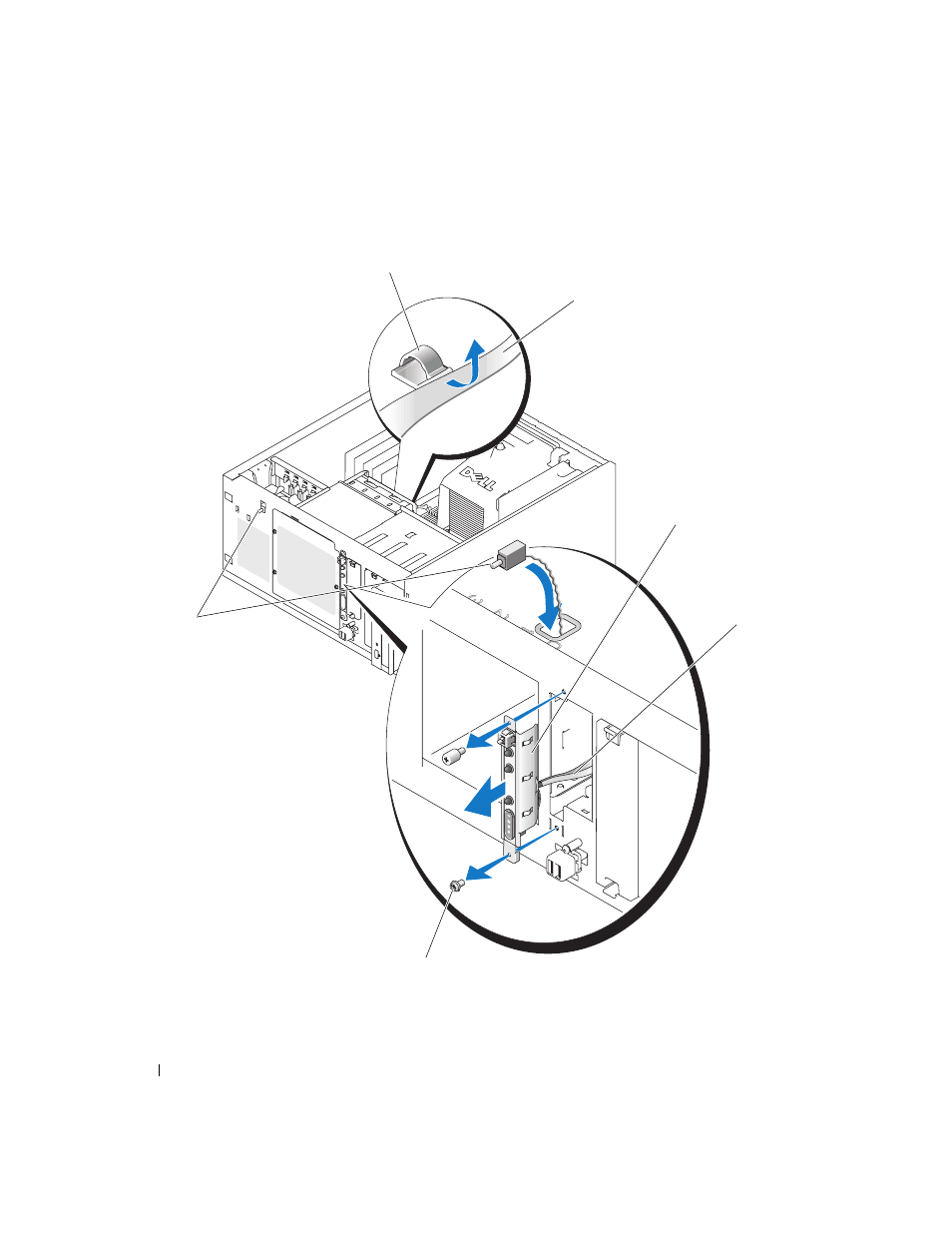

Figure 3-25.

Removing the Control Panel Assembly

1

assembly cable guide bracket

2

chassis floor

3

control panel assembly

4

control panel assembly cable

5

mounting screws (2)

6

chassis-intrusion switch
