8 About Your System
Indicators

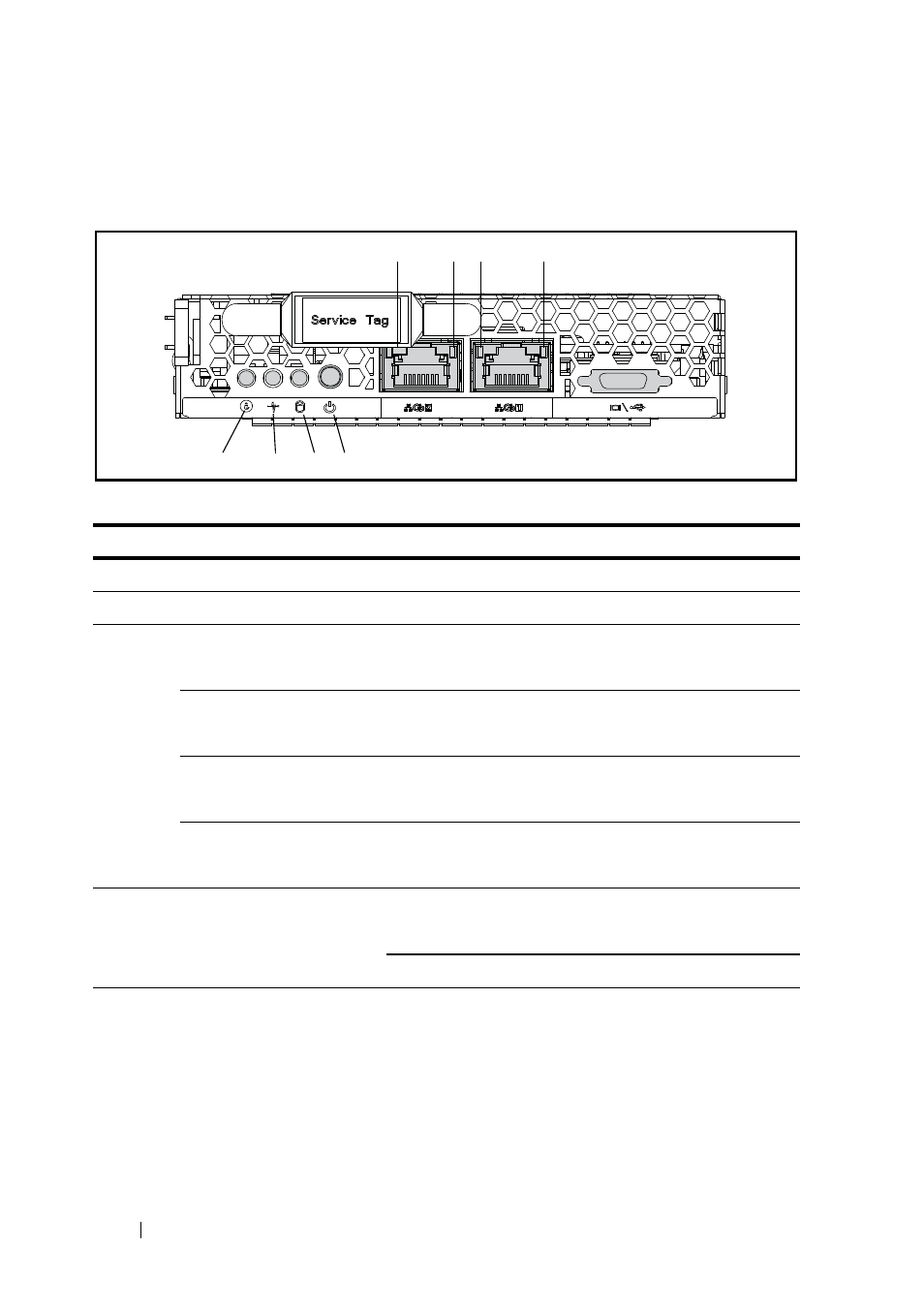

Figure 1-3. Front Panel Indicators (Rotated Counterclockwise 90°)
Item Feature Status Description
2, 4 LAN link LED Off No link
1, 3 LAN activity LED Off No activity
LAN link LED
LAN activity LED Green
Off Link
No activity
LAN link LED
LAN activity LED Green
Off Link
Activity 10 Mb
LAN link LED
LAN activity LED Blinking green
Green Link
Activity 100 Mb
LAN link LED
LAN activity LED Blinking green
Amber Link
Activity 1Gb
5 Power LED Green
On System DC On
Off System DC Off
