8 Cyclades PM IPDU Installer/Administrator/User Guide
Cyclades PM8i IPDU
The Cyclades PM8i IPDU has the following features:
• One 240VAC/8A power inlet (IEC320-C14). See PM8i-10A IPDU and PM10i-10A IPDU
power cables on page 15 for a list of which power cables are supplied by region.
• Eight 240VAC/8A power receptacles (IEC320-C13)
• 240VAC/10A supplementary protector
• Horizontal (1.5U) mounting

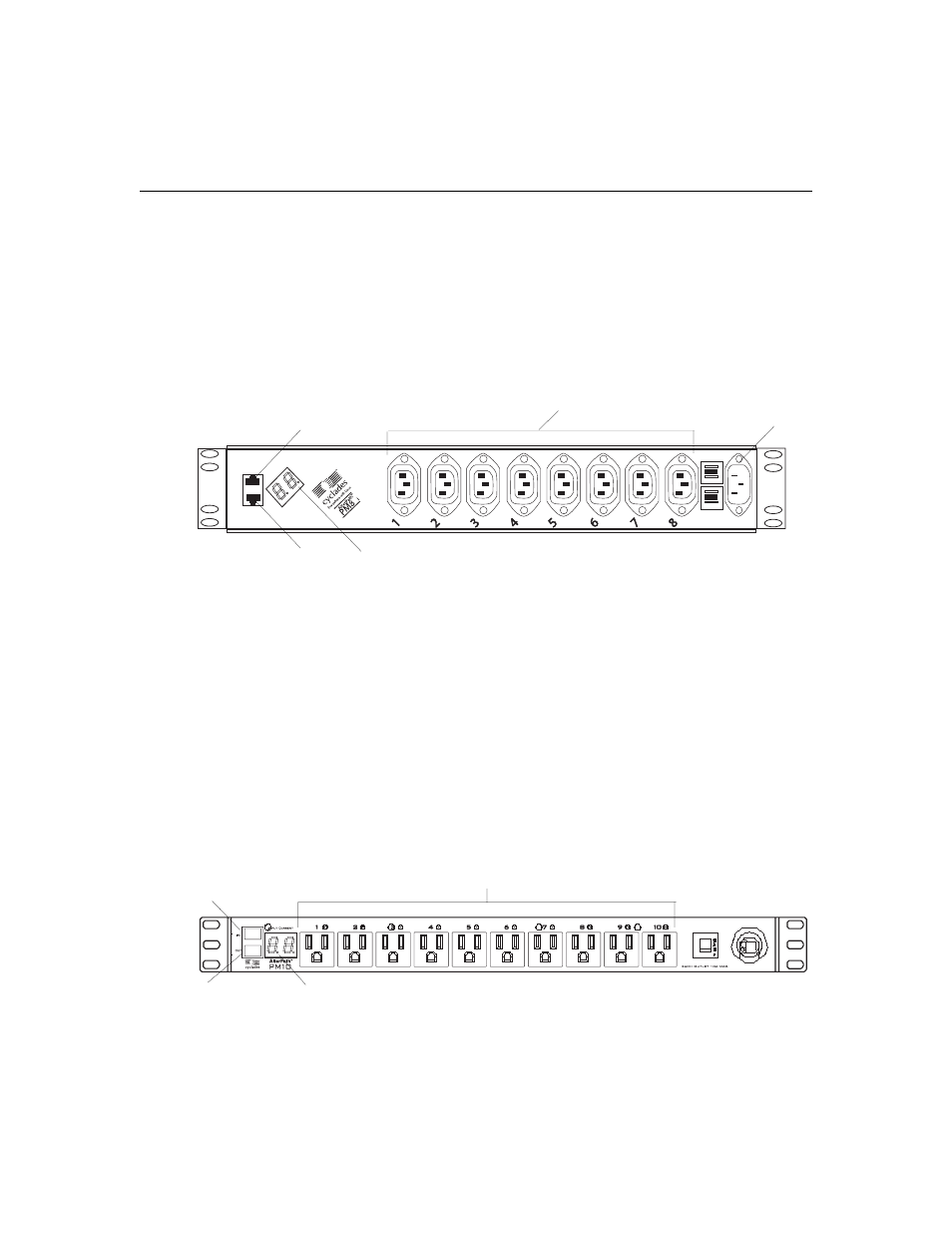

Figure 1.5: Cyclades PM8i IPDU
Cyclades PM10 IPDU
The Cyclades PM10 IPDU has the following features:
• One of the following power plugs:
• 125VAC/15A power plug (NEMA 5-15P)
• 125VAC/20A power plug (NEMA 5-20P)
• 125VAC/20A power plug (NEMA L5-20P)
• 125VAC/30A power plug (NEMA L5-30P)
• Ten 125VAC/15A power receptacles (NEMA 5-15R)
• 125VAC/15A/20A/two 15A circuit breakers
• Horizontal mounting (1U)
Figure 1.6: Cyclades PM10 IPDU
Power Inlet
Power Outlets (IEC320-C13)
OUT Port
IN Port Digital Current Display
IN Port
OUT Port
10 NEMA5-15R Power Outlets
Digital Current Display
