EZSwitchSetup Administrator’s Guide 39
53-1002744-01
Managing devices
3
1. Click View under Devices in the task panel to display a table of information for all of the
connected devices ( Figure 34 ).
The entries in the table are based on the device WWNs, so a single physical device can have
more than one entry in the table. The device information can be viewed, copied, or exported.

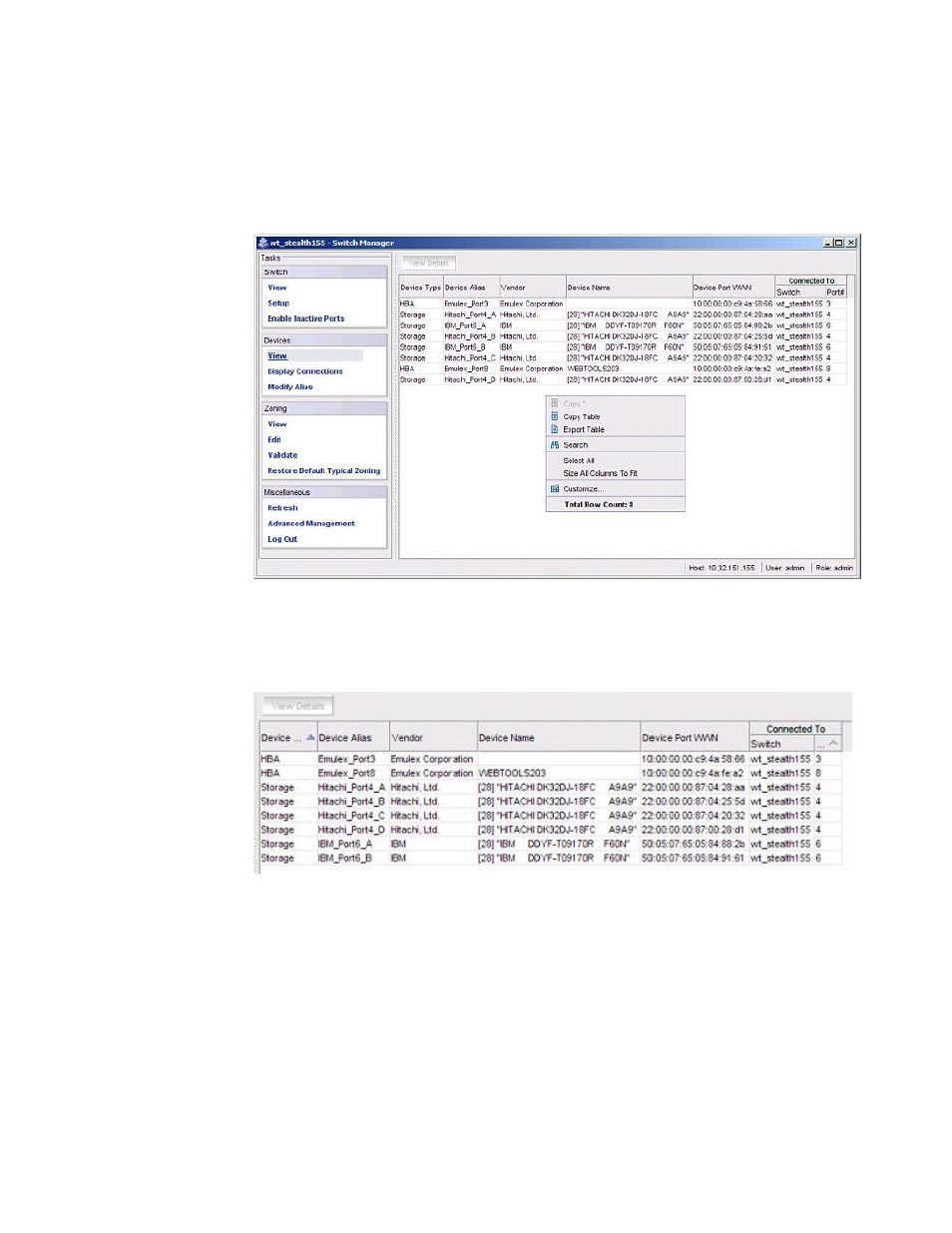

FIGURE 34 Devices view
The table can be sorted by device type, port number, or vendor. You can refine sorting by using
the Ctrl key while selecting column headers. For example, if hold down the Ctrl key and select
Device Type and Port# shows port numbers associated with device types (
Figure 35 ).
FIGURE 35 Device table sorting example
2. Select a row in the table to display additional information about the device.
3. Click View Details located at the top of the page. Figure 36 shows a Device Details example.
