13.
Disconnect the battery extension board from system board connector and lift the battery extension board out of the computer base.
Replacing the Battery Extension Board
1.
Follow the procedures in
Before You Begin
.
2.
Align the battery extension board with the system board connector and press the battery extension board in place.
3.
Replace the screw that secures the battery extension board to the computer base.
4.
Replace the tapes to secure the USB module cable and the speaker cables to the battery extension board.
5.
Replace the palm rest (see
Replacing the Palm Rest
).
6.
Replace the keyboard (see
Replacing the Keyboard
).
7.
Replace the center control cover (see
Replacing the Center Control Cover
).
8.
Replace the memory module(s) (see
Replacing the Memory Module(s)
).
9.
Replace the module cover (see
Replacing the Module Cover
).
10.
Replace the optical drive (see
Replacing the Optical Drive
).
11.
Replace the hard drive (see
Replacing the Hard Drive
).
12.
Replace the battery (see
Replacing the Battery
).
Back to Contents Page

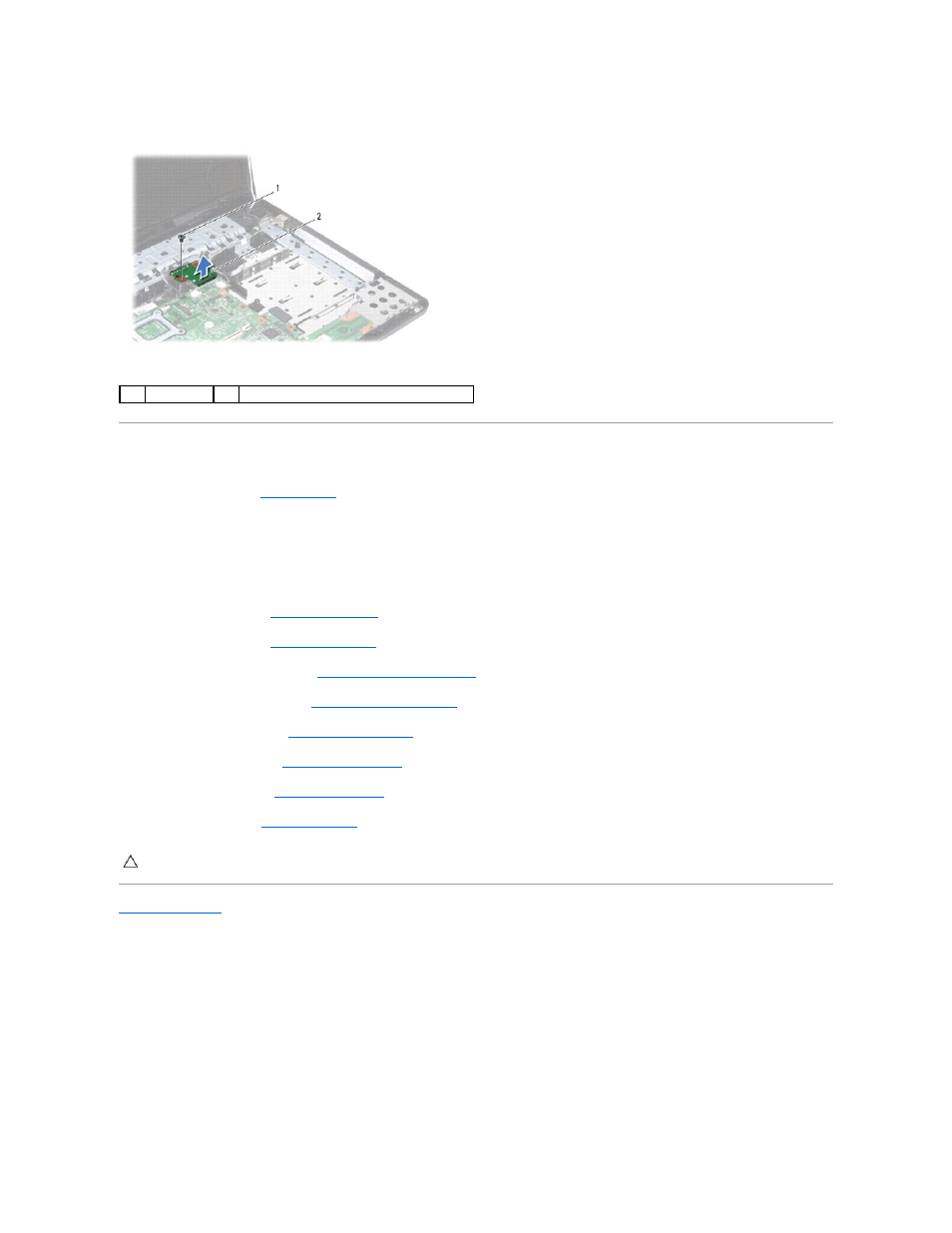

1
screw
2
battery extension board
CAUTION:
Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
