Replacing the Bluetooth Board
1.
Follow the procedures in
Before You Begin
.
2.
Align the Bluetooth board with the slot on the palm rest and stick the Bluetooth board on the palm rest.
3.
Route the Bluetooth board cable through the routing guide and connect it to the system board connector.
4.
Route the display cable and camera cable through their routing guides and connect them to the respective system board connectors.
5.
Replace the Bluetooth card (see
Back to Contents Page

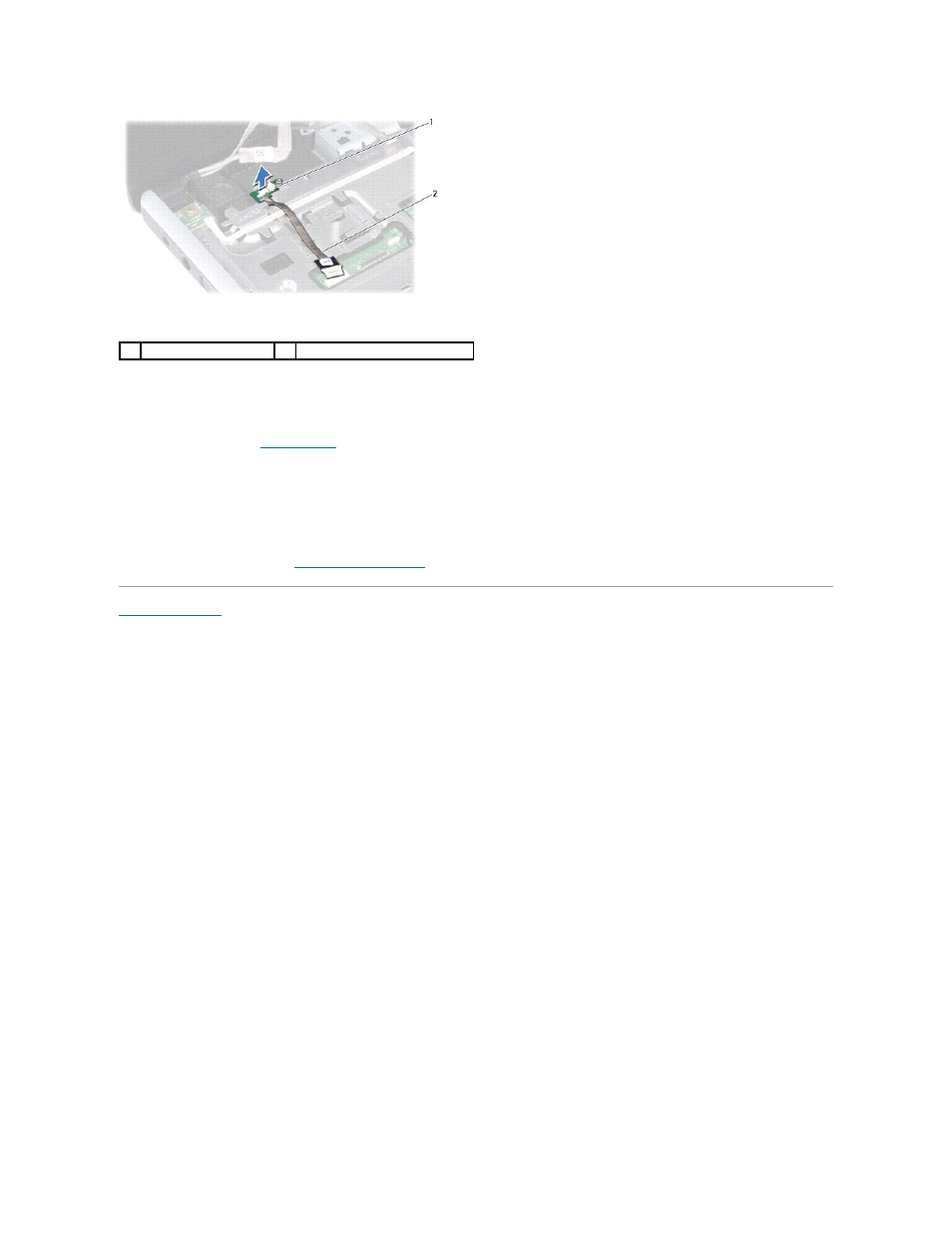

1
Bluetooth board
2
Bluetooth board cable
