Battery Extension Board
Dell™ Inspiron™ 17 Service Manual
Removing the Battery Extension Board
Replacing the Battery Extension Board
Removing the Battery Extension Board
1. Follow the procedures in Before You Begin .
2. Remove the battery (see Removing the Battery ).
3. Remove the module cover (see Removing the Module Cover ).
4. Remove the memory module(s) (see Removing the Memory Module(s) ).
5. Remove the hard drive (see Removing the Hard Drive ).
6. Remove the optical drive (see Removing the Optical Drive ).
7. Remove the center control cover (see Removing the Center Control Cover ).
8. Remove the keyboard (see Removing the Keyboard ).
9. Remove the palm rest (see Removing the Palm Rest ).
10. Remove the tape to release the speaker cables from the battery extension board.
11. Remove the tape to release the USB module cable from the battery extension board.
12. Remove the screw that secures the battery extension board to the computer base.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery ) before working inside the
computer.

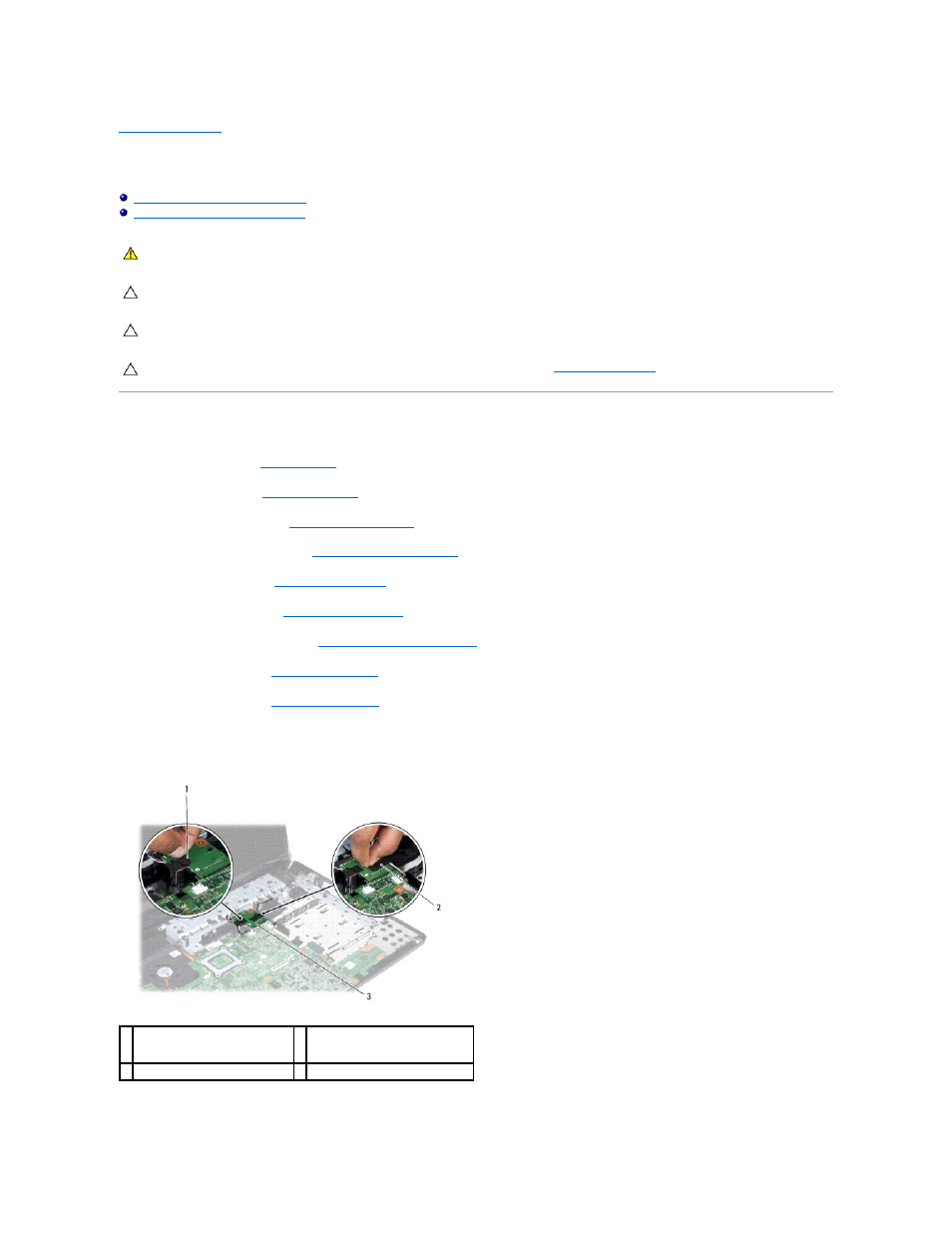

1 tape that binds the speaker
cables to the battery extension
board
2 tape that binds the USB module
cable to the battery extension
board
3 battery extension board
