Camera
Dell™ Inspiron™ 1370 Service Manual
Removing the Camera
1.
Follow the procedures in
Before You Begin
.
2.
Remove the battery (see
Removing the Battery
).
3.
Follow the instructions from
step 3
to
step 15
in
Removing the System Board
.
4.
Remove the display assembly (see
Removing the Display Assembly
).
5.
Remove the display hinge covers (see
Removing the Display Hinge Covers
).
6.
Remove the display bezel (see
Removing the Display Bezel
).
7.
Remove the display panel (see
Removing the Display Panel
).
8.
Lift the camera module off the display cover.
Replacing the Camera
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on the back of the computer).
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery
) before working inside the
computer.

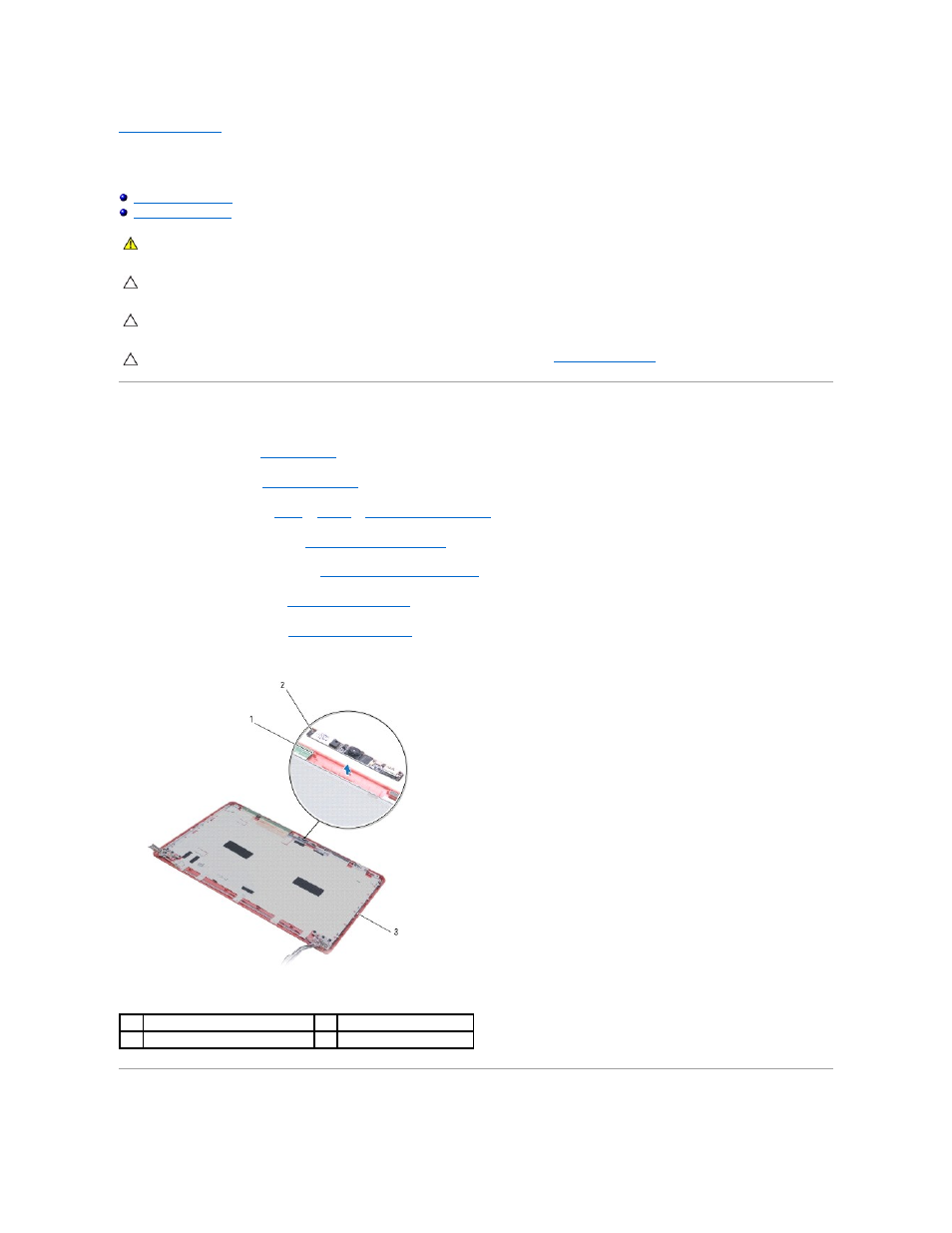

1
alignment posts (2)
2
camera module
3
display cover
