Coin-Cell Battery
Dell™ Inspiron™ 1370 Service Manual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery
Removing the Coin-Cell Battery
1.
Follow the procedures in
Before You Begin
.
2.
Remove the battery (see
Removing the Battery
).
3.
Follow the instructions from
step 3
to
step 13
in
Removing the System Board
.
4.
Lift the system board up slightly to remove the coin-cell battery cable from the routing guide.
5.
Lift the coin-cell battery to remove it from the computer base.
Replacing the Coin-Cell Battery
1.
Follow the procedures in
Before You Begin
.
2.
With the adhesive side of the coin-cell battery facing down, press the coin- cell battery into place on the computer base.
3.
Follow the instructions from
step 5
to
step 21
in
Replacing the System Board
.
4.
Replace the battery (see
Replacing the Battery
).
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery
) before working inside the
computer.

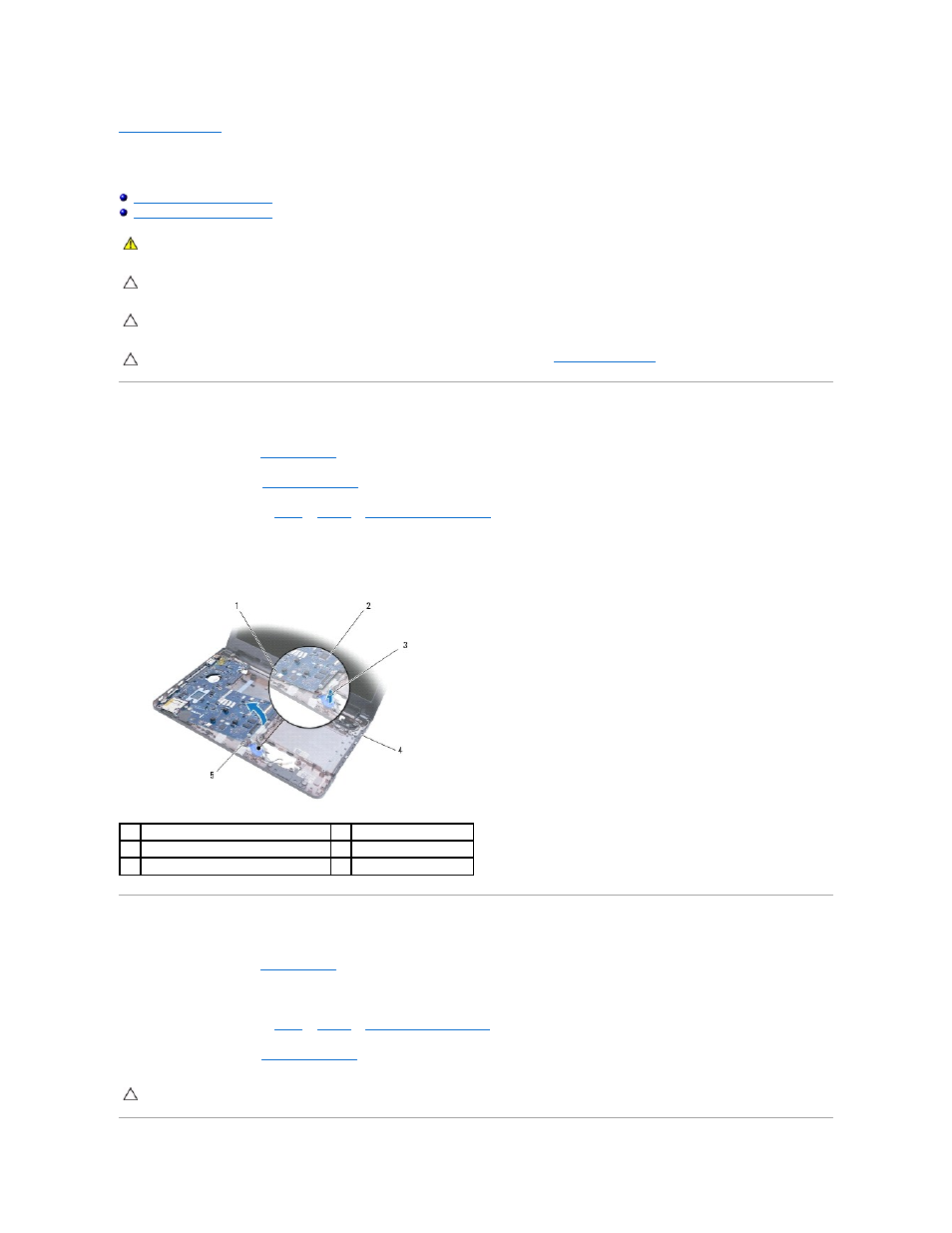

1
system board connector
2
system board
3
coin-cell battery
4
computer base
5
coin-cell battery cable
CAUTION:
Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
