Display
Dell™ Inspiron™ 1370 Service Manual
Display Assembly
Removing the Display Assembly
1.
Follow the procedures in
Before You Begin
.
2.
Remove the battery (see
Removing the Battery
).
3.
Follow the instructions from
step 3
to
step 15
in
Removing the System Board
.
4.
Remove the SIM board (see
Removing the SIM Board
).
5.
Make a note of the Mini-Card antenna cable routing and carefully dislodge the antenna cables from the routing guides on the computer base. Pull the
cables away so that they are clear of the computer base.
6.
Remove the four screws that secure the display assembly to the computer base.
7.
Slide the hinges out of the slots in the computer base.
8.
Lift the display assembly off the computer base.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery
) before working inside the
computer.

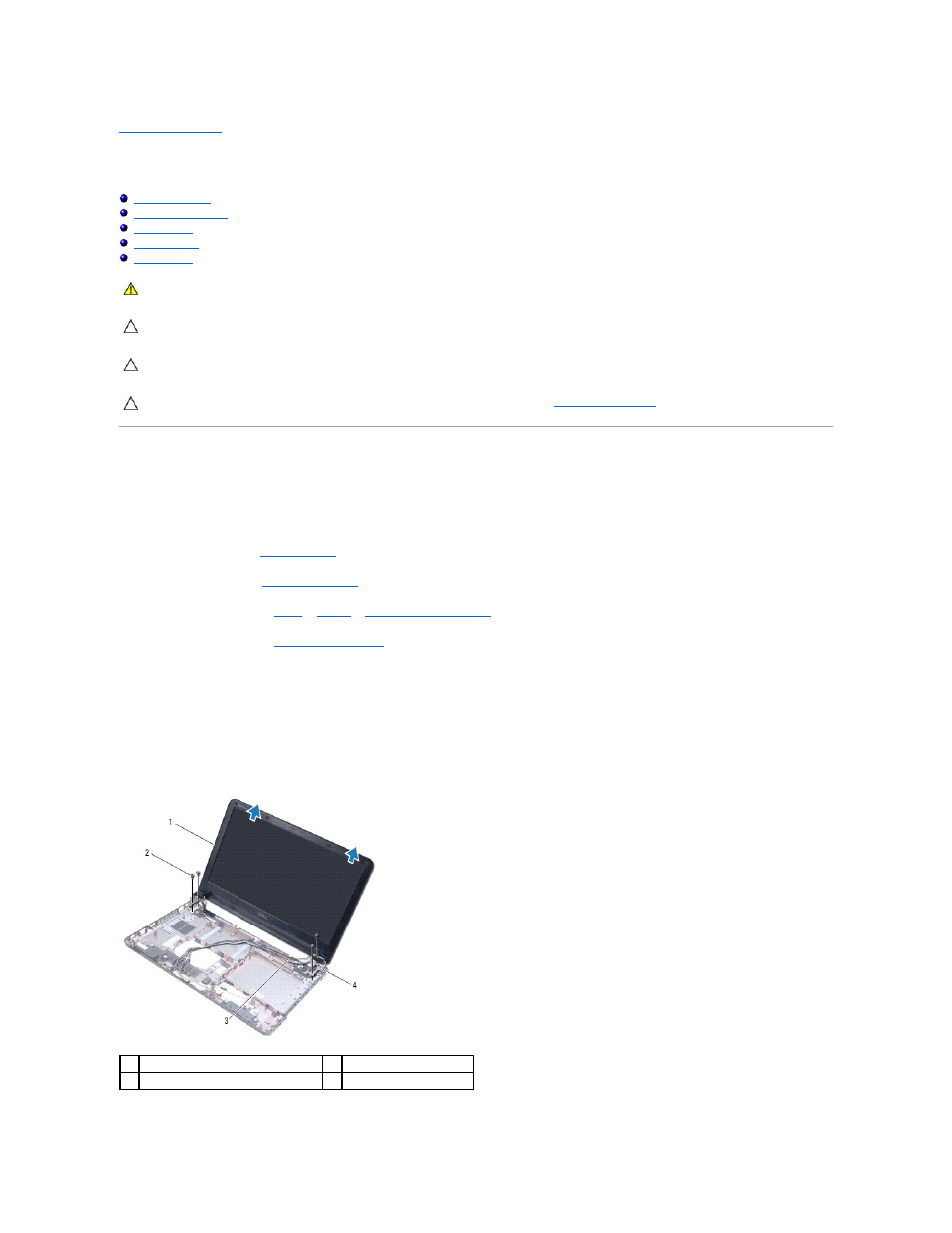

1
display assembly
2
screws (4)
3
Mini-Card antenna cables
4
display hinges (2)
