System Board
8 Disconnect all cables connected to the system board (see "System Board
Components" on page 10). Note the routing of all cables as you remove
them so that you can re-route them correctly after installing the new
system board.

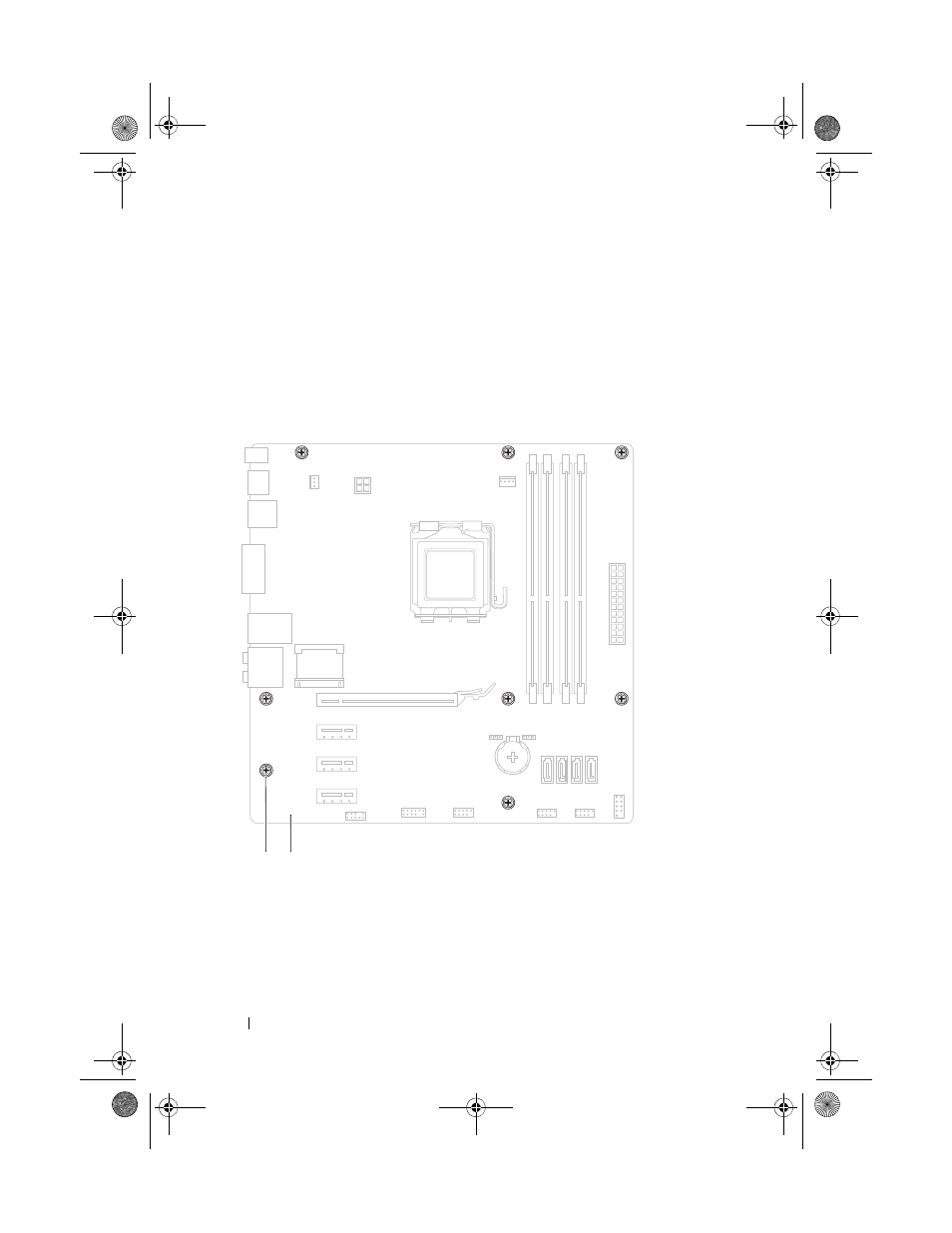

9 Remove the eight screws that secure the system board to the chassis.
1 screws (8)
2 system board
