78 Fans
Replacing the Chassis Fan
1 Follow the instructions in "Before You Begin" on page 13.
2 Align the screw holes on the chassis fan with the screw holes on the chassis.
3 Replace the four screws that secure the chassis fan to the chassis.
4 Connect the chassis fan cable to the system board connector SYS_FAN1
(see "System Board Components" on page 10).
5 Replace the computer cover (see "Replacing the Computer Cover" on
page 18).

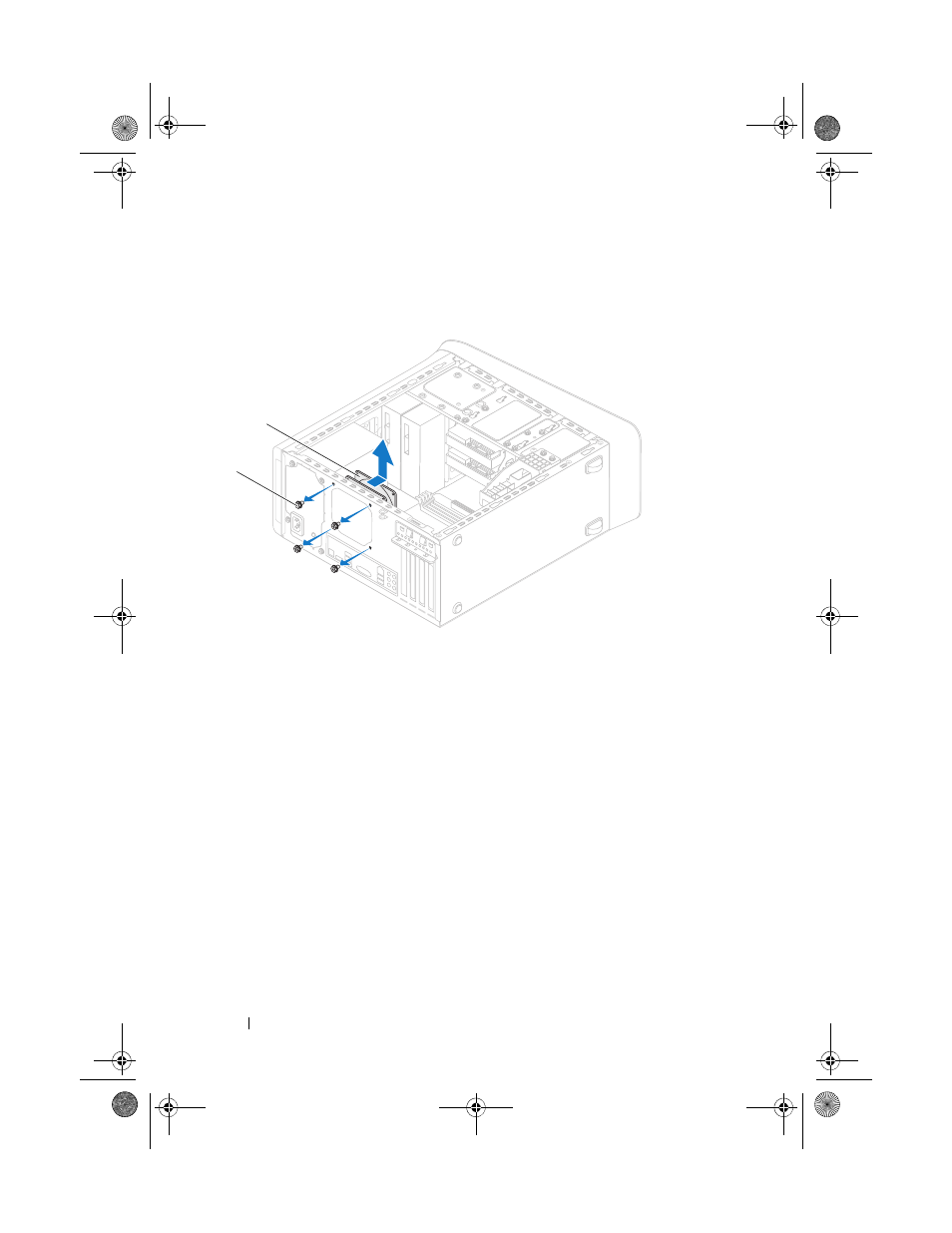

1 screws (4) 2 chassis fan
1
2
