support.dell.com I/O Ports and Connectors B-7

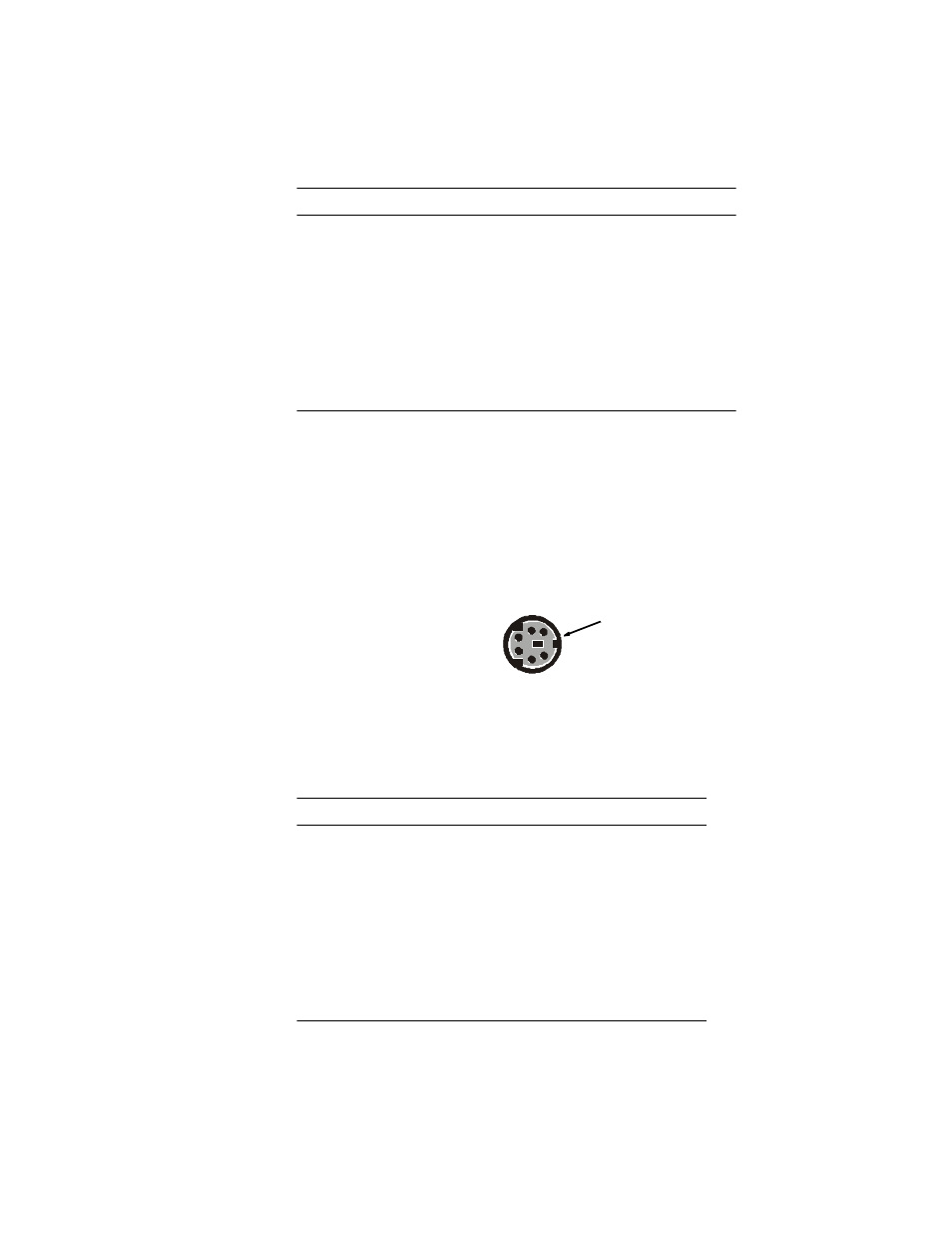

If you reconfigure your hardware, you may need pin number and signal information for
the mouse connector. Figure B-5 illustrates the pin numbers for the mouse connector,
and Table B-4, lists and defines the pin assignments and interface signals for the
mouse connector.
&'
"!$%
1 KBDATA I/O Keyboard data
2 NC — No connection
3 GND — Signal ground
4 FVcc — Fused supply voltage
5 KBCLK I/O Keyboard clock
6 NC — No connection
Shell — — Chassis ground
#!'
1 MFDATA I/O Mouse data
2 NC — No connection
3 GND — Signal ground
4 FVcc — Fused supply voltage
5 MFCLK I/O Mouse clock
6 NC — No connection
Shell — — Chassis ground
6
4
2
5
3
1
shell
