Battery Latch Assembly: Dell XPS M1710 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/batlatch.htm[2/21/2014 11:23:51 AM]

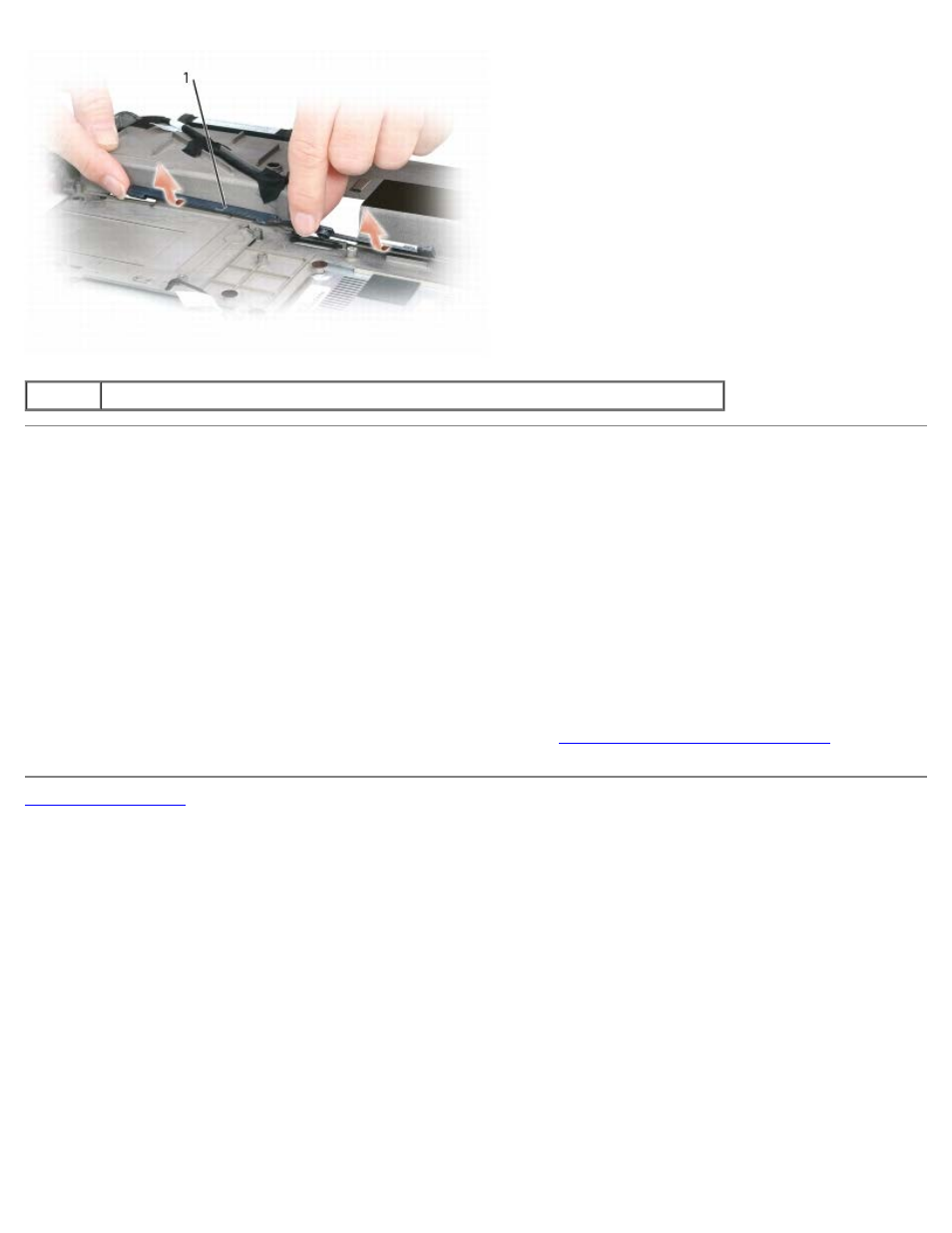

1 battery latch assembly
Replacing the Battery Latch Assembly
1. Insert the latch assembly into the channel on the computer base, and press it into place.
2. Using a small screwdriver, hook the spring over the hook on the computer base.
3. Place the battery latch release under the computer base, line it up with the hole in the base, and then replace the M2 x
2.5-mm screw in the assembly.
Ensure that the newly installed latch moves smoothly and freely when pushed and released.
4. Replace the hard drive bay and reinsert the two M2 x 3-mm screws.
5. Replace the system board and the four M2.5 x 5 screws.
6. Replace in reverse order the other components that you removed in Removing the Battery Latch Assembly .
