System Board: Dell XPS M1710 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/sysboard.htm[2/21/2014 11:23:45 AM]

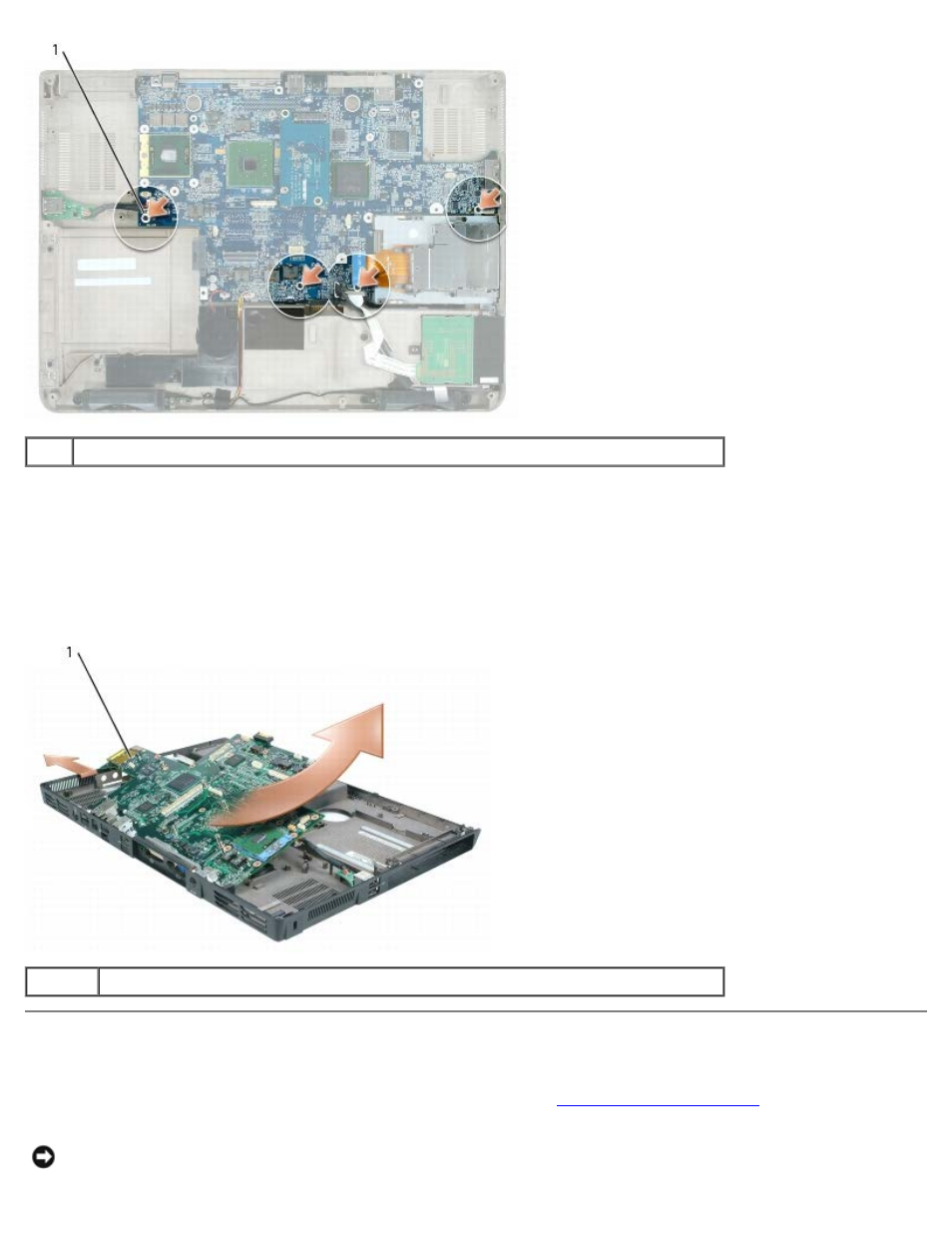

1 system board M2.5 x 5-mm screws (4)
23. Remove the system board, slowly easing the connectors out of their access holes on the back and side of the computer
base:
a. With the back of the computer facing you, grasp the upper-right corner of the system board and lift it slightly.
b. Pull the system board assembly away from you toward the front of the computer and slightly to the right; at the
same time, use your left hand to release the audio connectors by pulling the side of the computer base slightly
to the left.
1 system board assembly
Replacing the System Board
1. Replace in reverse order all of the components that you removed in Removing the System Board .
NOTICE: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the
computer. Failure to do so may result in damage to the computer.
