Modem: Dell XPS M1710 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/modem.htm[2/21/2014 11:23:33 AM]

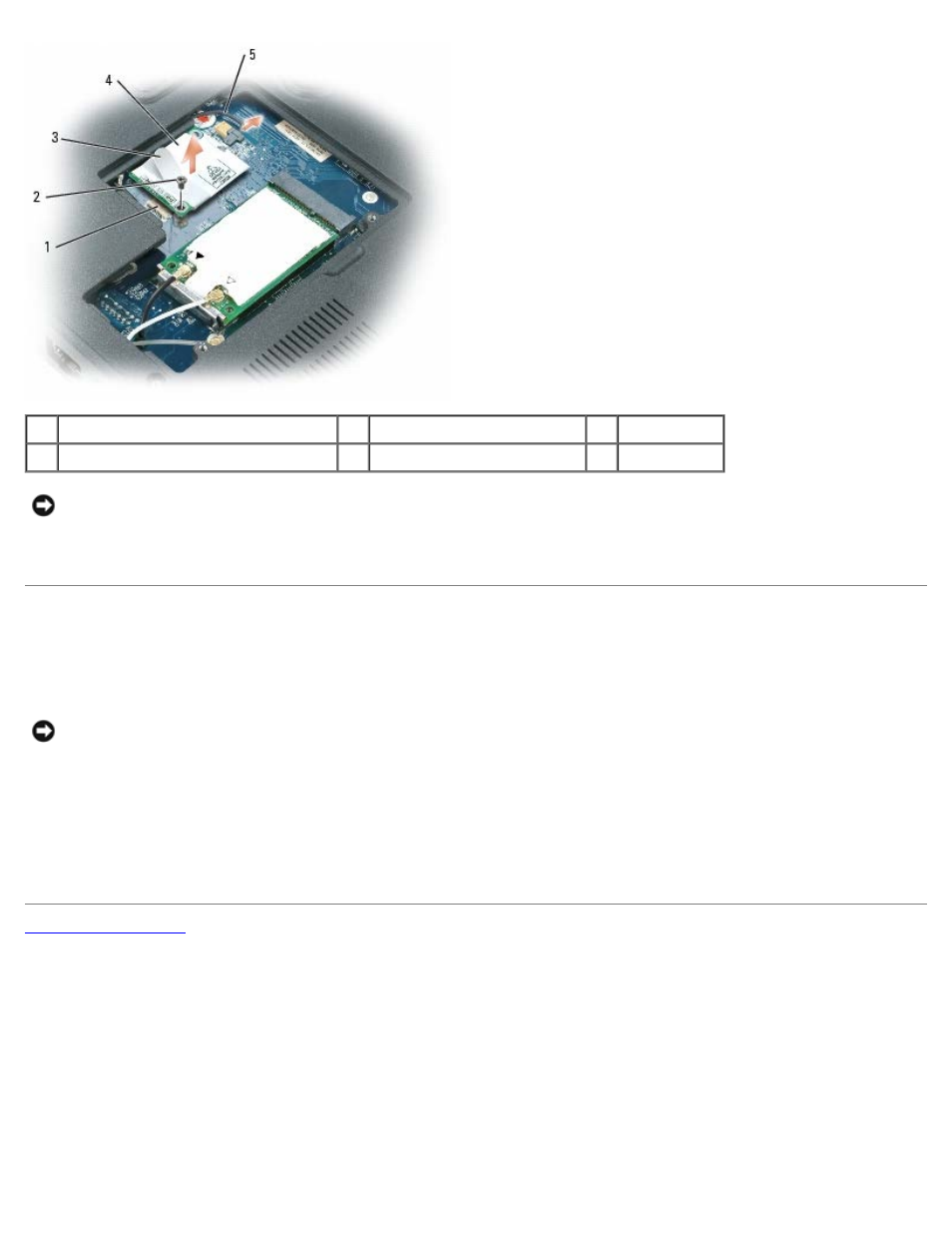

1 system board connector 2 M2 x 3-mm screw 3 pull-tab
4 modem 5 modem cable
NOTICE: Do not disconnect the modem cable from the system board.
5. Disconnect the modem cable from the modem.
Replacing the Modem
1. Connect the modem cable to the modem.
NOTICE: Ensure that the modem cable is routed correctly when you replace the modem.
2. Connect the modem to the system board.
Align the connector on the bottom of the modem with the modem connector on the system board, and press down on
the right side of the modem.
3. Replace the M2 x 3-mm screw.
