Connecting Your Projector 9

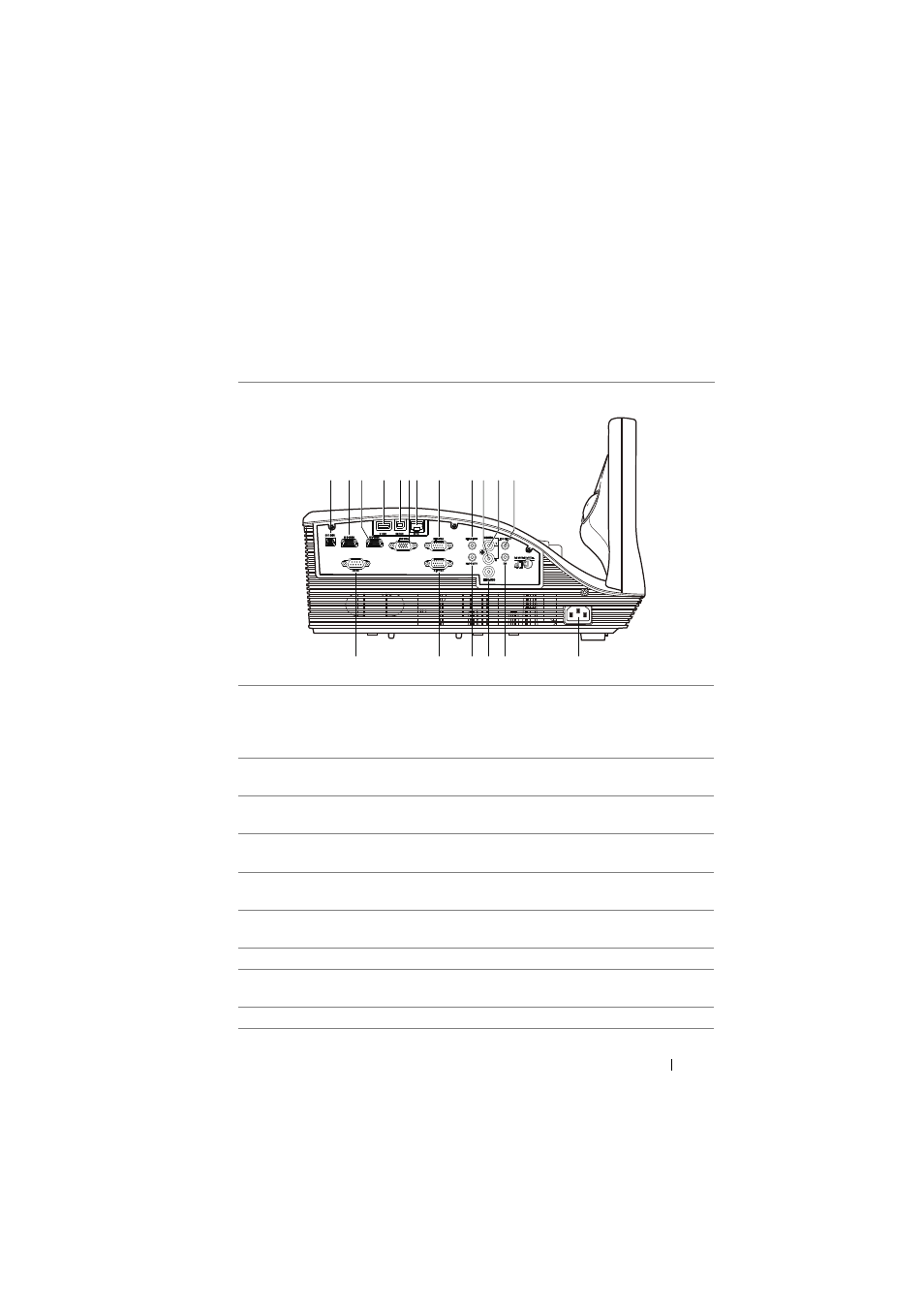

2 Connecting Your Projector
1 Mini USB (Mini Type B)
connector for remote control,
interactive pen, and firmware
upgrade 10 Audio right-channel input
connector
2 HDMI-B connector 11 Audio left-channel input
connector
3 HDMI-A connector for support
MHL feature 12 Audio output connector
4 USB Type A connector for USB
Viewer 13 Power cord connector
5 USB Type B connector
(DoUSB) for USB Display 14 Microphone connector
6 VGA output (monitor loop
through) connector 15 Composite Video connector
7 RJ-45 connector 16 Audio-B input connector
8 VGA-A input (D-sub)
connector 17 VGA-B input (D-sub)
connector
9 Audio-A input connector 18 RS232 connector
13
1
14 15 16 17 18
2 8 9 10 11 12 4 3 5 6 7
