Removing and Installing Parts
3 Disconnect the FlexBay USB cable from the back of the Media Card Reader and from the Media Card
Reader connector on the system board (see "System Board Components" on page 68) and route the
cable through the cable routing clip.
4 Slide the drive latch release toward the bottom of the computer and, without releasing the drive latch
release, slide the Media Card Reader out through the front of the computer.
5 Replace the drive panel (see "Replacing the Drive Panel" on page 85).
6 Replace the computer cover (see "Replacing the Computer Cover" on page 106).

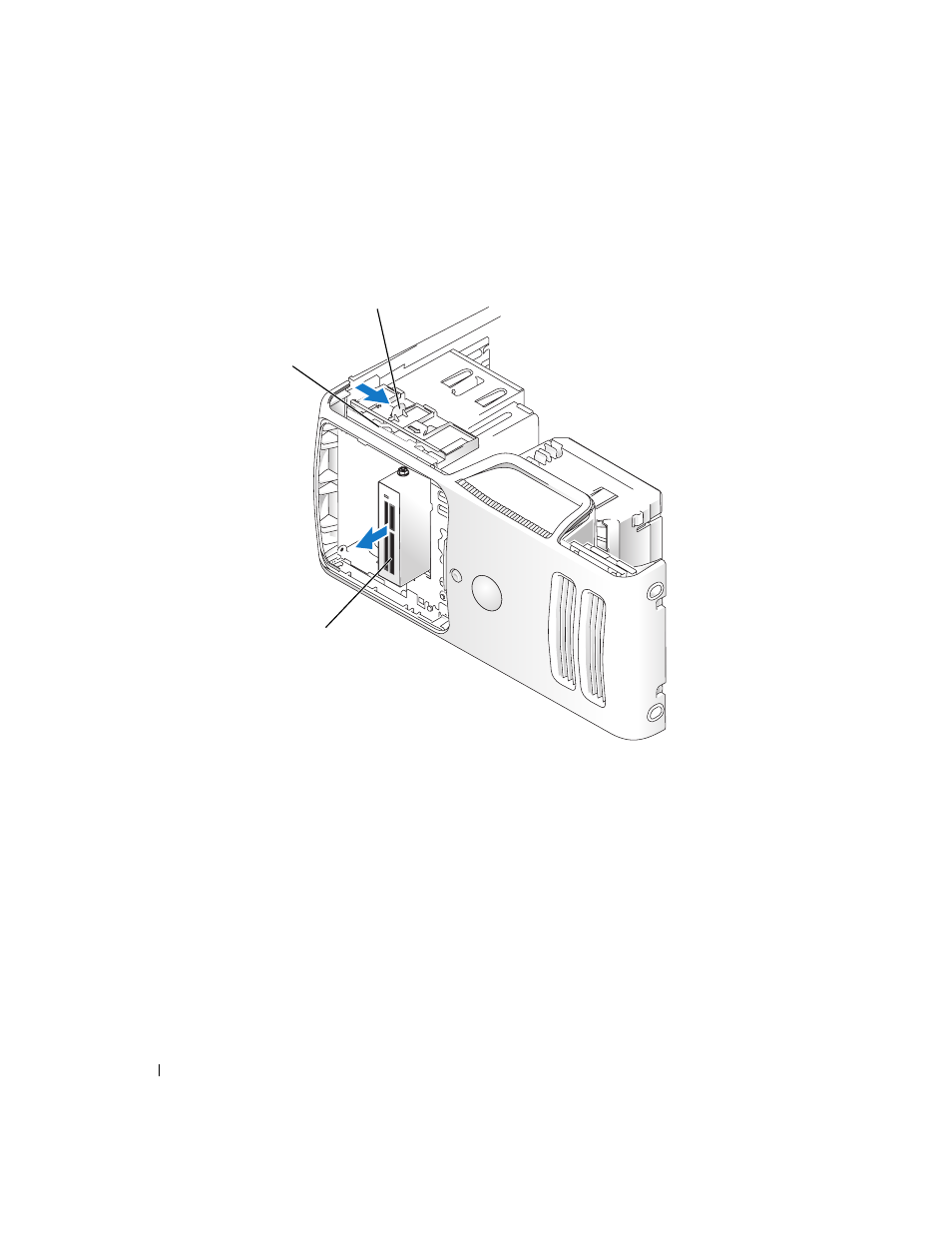

1 drive latch release 2 sliding plate 3 Media Card Reader
