Removing and Installing Parts

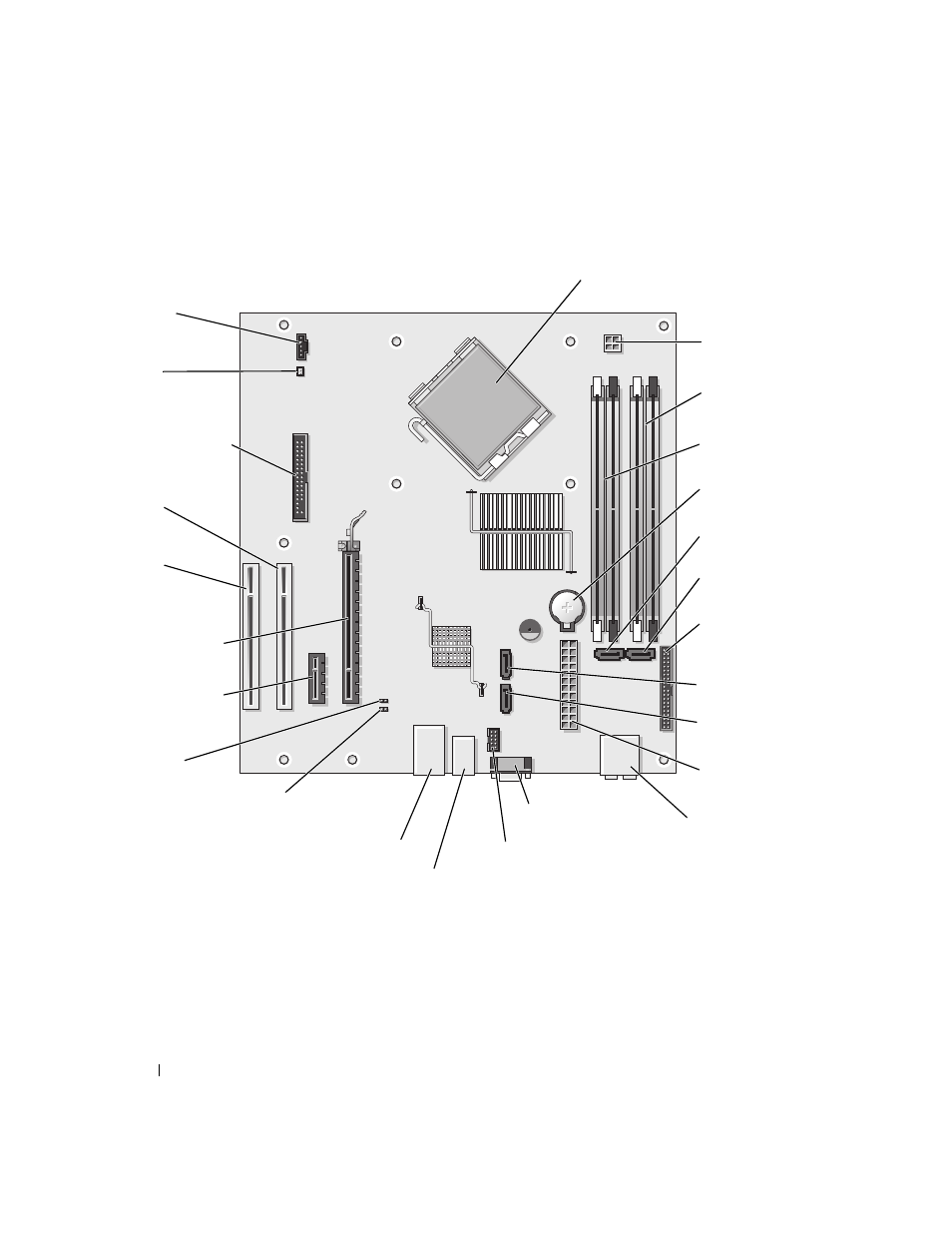

System Board Components
processor connector (CPU)
memory module
connectors (2, 4)
power
connector (12V)
memory module
connectors (1, 3)
power connector
(POWER12V)
clear CMOS
jumper
(CLRCMOS)
SATA connector
(SATA1)
front-panel
connector
(FRNTPANEL)
SATA connector
(SATA0)
optional video
connector (VGA)
line-in-, line-out-,
microphone-, side
surround-, center-,
and LFE connectors
processor fan
connector
(CPUFAN)
floppy drive
connector (FLOPPY)
PCI Express x1
connector (SLOT2)
PCI Express x16
connector (SLOT1)
network connector (NIC)
and USB connectors (2) (USB2)
USB connectors (4) (USBBACK)
battery socket
(BATTERY)
PCI connectors
(SLOT4)
Media Card Reader
connector (USBINT)
air-temperature
sensor connector
(THRM)
password jumper (CLRPSWD)
SATA connector
(SATA4)
SATA connector
(SATA5)
PCI connector
(SLOT3)
