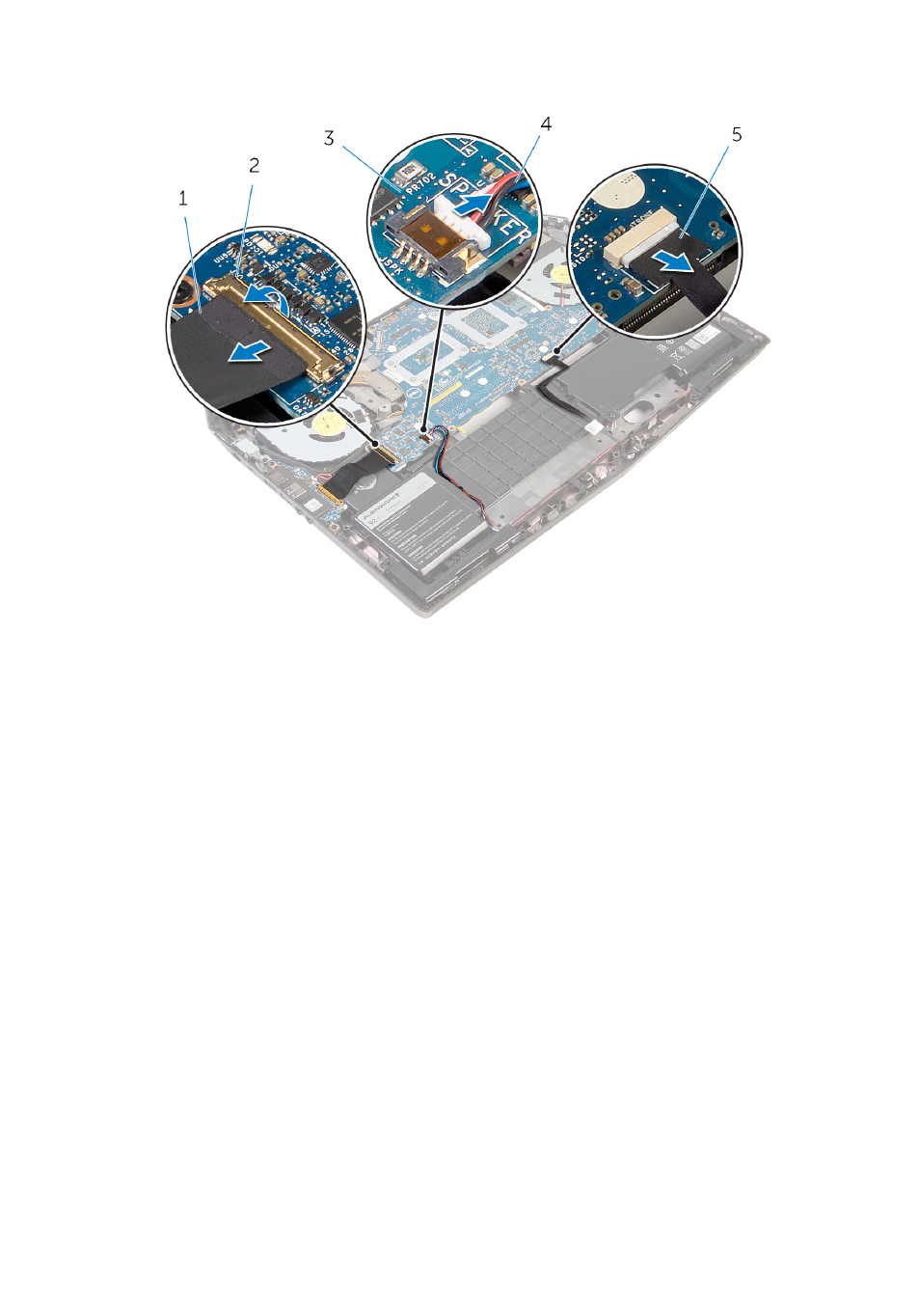

5 Lift the latch and disconnect the I/O-board cable from the system board.

1

I/O-board cable

2

latch

3

system board

4

speaker cable

5

front AlienFX LED cable

6 Remove the screws that secure the system board to the computer base.
