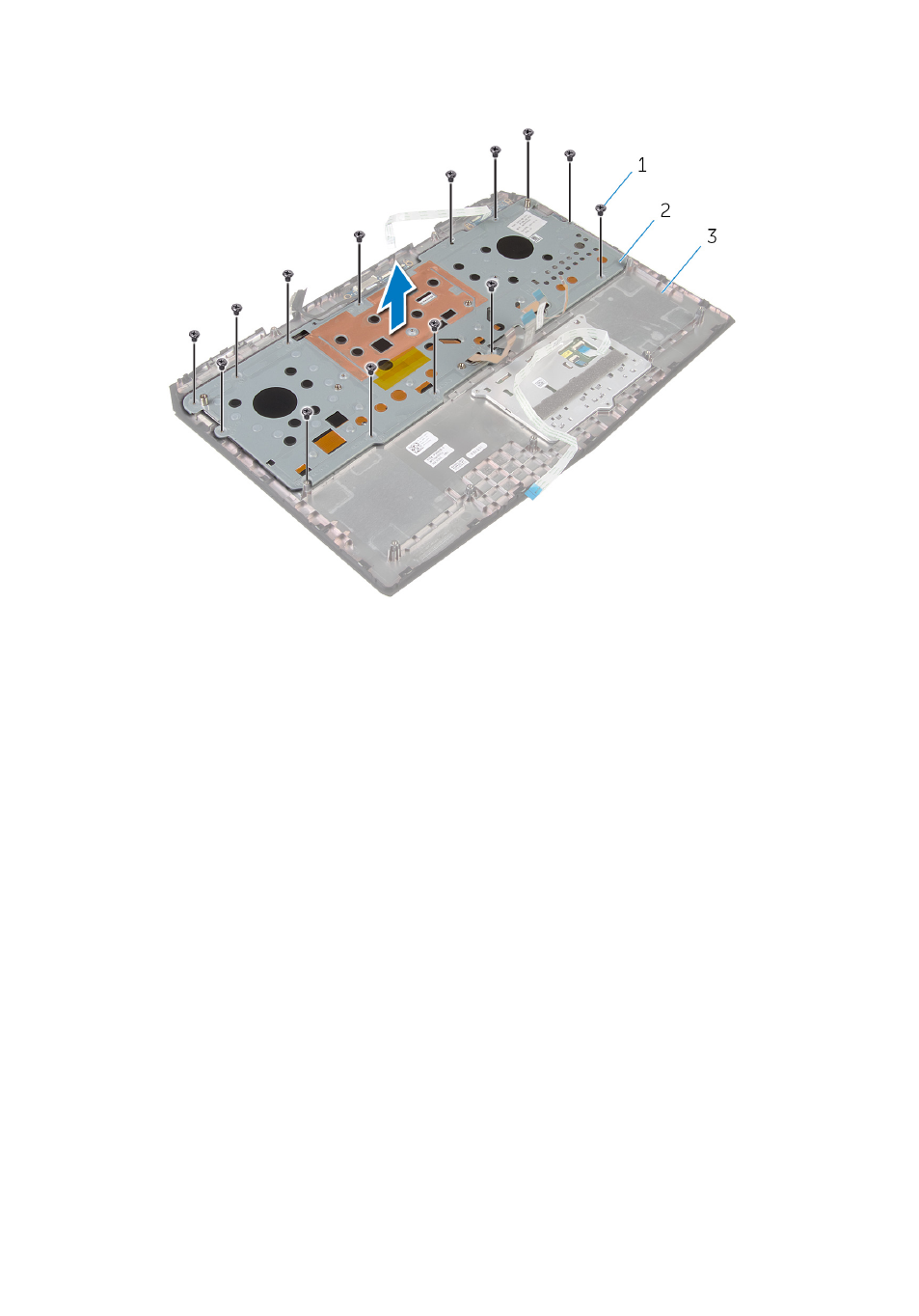

5 Lift the keyboard bracket off the palm-rest assembly.

1

screws (14)

2

keyboard bracket

3

palm-rest assembly

6 Remove the screws that secure the keyboard to the palm-rest assembly.
7 Release the tabs that secure the keyboard to the palm-rest assembly.
