Procedure

1

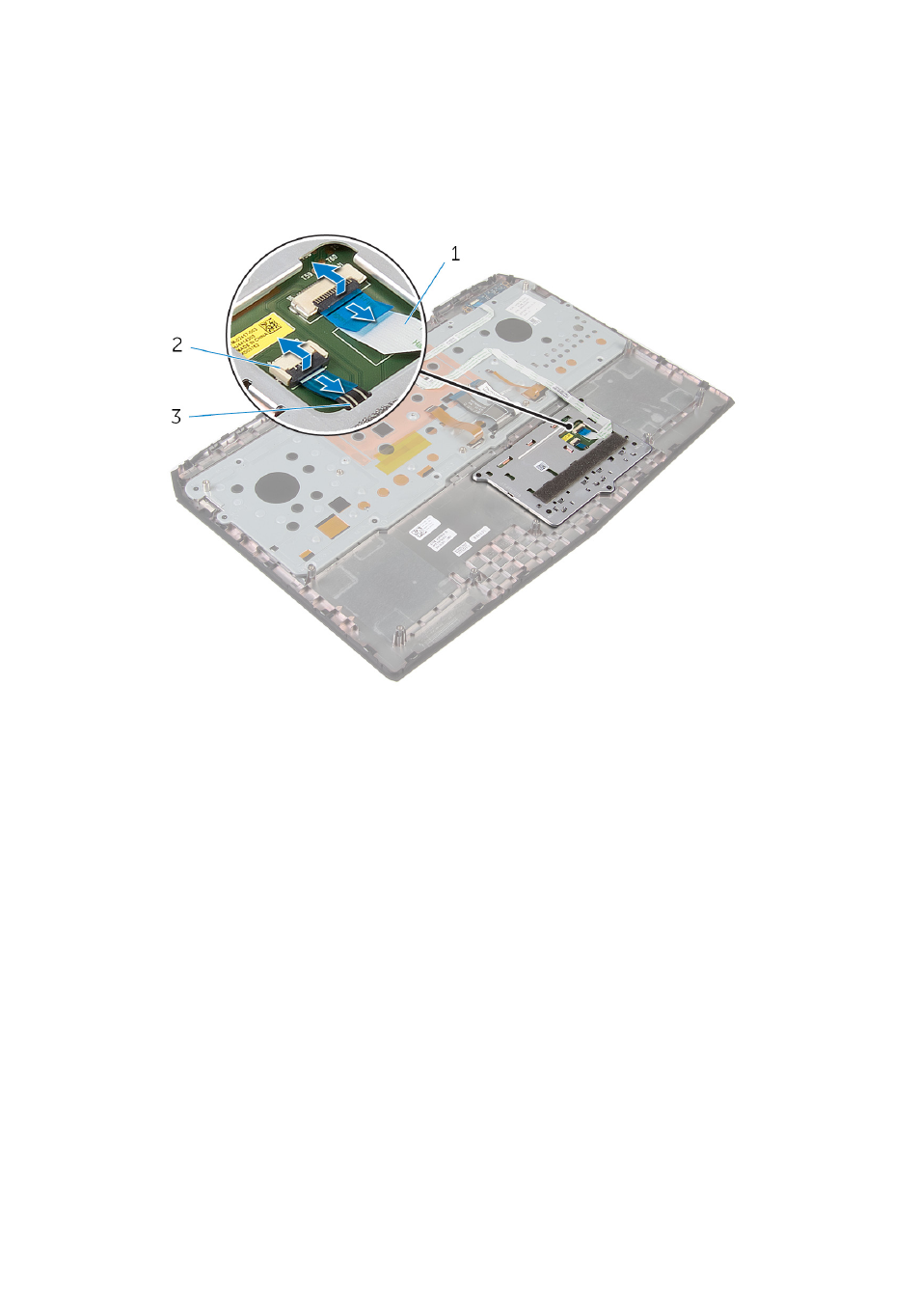

Lift the latches and disconnect the touch-pad cable and touch-pad button
cable from the touch pad.

1

touch-pad cable

2

latches (2)

3

touch-pad button cable

2 Remove the screws that secure the touch-pad button bracket to the palm-

rest assembly.
