62

Installing System Components

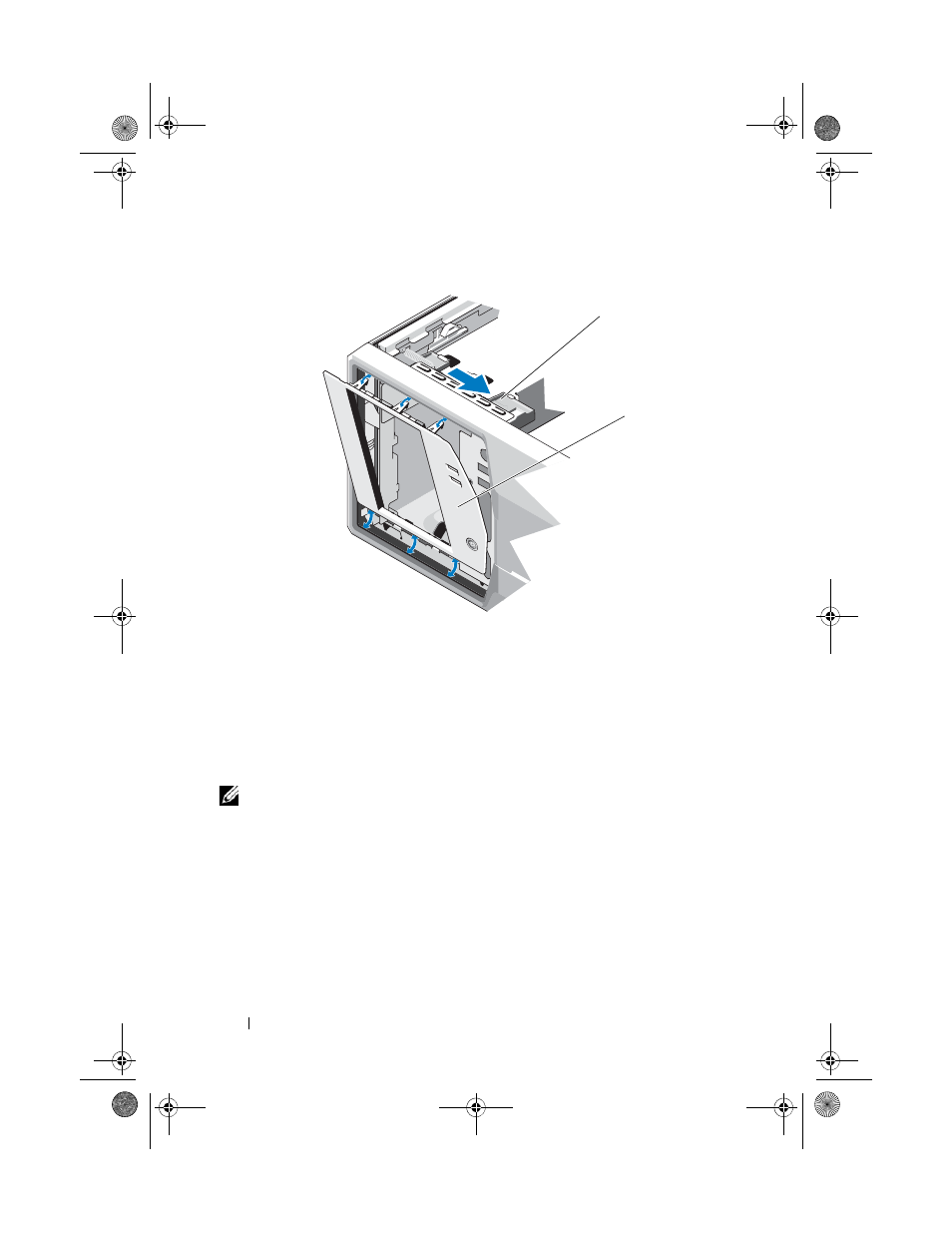

Figure 3-3. Removing and Installing the Front Bezel

Installing the Front Bezel

1 Align the tabs on the front bezel with the slots on the chassis.

See Figure 3-3.

2 Snap the bezel into place.

Removing Front Bezel

Insert

NOTE:

Before installing a drive in one or more of the front drive bays, remove the

corresponding insert(s) on the front bezel.

1 From the back of the bezel, push the tab on the end of the insert outward.
2 Pull the insert away from the bezel. See Figure 3-4.

1

drive release latch

2

front bezel

1

2

Coaster_HOM.book Page 62 Monday, November 3, 2014 3:23 PM
