122 Speaker Cover
14 Pry and remove the speaker cover away from the computer.
Replacing the Speaker Cover
1 Follow the instructions in "Before You Begin" on page 11.
2 Secure the four tabs on the speaker cover to the slots on the chassis.
3 Align the screw holes on the speaker cover with the screw holes on the
chassis.
4 Replace the six screws that secure the speaker cover to the chassis.
5 Replace the middle frame. See "Replacing the Middle Frame" on page 72.
6 Replace the AV board. See "Replacing the Audio Video (AV) Board" on
page 45.
7 Replace the system-board shield. See "Replacing the System-Board Shield"
on page 54.
8 Replace the rear I/O cover. See "Replacing the Rear I/O Cover" on page 40.

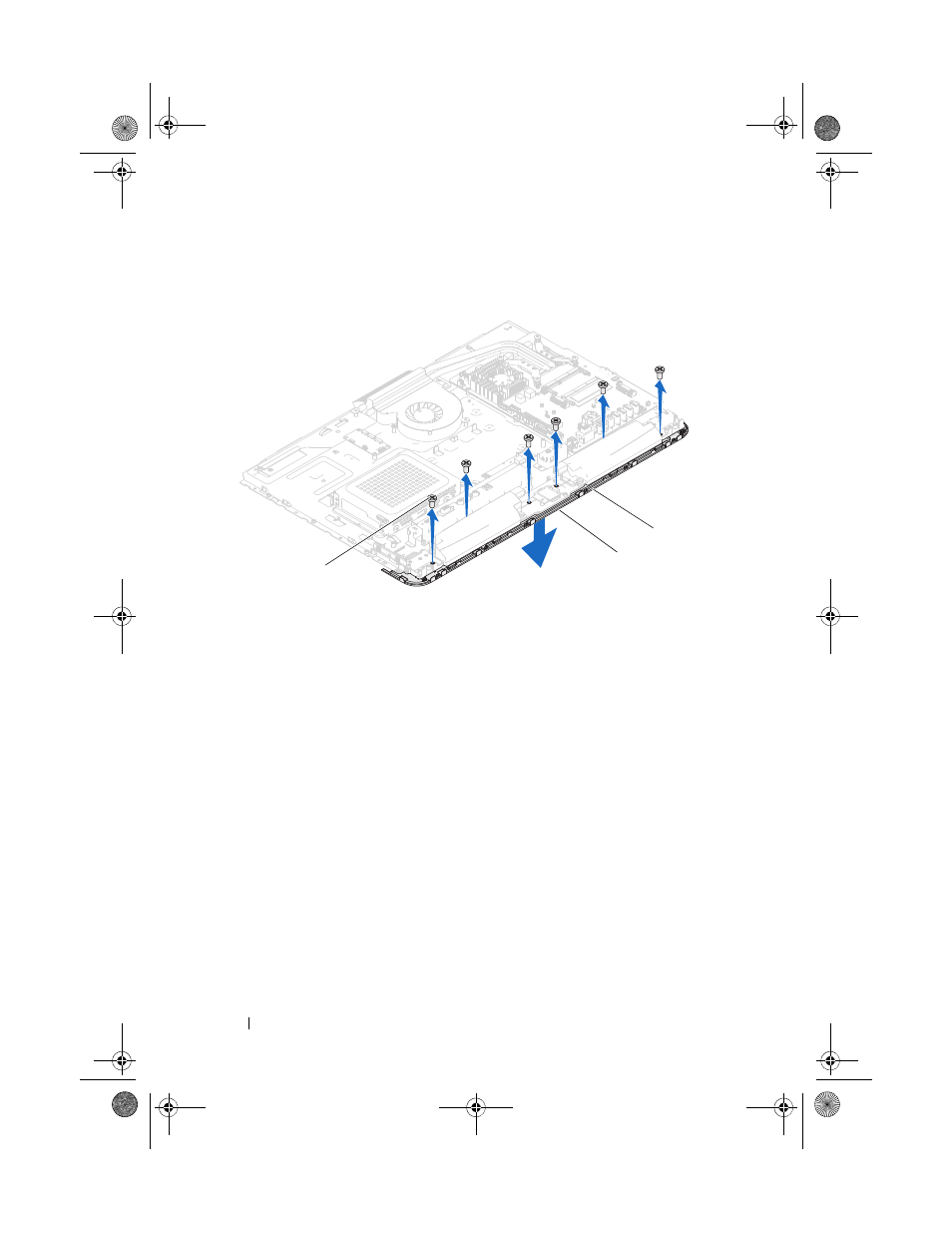

1 speaker cover 2 tabs (4)
3 screws (6)
2
1
3
