Coin-Cell Battery
Dell™ Inspiron™ 1420/Dell Vostro™ 1400 Service Manual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery
Removing the Coin-Cell Battery
1. Follow the procedures in Before You Begin .
2. Turn the computer over.
3. Loosen the captive screws on the coin-cell battery cover and remove the cover.
4. Remove the modem (see Modem ).
5. Disconnect the coin-cell battery cable from the system board.
6. Lift the battery out.
Replacing the Coin-Cell Battery
1. Connect the coin-cell battery cable to the system board.
2. Place the coin-cell battery on the system board in the location marked .
3. Replace the modem (see Modem ).
4. Replace the cover and tighten the captive screws.
Back to Contents Page
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.

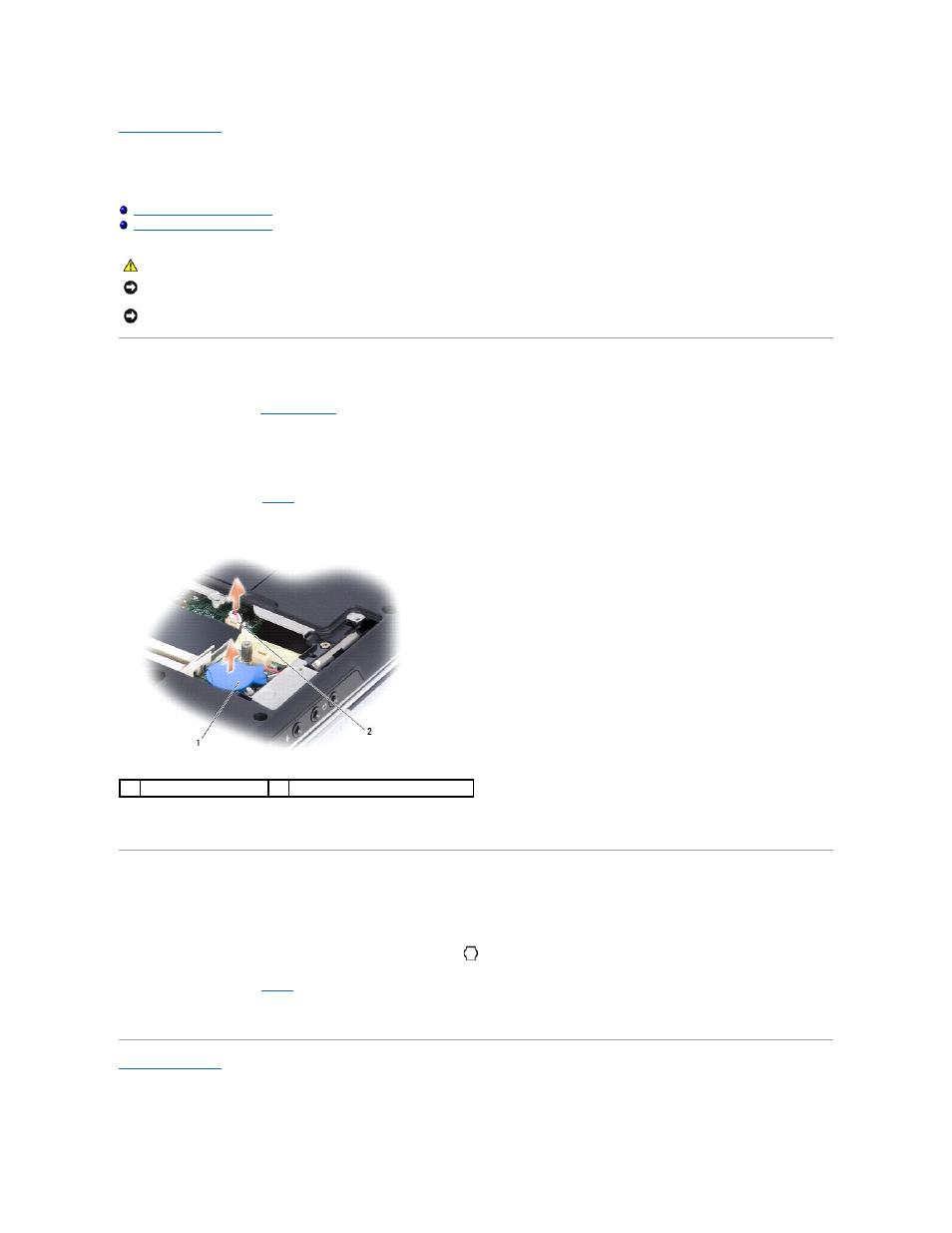

1 coin-cell battery 2 battery cable connector
