Speakers
Dell™ Inspiron™ 1420/Dell Vostro™ 1400 Service Manual
Removing the Speakers
1.
Follow the instructions in
Before You Begin
.
2.
Remove the system board (see
Removing the System Board
).
3.
Disconnect the speaker cable from the system board.
4.
Remove the speaker cable from the cable guide on the base of the computer.
5.
Remove the M2.5 x 5-mm screw securing each of the two speakers to the base of the computer.
6.
Lift the speakers straight up and out of the computer.
Replacing the Speakers
1.
Follow the instructions in
Before You Begin
.
2.
Follow the instructions in
CAUTION:
Before you perform any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface, such
as the back panel on the computer.

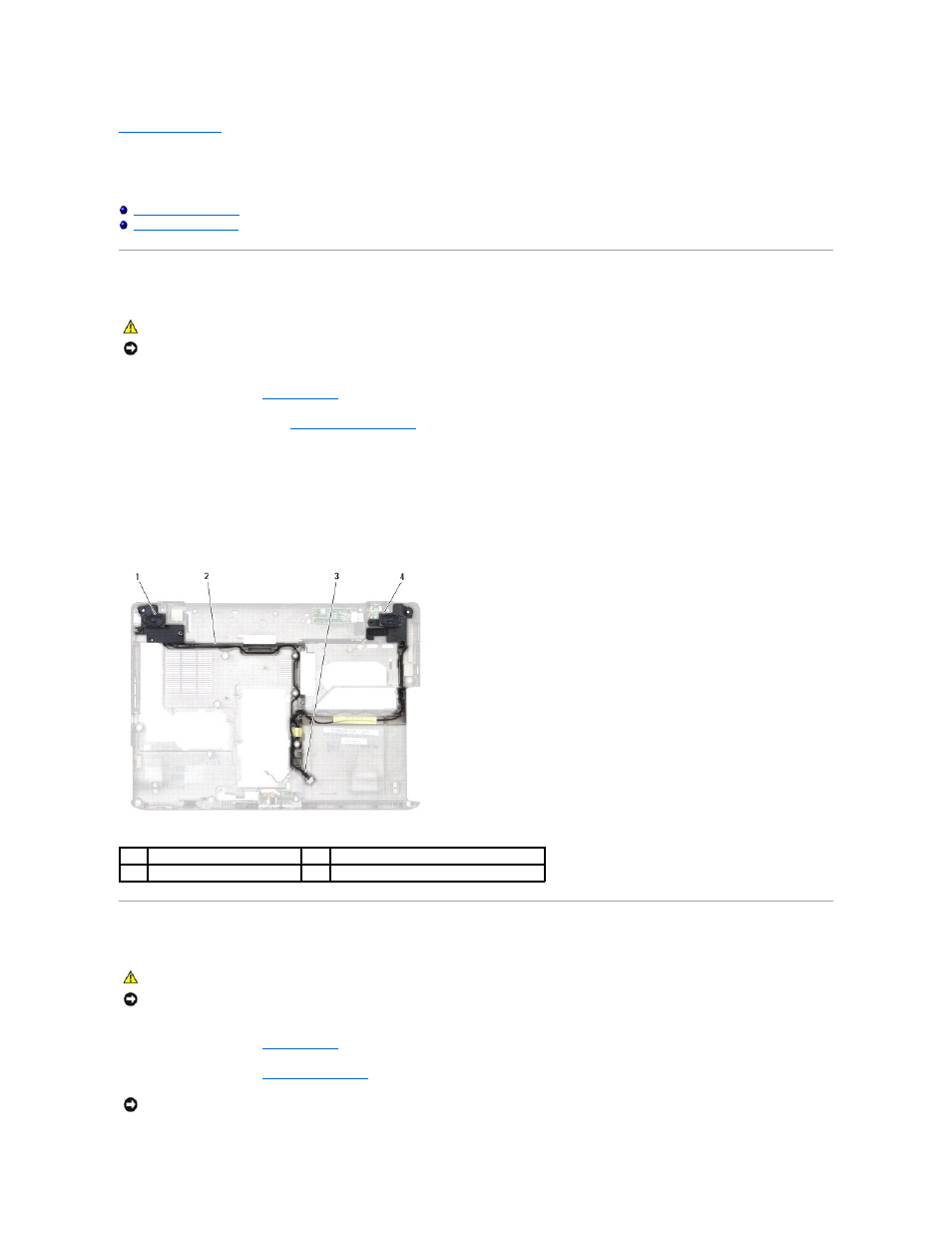

1
speaker (left)
2
speaker cable guide
3
speaker cable
4
speaker (right)
CAUTION:
Before you perform any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface, such
as the back panel on the computer.
NOTICE:
Exercise care when handling or replacing the speakers.
