Microprocessor Thermal-Cooling Assembly
Dell™ Inspiron™ 1420/Dell Vostro™ 1400 Service Manual
Removing the Microprocessor Thermal-Cooling Assembly
Replacing the Microprocessor Thermal-Cooling Assembly

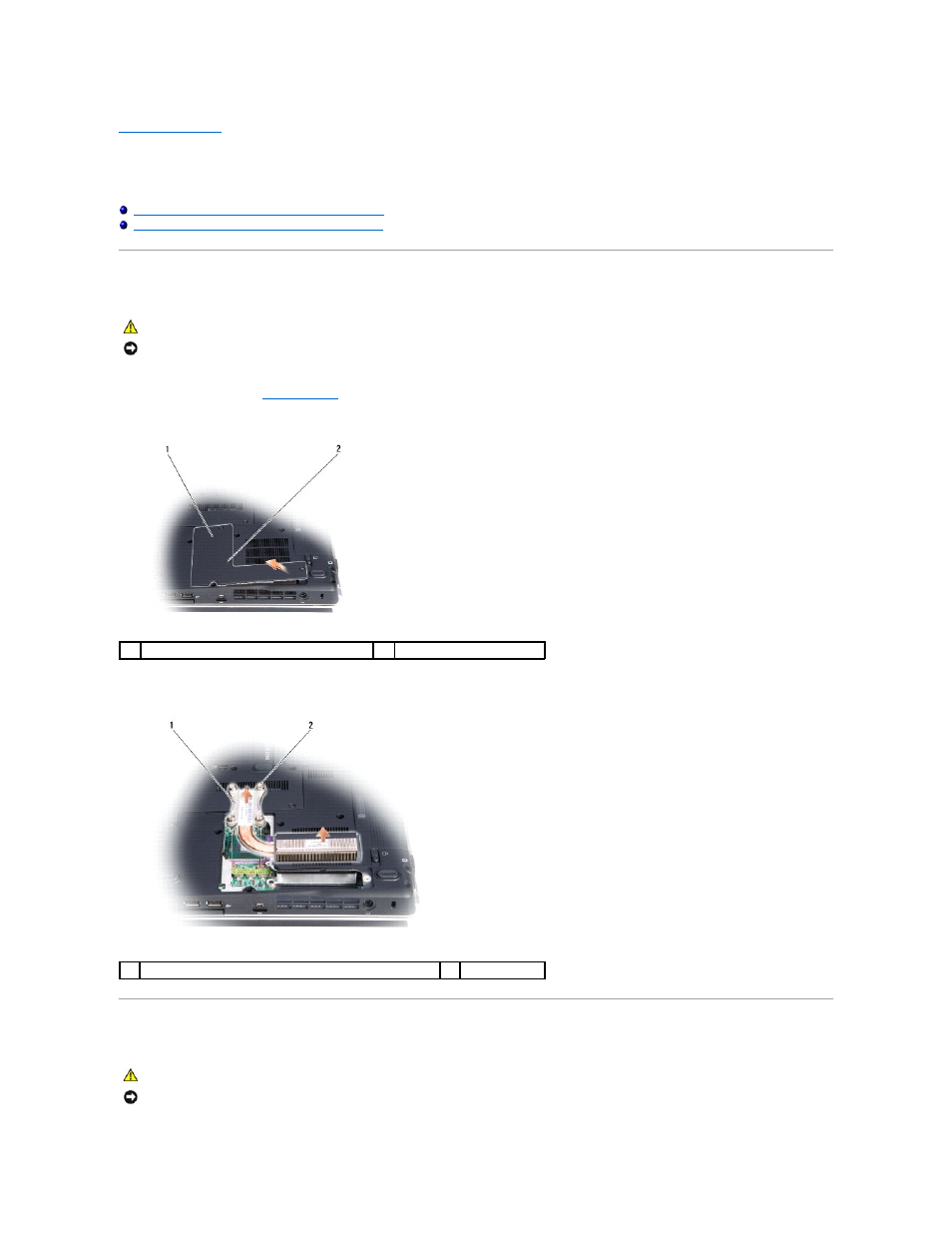

Removing the Microprocessor Thermal-Cooling Assembly
1.
Follow the instructions in
Before You Begin
.
2.
Loosen the three captive screws securing the microprocessor module cover, then remove the cover and set it aside.
3.
Loosen the four captive screws securing the microprocessor thermal- cooling assembly to the system board, then carefully lift the assembly straight out
of the computer.
Replacing the Microprocessor Thermal-Cooling Assembly
CAUTION:
Before you perform any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface, such
as the back panel on the computer.
1
microprocessor module cover
2
captive screws (3)
1
microprocessor thermal-cooling assembly
2
screws (4)
CAUTION:
Before you perform any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface, such
as the back panel on the computer.
