Camera Module
Dell™ Inspiron™ 1420/Dell Vostro™ 1400 Service Manual
Removing and Replacing the Camera Module
Removing and Replacing the Camera Module
1.
Follow the instructions in
Before You Begin
.
2.
Remove the display bezel (see
Removing the Display Bezel
).
3.
Lift the cable securing tab and gently pull the camera module cable from the connector.
4.
Remove the two M2 x 3-mm screws securing camera module to the display assembly.
5.
Gently lift the camera module.
6.
Install the replacement camera and tighten the two M2 x 3-mm screws.
7.
Insert the camera module cable in the connector and press down the securing tab.
8.
Replace the display bezel (see
Replacing the Display Bezel
).
Back to Contents Page
CAUTION:
Before you perform any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface, such
as the back panel on the computer.

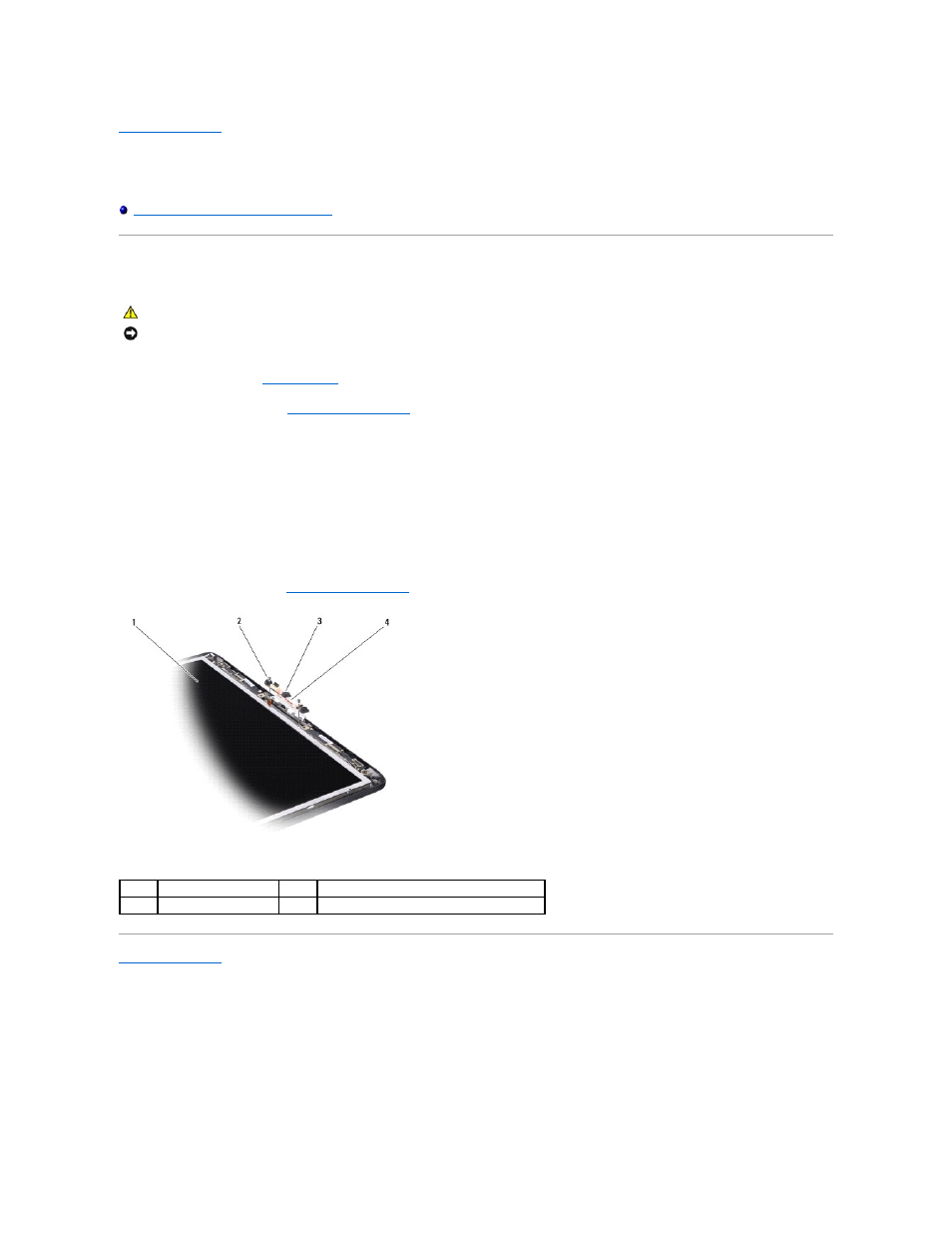

1
display
2
screws (2)
3
camera
4
camera module
