System-Board Shield
Dell™ Inspiron™ One 19 Service Manual
Removing the System-Board Shield
Replacing the System-Board Shield
Removing the System-Board Shield
1. Follow the procedures in Before You Begin .
2. Remove the I/O cover (see Removing the I/O Cover ).
3. Remove the computer stand (see Removing the Computer Stand ).
4. Remove the optical drive (see Removing the Optical Drive ).
5. Remove the decorative cover (see Removing the Decorative Cover ).
6. Remove the speaker cover (see Removing the Speaker Cover ).
7. Remove the display bezel (see Removing the Display Bezel ).
8. Remove the back cover (see Removing the Back Cover ).
9. Remove the I/O bracket (see Removing the I/O Bracket ).
10. Remove the inverter (see Removing the Inverter ).
11. Remove the three screws that secure the system-board shield to the chassis.
12. Remove the system-board shield by releasing the securing clips that secure the tabs on the system-board shield.
13. Lift the system-board shield out of the chassis.
Replacing the System-Board Shield
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).

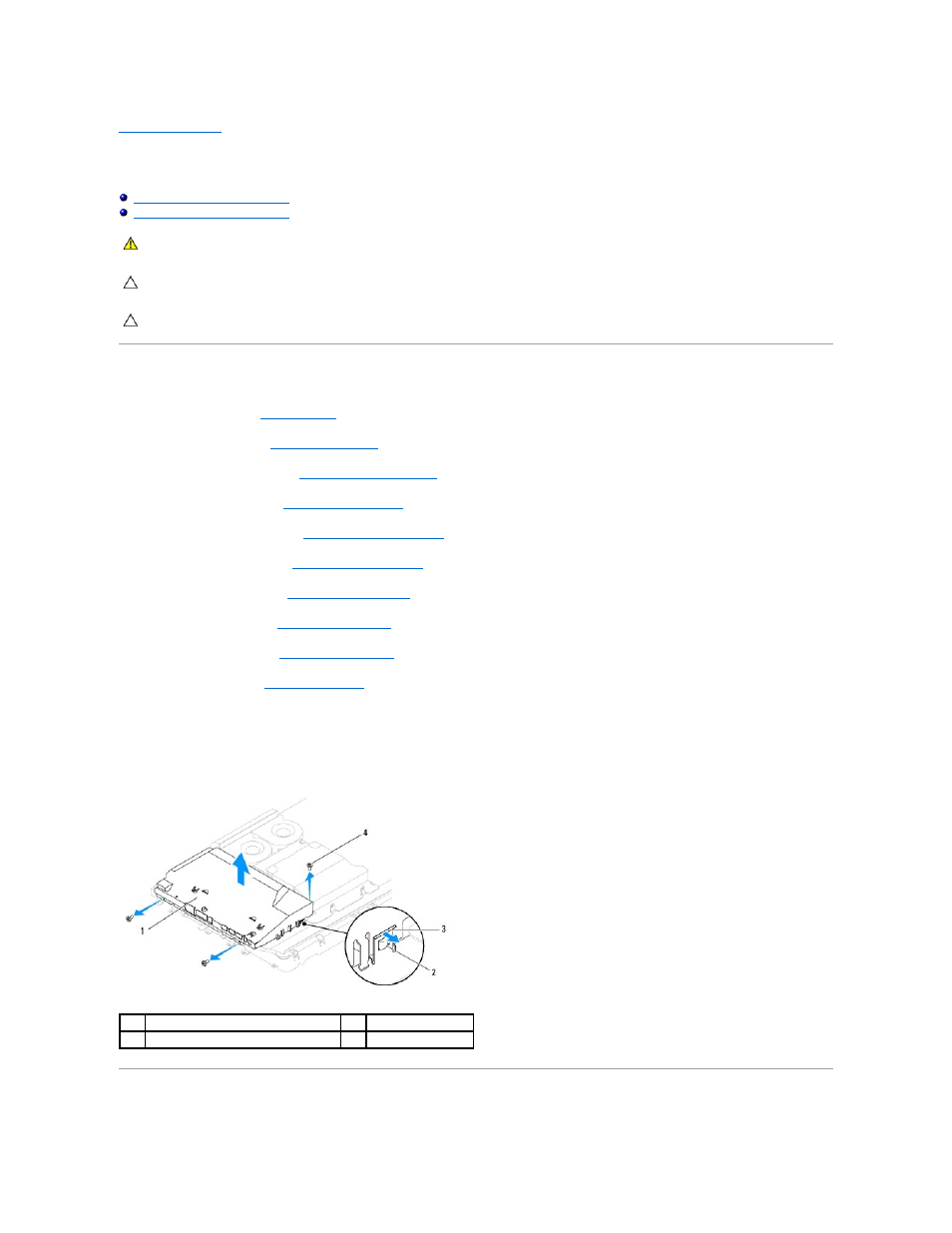

1 system-board shield 2 tabs (2)
3 securing clips (2) 4 screws (3)
